Key Unlock Warning Switch Circuit: Wiring Diagram

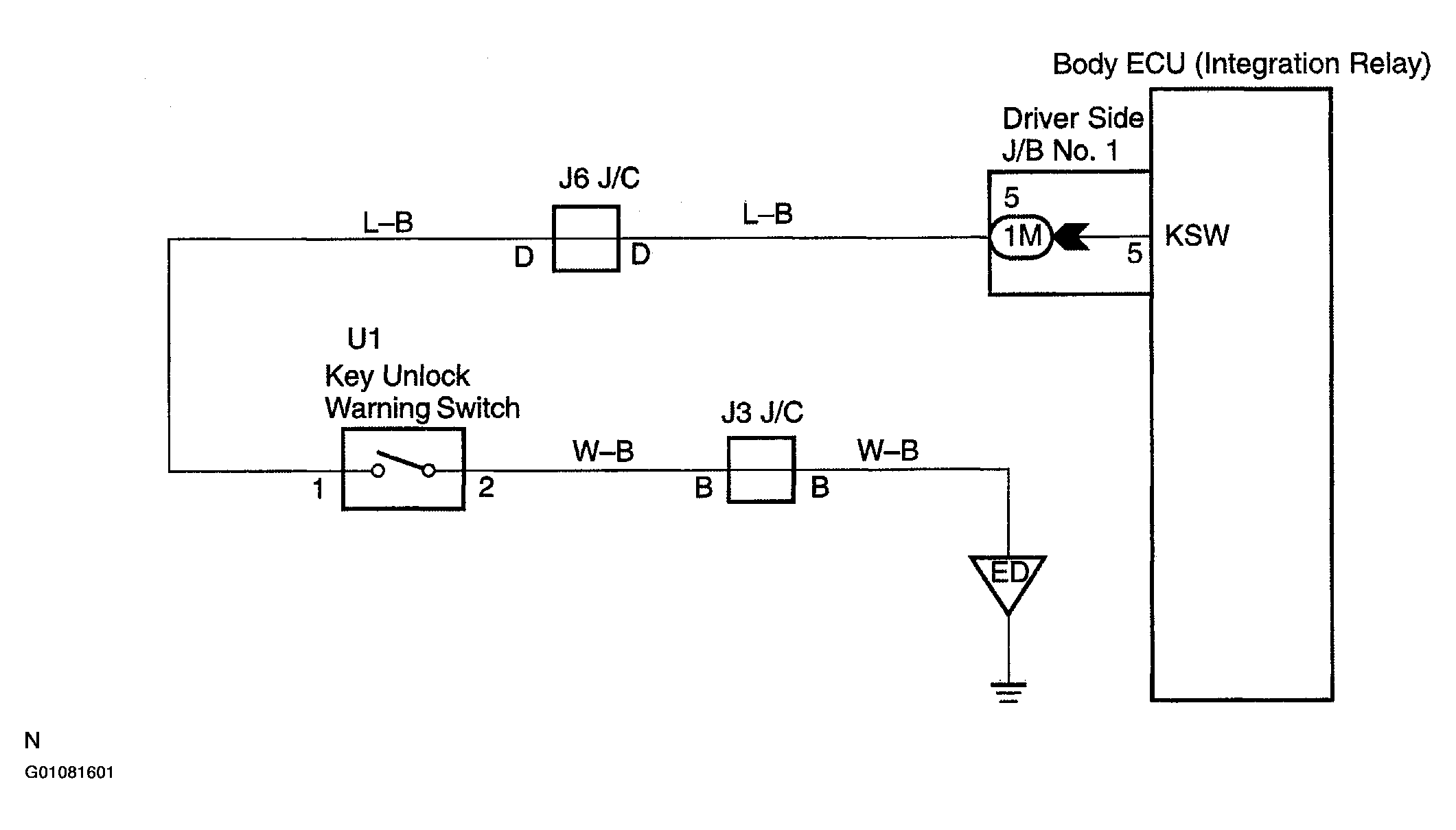

Fig 1: Key Unlock Warning Switch Circuit

G01081601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
