Ignition Switch And Key Unlock Warning Switch: Inspection

Inspect ignition switch continuity

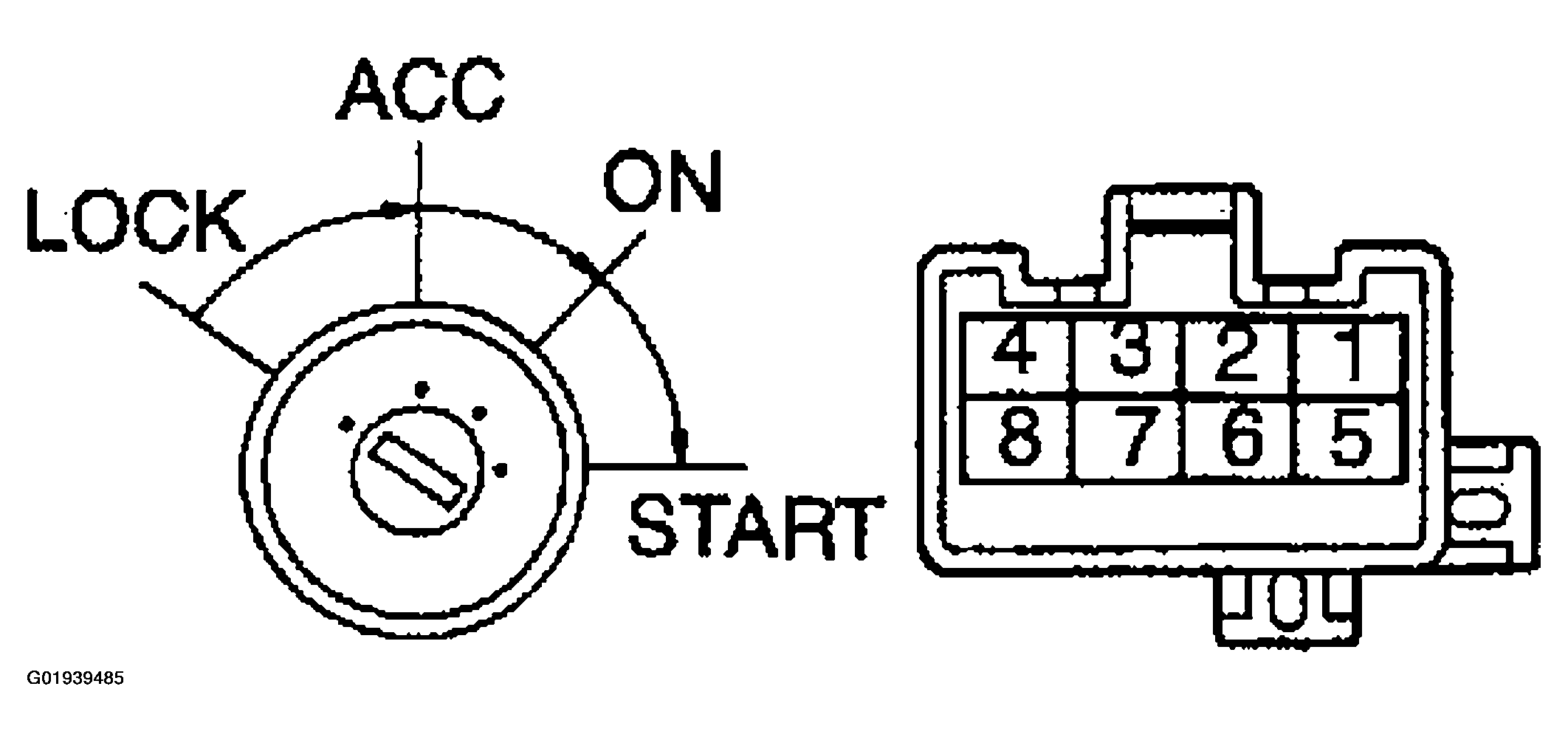

Fig 1: Testing Ignition Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

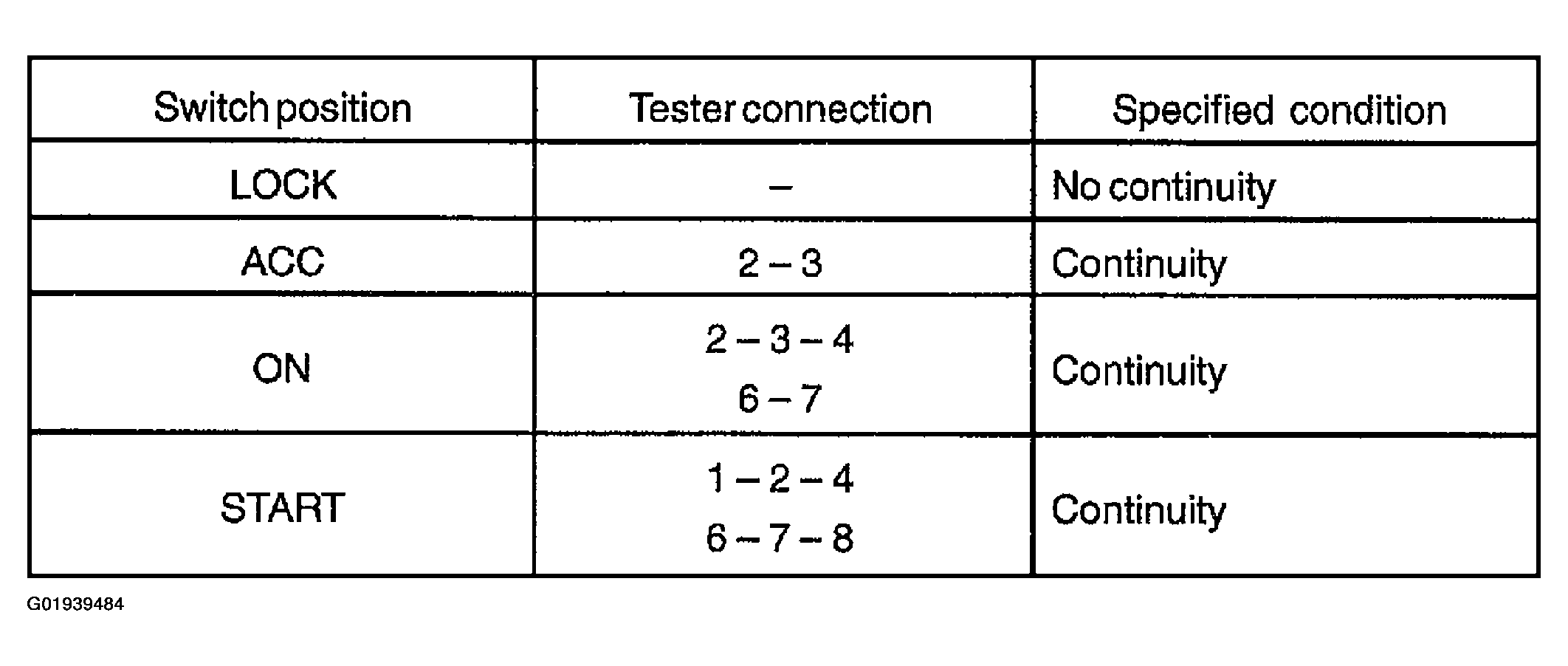

Fig 2: Ignition Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
Inspect key unlock warning switch continuity

Fig 3: Testing Key Unlock Warning Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

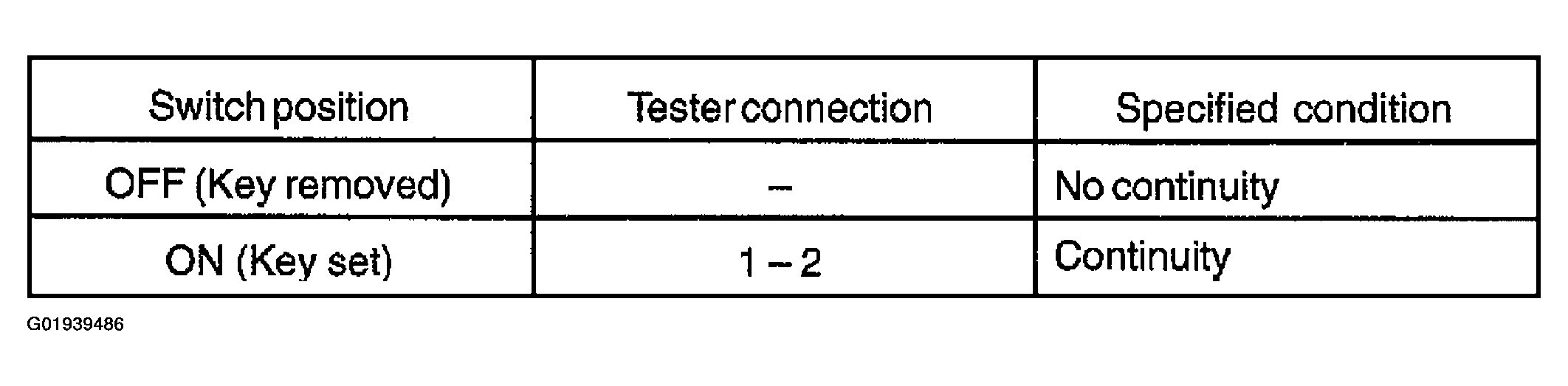

Fig 4: Key Unlock Warning Switch Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the switch.
