Column Shift Assembly: Removal

  1. Remove Steering Column Assembly  See REMOVAL in STEERING COLUMN.

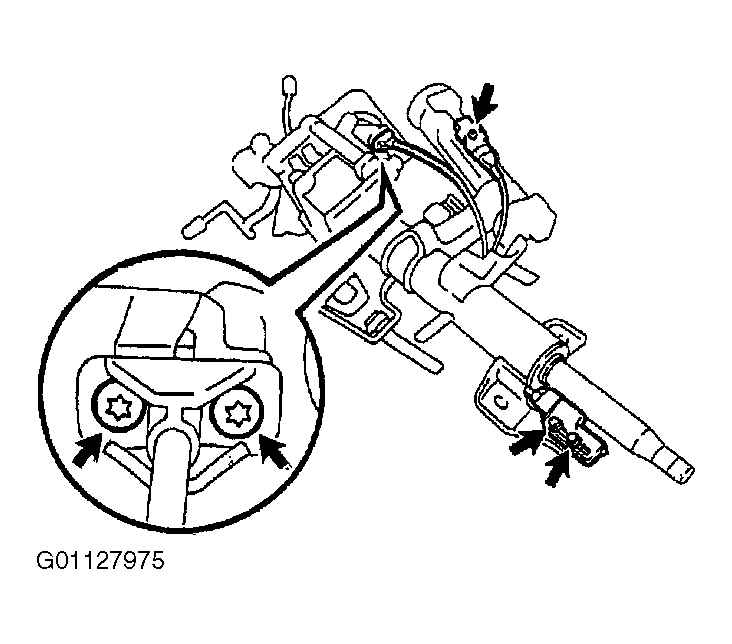

    Fig 1: Locating Parking Lock Cable No. 1 Mounting Screws
    G01127975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove Parking Lock Cable Assembly  :
    1. Remove the screw and parking lock cable No. 2.
    2. Using a Torx socket wrench, remove the 2 screws and parking lock cable No. 1. See Fig 1.
    3. Remove the spring.
    4. Remove the 2 bolts and parking lock cable housing.
  3. Remove Shift Lever  :
    1. Disconnect the connector.
    2. Using a Torx socket wrench, remove the Torx screw and shift lever.
    3. Remove the upper No. 2 steering column cover.
  4. Remove Shift Lever Housing  .

    Using a Torx socket wrench, remove the 3 Torx screws and shift lever housing.
