Column Shift Assembly: Components

For Locating of column shift assembly components, see illustrations. See Fig 1 and Fig 2 .

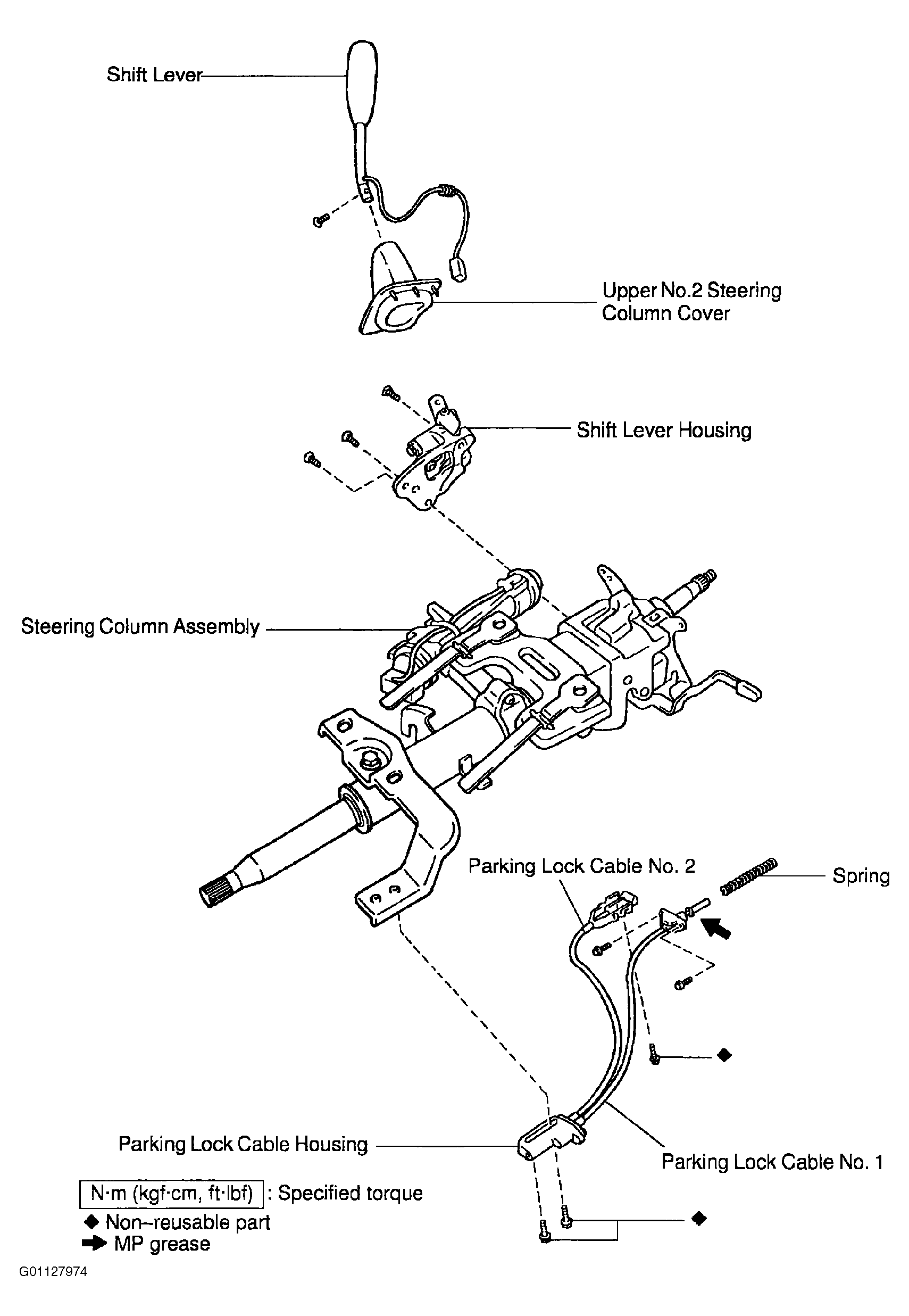

Fig 1: Column Shift Assembly Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

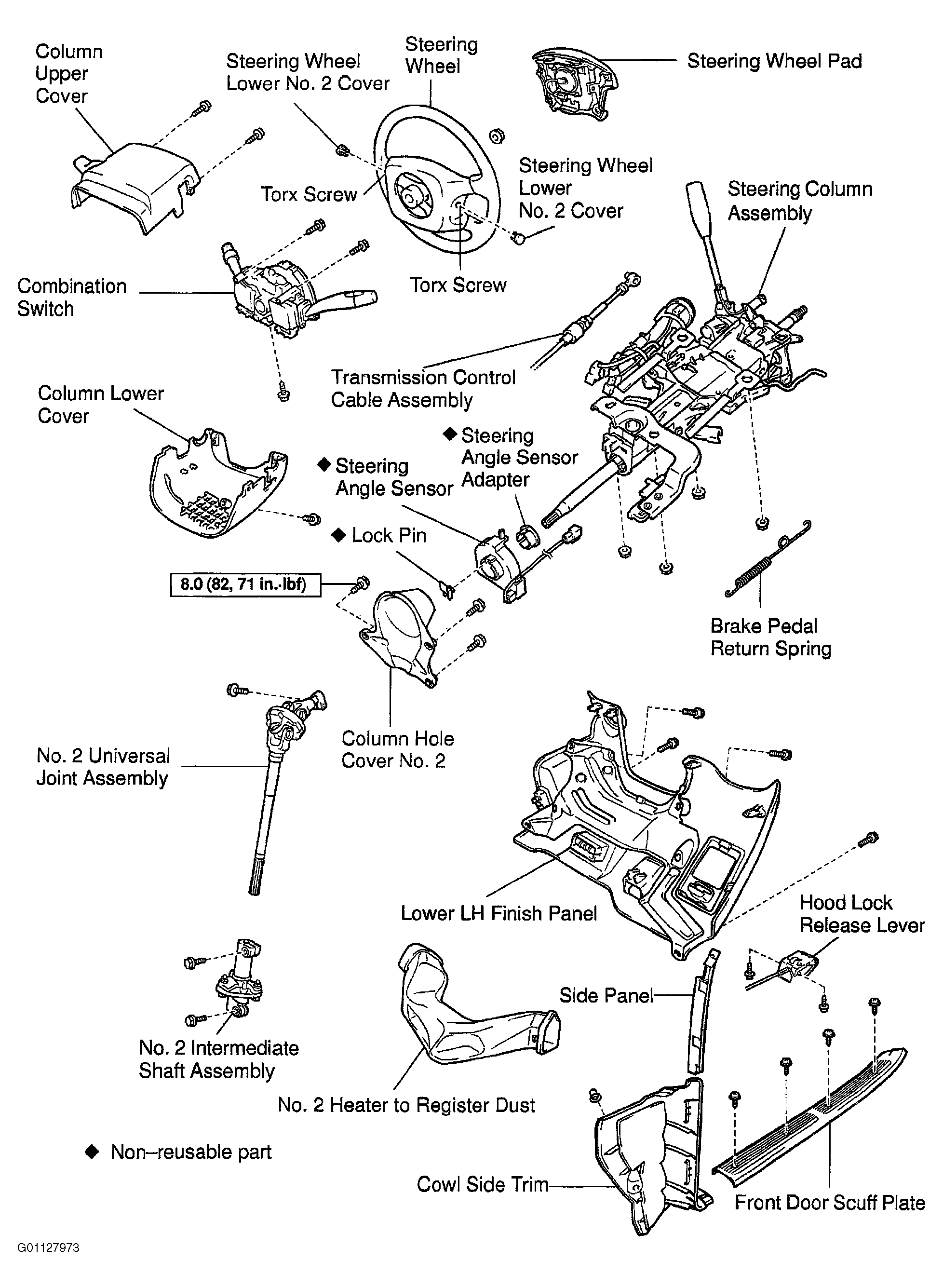

Fig 2: Column Shift Assembly Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
