On-Vehicle Repair

Disconnect ATF Temperature Sensor Connector .
Remove ATF Temperature Sensor :
1. Remove the ATF temperature sensor. See Fig 1.
2. Remove the "O" ring from the ATF temperature sensor.

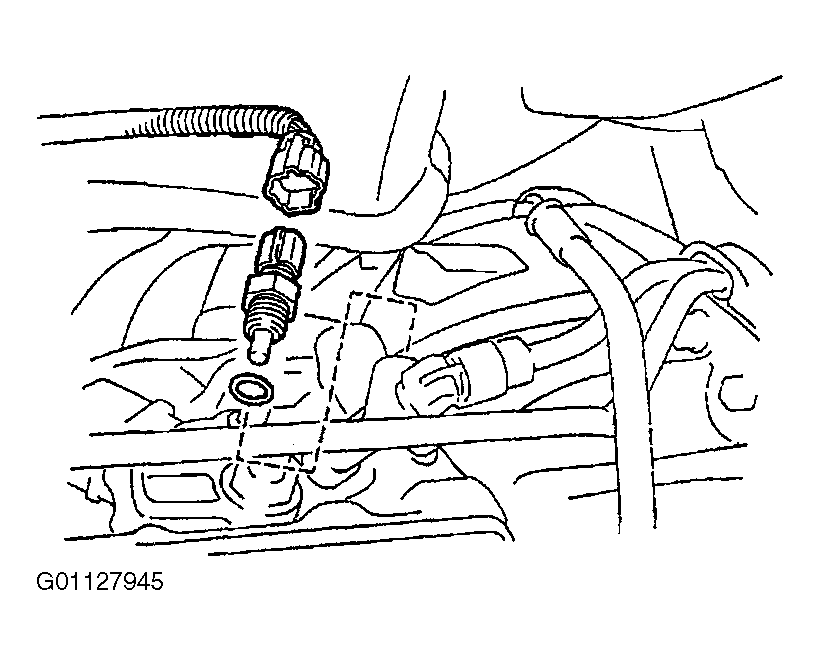

Fig 1: Exploded View Of ATF Temperature Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install ATF Temperature Sensor :
1. Coat a new "O" ring with ATF and install it to the ATF temperature sensor.
2. Install the ATF temperature sensor.
  Torque: 15 N.m (150 kgf.cm, 11 ft.lbf)

NOTE: Be careful not to twist the wire harness.

Connect ATF Temperature Sensor Connector .
Install the 3 clamps with the 3 bolts. See Fig 2.
FILL ATF AND CHECK FLUID LEVEL .

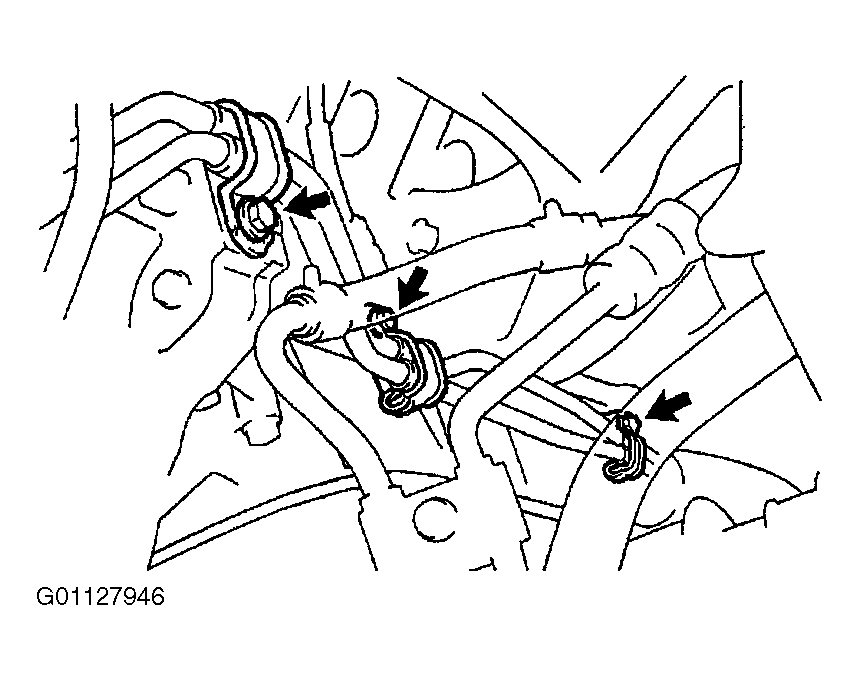

Fig 2: Locating Transmission Pipe Clamps
