Vehicle Lift And Support Locations

For lifting and support locations, see Fig 1.

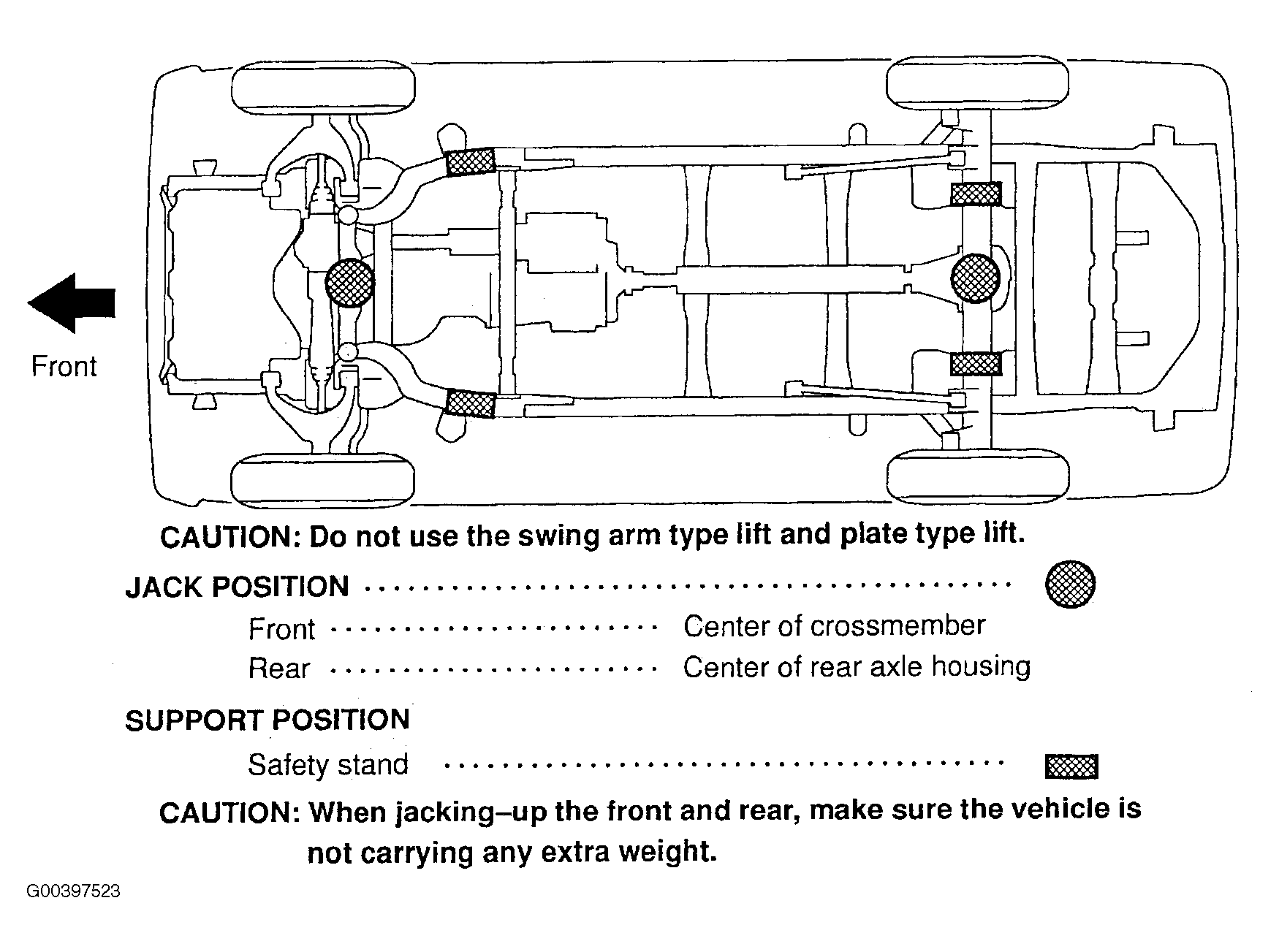

Fig 1: Identifying Vehicle Lifting & Support Points

G00397523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
