Inspect Camshaft Position Sensor

Disconnect the camshaft position sensor connector.

Fig 1: Inspecting & Setting Spark Plug Gap
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

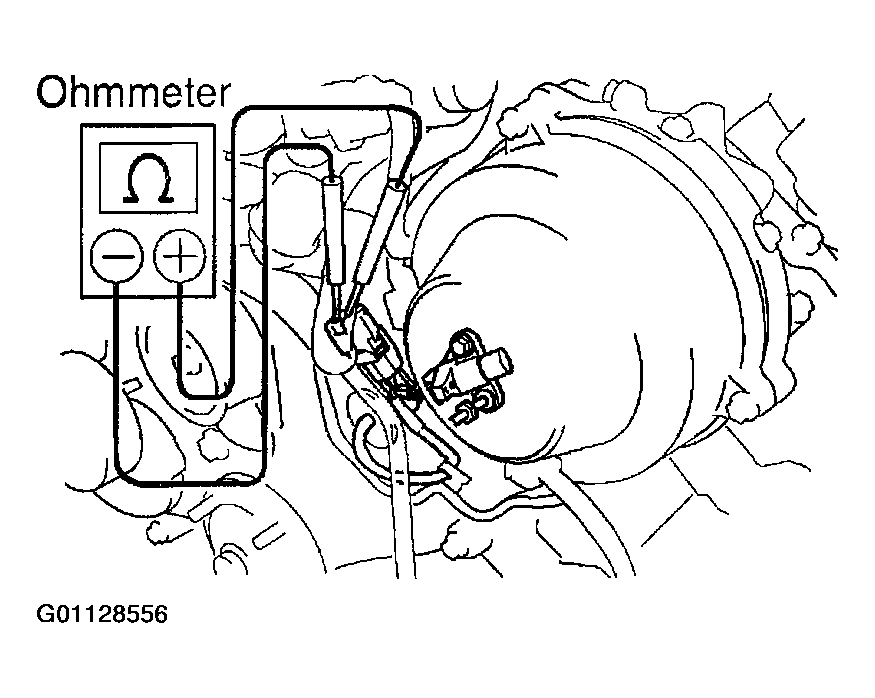

Using an ohmmeter, measure the resistance between terminals.

Fig 2: Measuring Camshaft Position Sensor Resistance
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Camshaft Position Sensor Resistance Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the resistance is not as specified, replace the camshaft position sensor.
Reconnect the camshaft position sensor connector.
