Parts Layout And Schematic Drawing: Location

For emission control component locations, see illustration. See Fig 1.

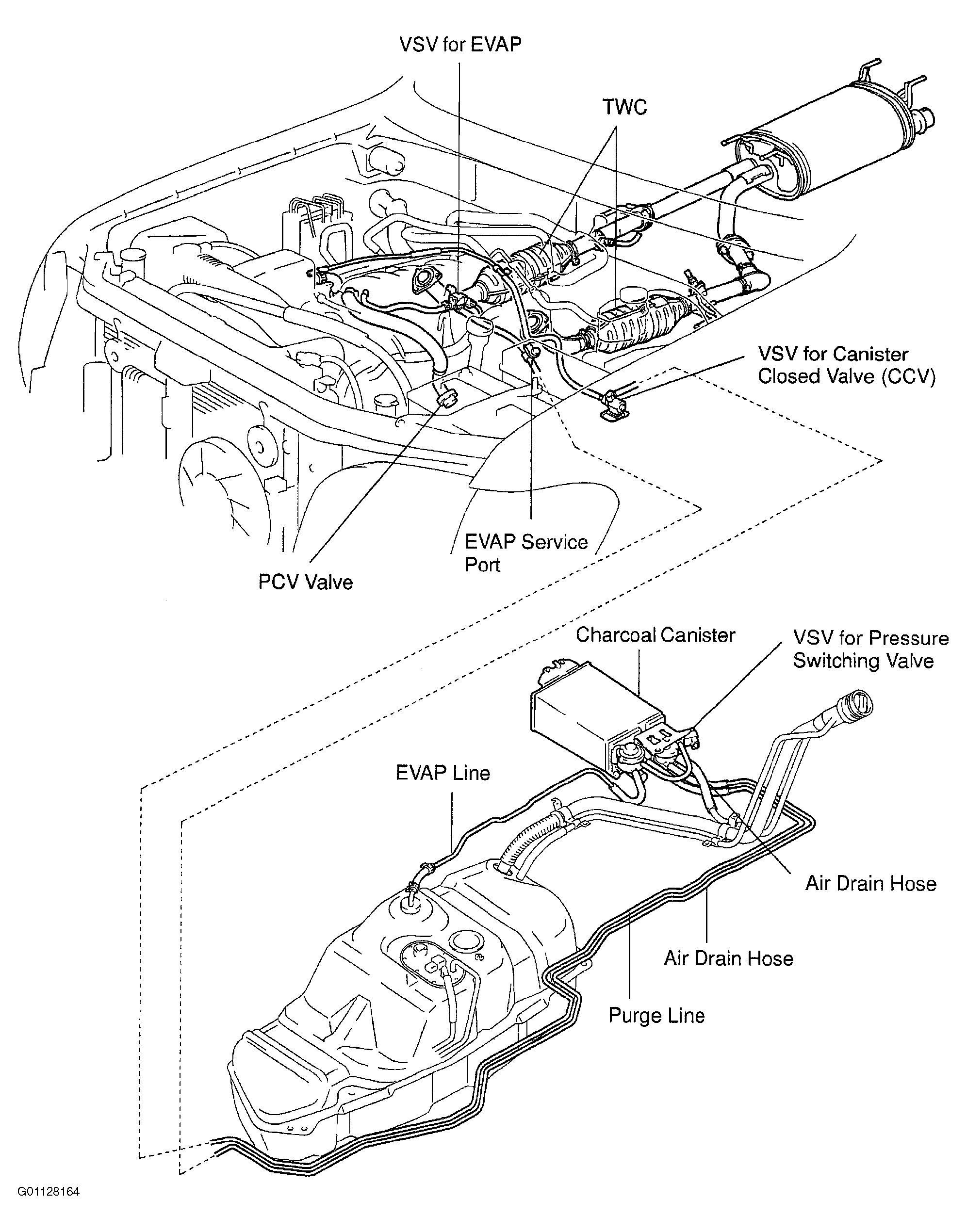

Fig 1: Locating Emission Control Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
