Inspect Radio Receiver Assembly Circuit

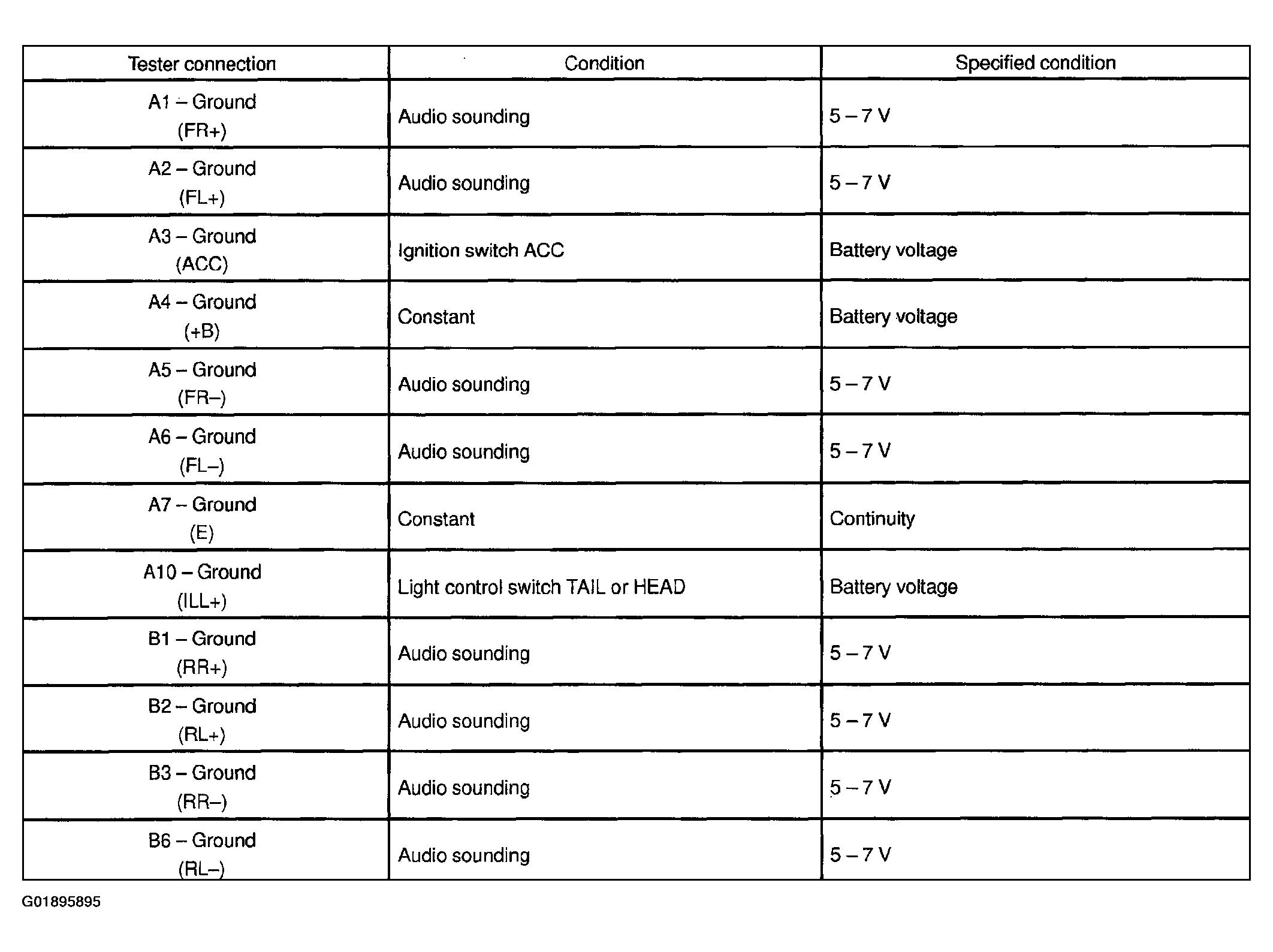

Disconnect the connectors from the radio receiver assembly, and inspect the connector on the wire harness side.
Fig 1: Identifying Connector A & B Terminals For Radio Receiver W/O Power Amplifier (Wire Harness Side)
If the circuit is not as specified, inspect the circuits connected to other parts.
