| ABS Actuator-To-Body |
14 (19) |
| A/C Compressor |
18 (25) |
| Belt Tensioner-To-Engine Block |
44 (60) |

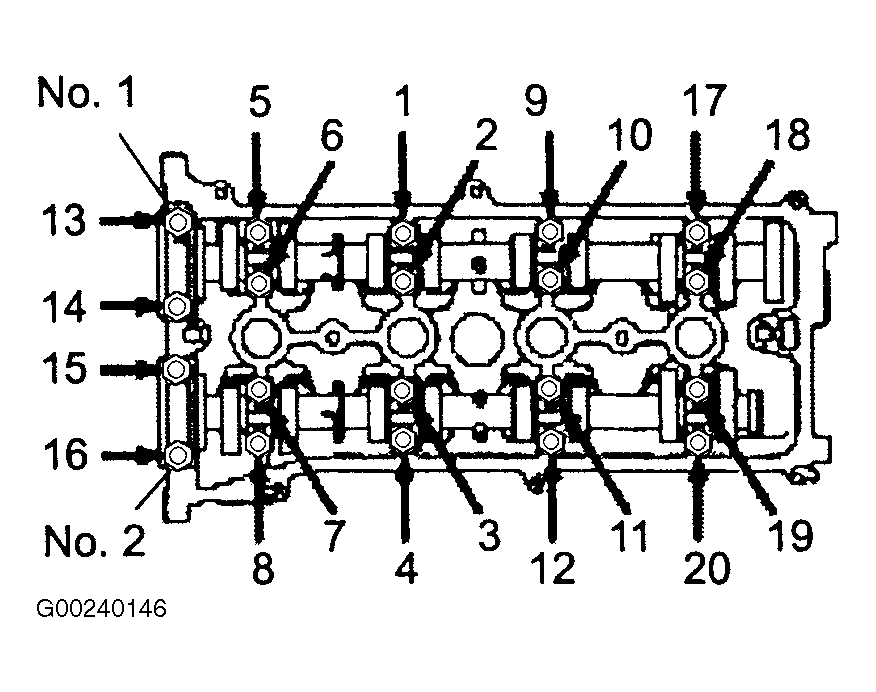

| Camshaft Bearing Cap Bolts |
| Bearing Cap No. 1 & No. 2 |
22 (30) |
| All Others |
|
| Camshaft Sprocket Bolt |
40 (54) |
| Center Bearing Bracket (2WD) |
25 (34) |
| Chain Tensioner Slipper Bolt |
14 (19) |
| Connecting Rod Bearing Cap |
| Step 1 |
18 (25) |
| Step 2 |
|
| Coolant Drain Union |
18 (25) |
| Coolant Temperature Sensor |
15 (20) |
| Crankcase-To-Cylinder Block Bolt |
24 (33) |
| Crankshaft Pulley Bolt |
125 (170) |

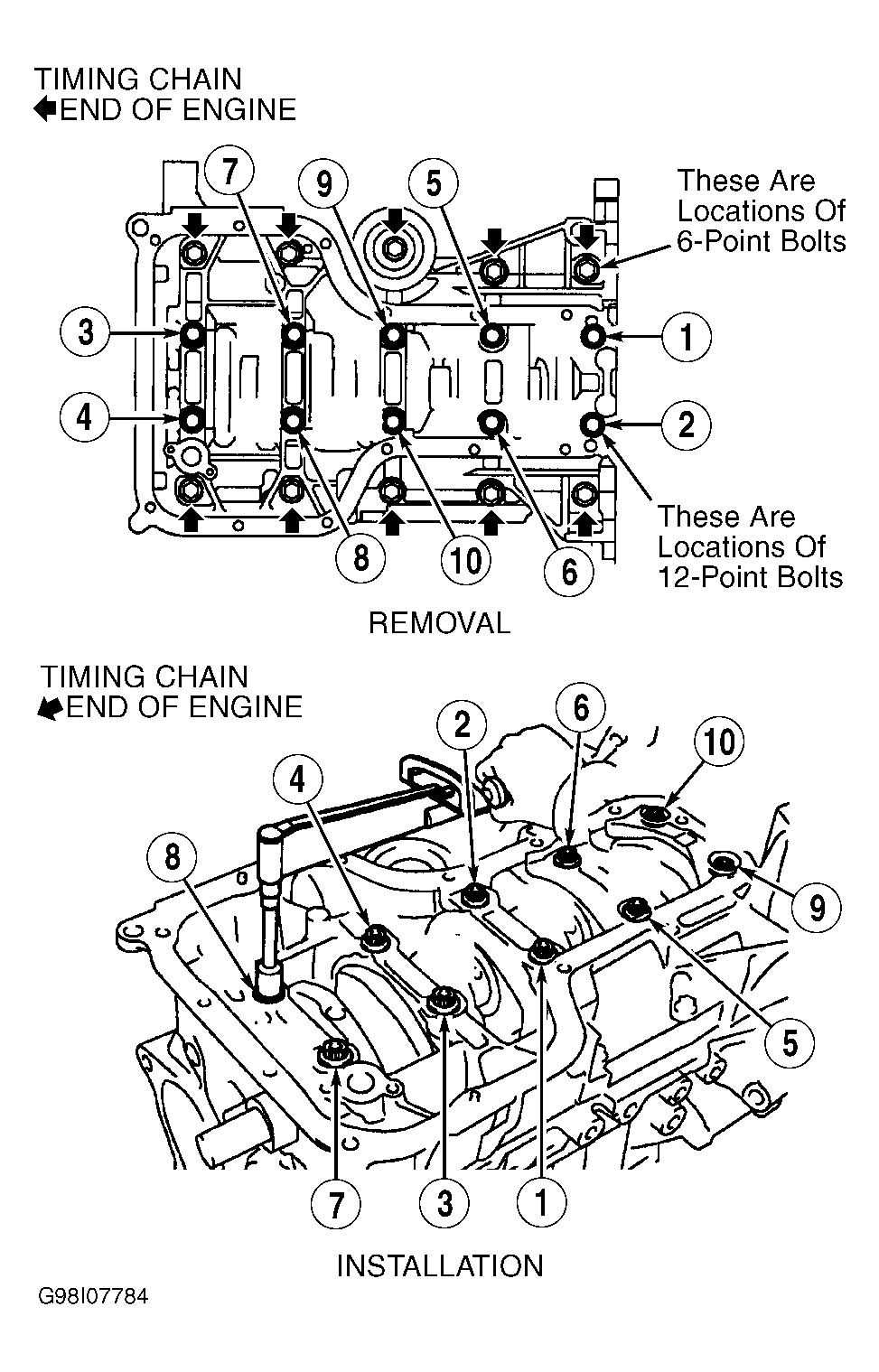

| Crankshaft Main Bearing Cap |
| Step 1 |
15 (20) |
| Step 2 |
30 (40) |
| Step 3 |
|

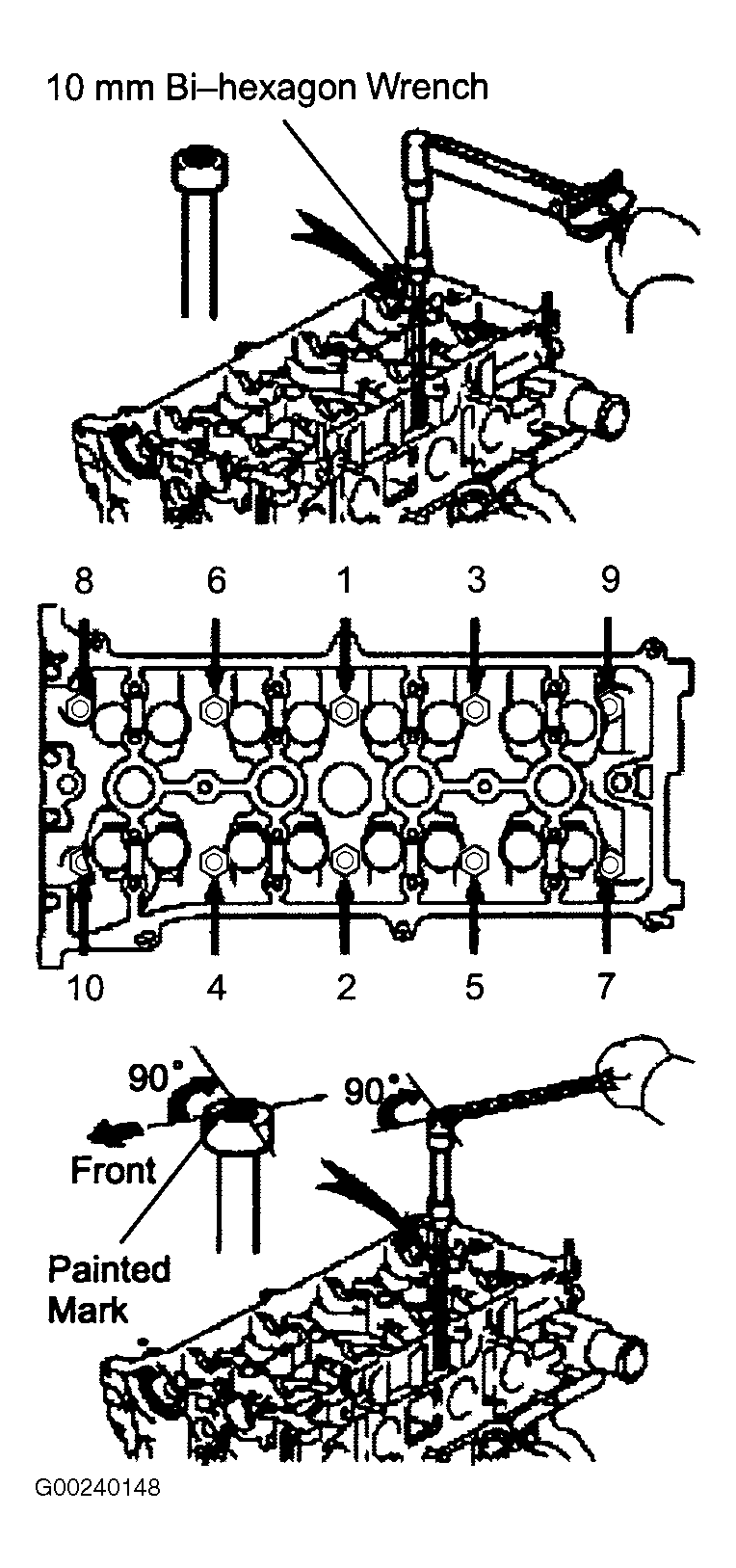

| Cylinder Head Bolts |
| Step 1 |
58 (79) |
| Step 2 |
|
| Delivery Pipe-To-Cylinder Head |
15 (20) |
| Drive Plate-To-Flywheel Bolts |
72 (98) |
| Engine Mounting Components |
| Front Engine Mount Bracket-To-Front Insulator Bolt |
41 (56) |
| Hanger-To-Cylinder Head Bolt |
28 (38) |
| Left Engine Mount-To-Left Insulator Bolt |
41 (56) |
| Rear Engine Mount Bracket-To-Rear Insulator Bolt |
65 (88) |
| Right Side Mounting Insulator-To-Body Bolts |
38 (52) |
| Right Side Mounting Insulator-To-Timing Chain Cover Bolts |
38 (52) |
| Exhaust Components |
| Front Exhaust Pipe-To-Center Exhaust Pipe |
36 (49) |
| Manifold-To-Cylinder Head Bolt |
25 (37) |
| Exhaust Manifold Stays |
30 (40) |
| Exhaust Pipe-To-Manifold Bolt |
32 (43) |
| Front Drive Shaft-To-Front Axle Hub |
150 (216) |
| Flywheel-To-Crankshaft Bolts |
96 (130) |
| Generator Bolts |
| Outer Bolt |
38 (52) |
| Lower Bolt |
16 (21) |
| Ground Cable-To-Transaxle |
14 (19) |
| Intake Manifold-To-Cylinder Head Bolt |
22 (30) |
| Oil Filter Union |
22 (30) |
| Oil Pan Drain Plug |
18 (25) |
| Oil Pump Bolt |
15 (20) |
| Oil Pump Sprocket |
22 (30) |
| Plug-To-Cylinder Block |
20 (27) |
| Power Steering Pressure Hose Fitting |
38 (51) |
| Power Steering Pump Bolt |
22 (30) |
| Propeller Shaft-To-Body |
27 (37) |
| Propeller Shaft-To-Differential |
54 (74) |
| Starter-To-Transaxle Bolt |
28 (37) |
| Stiffener Plate Bolt |
25 (34) |

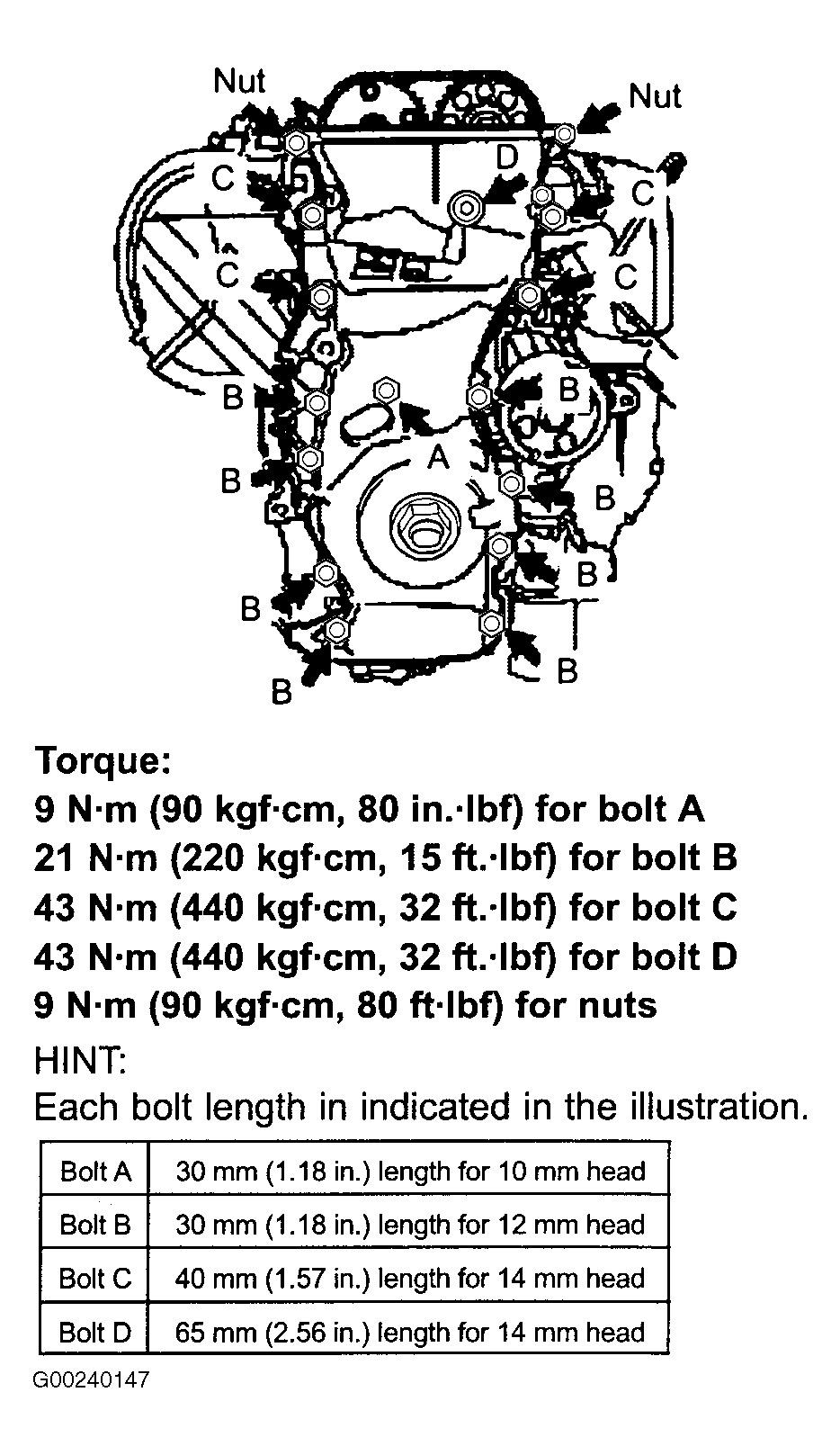

| Timing Cover |
| Bolt "A" |
|
| Bolt "B" |
15 (21) |
| Bolt "C" |
32 (43) |
| Bolt "D" |
32 (43) |
| Nut |
|

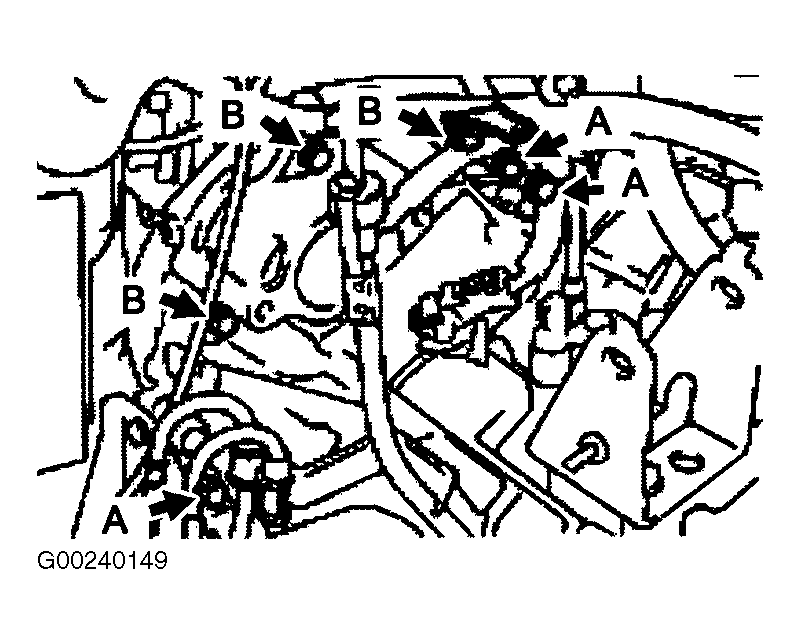

| Transaxle-To-Engine Bolts |
| Bolt "A" |
34 (46) |
| Bolt "B" |
47 (64) |
| Variable Valve Timing Sprocket Bolt |
40 (54) |
| INCH Lbs. (N.m) |
| Belt Tensioner Stud |
84 (9.5) |
| Camshaft Position Sensor |
80 (9) |
| Cam Timing Oil Control Valve Bolts |
80 (9) |
| Chain Tensioner-To-Crankshaft Bearing Cap |
106 (12) |
| Chain Tensioner-To-Timing Chain Cover |
80 (9) |
| Chain Vibration Damper Bolt |
80 (9) |
| Coolant Bypass Pipe-To-Cylinder Block |
80 (9) |
| Coolant Inlet |
80 (9) |
| Coolant Pump Bolt |
80 (9) |
| Crankshaft Position Sensor |
80 (9) |
| Cylinder Head Cover Bolts |
97 (11) |
| Discharge Tube-To-Compressor |
97 (9.8) |
| Heat Shield Bolt |
106 (12) |
| Ignition Coil Bolts |
80 (9) |
| Liquid Tube-To-Compressor |
97 (9.8) |
| Oil Dipstick Tube |
80 (9) |
| Oil Pan Bolts |
80 (9) |
| Oil Pressure Switch |
115 (13) |
| Starter Cable-To-Starter |
78 (8.8) |
| Timing Chain Guide Bolt |
80 (9) |
| Wire Clip For Generator |
68 (7.7) |
