Oil Pump: Reassembly

Install drive and driven rotors .
1. Place the drive and driven rotors into the pump body with the marks facing the pump body cover side.

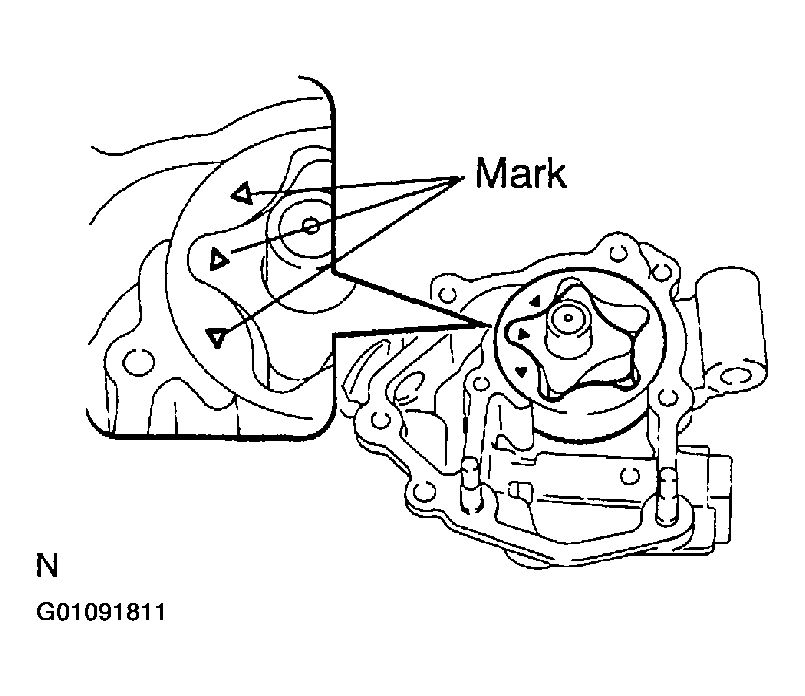

  Fig 1: Displaying Marks On Drive & Driven Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the pump body cover with the 7 bolts.
  1. Torque: 8.8 N.m (90 kgf.cm, 80 in..lbf)
  Fig 2: Installing Pump Body Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install relief valve .

Fig 3: Installing Relief Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Insert the relief valve (1) and spring (2) into the pump body hole, and install the plug (3).
1. Torque: 49 N.m (500 kgf.cm, 35 ft.lbf)
