Charging System - Generators & Regulators: Generator: Removal

REMOVE DRIVE BELT
Hook SST on the hexagonal portion of the drive belt tensioner bracket, compress the drive belt tension by turning the drive belt tensioner bracket clockwise, and remove the drive belt.

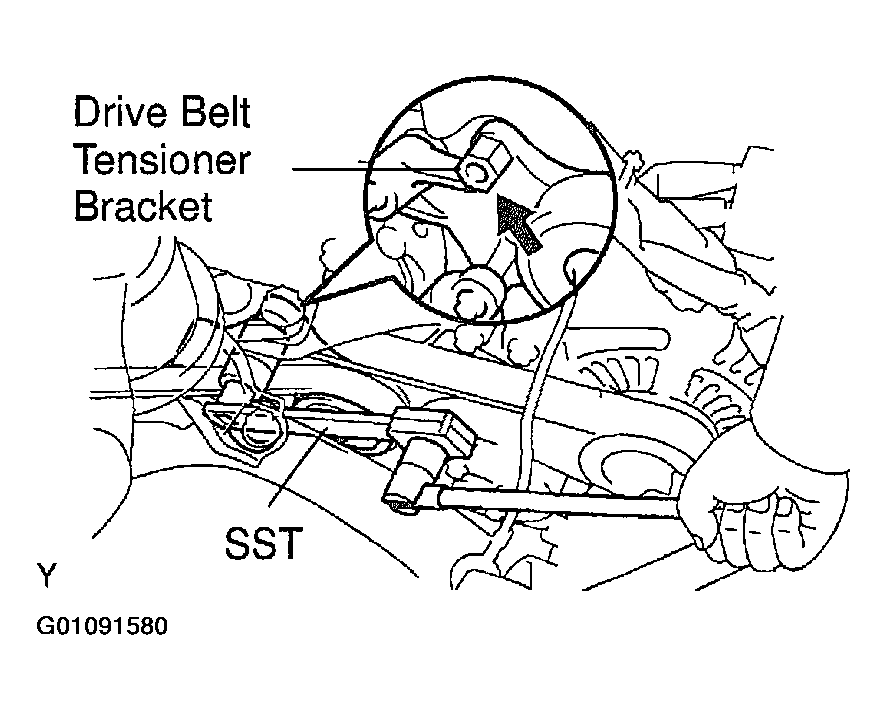

Fig 1: Identifying Drive Belt Tensioner Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. SST 09249-63010
NOTE: Compress the drive belt tensioner by taking 3 seconds or more and remove the drive belt.
REMOVE GENERATOR
1. Remove the bolt, and disconnect the wire clip on the wire connectors from the generator.
2. Disconnect the wire clamp from the wire clip.
3. Remove the cap and nut, and disconnect the generator wire.
4. Disconnect the generator connector.

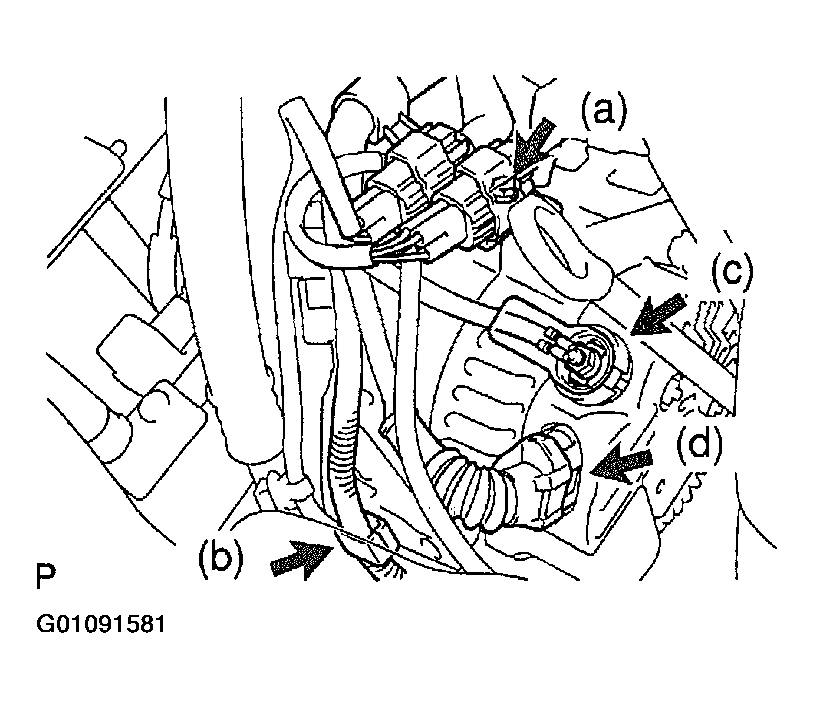

  Fig 2: Disconnecting Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts and generator.

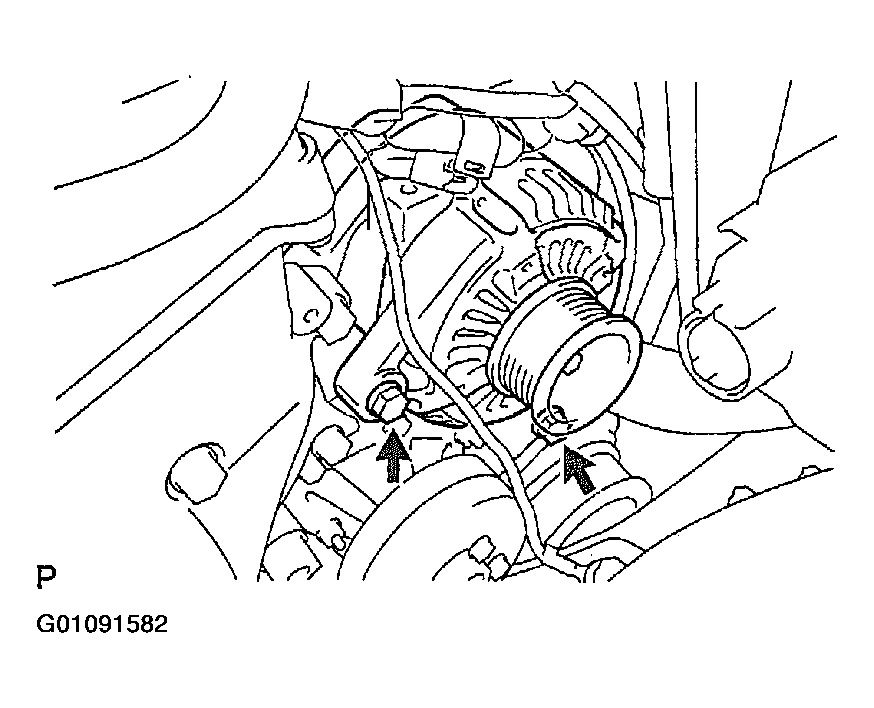

  Fig 3: Unbolting Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
