Rear Seat: Components

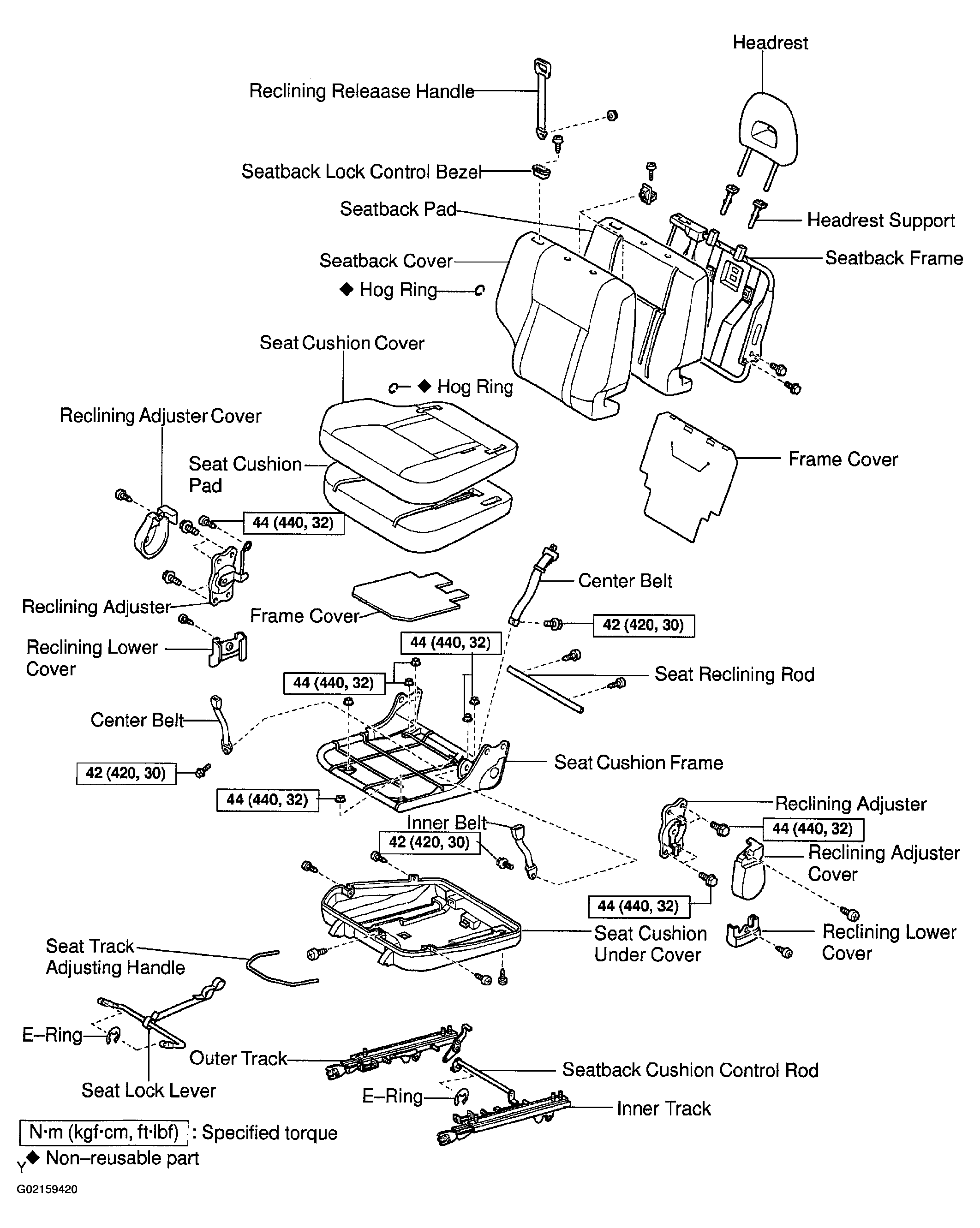

Fig 1: Identifying Rear Seat Components

G02159420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
