Power Door Lock Control System: Inspection

  1. Driver's door: Inspect door lock control switch continuity
    Fig 1: Displaying Driver's Door Lock Control Switch Terminals
    G01895801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 2: Displaying Driver's Door Lock Control Switch Specifications
    G01895800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  2. Passenger's door: Inspect door lock control switch continuity
    Fig 3: Displaying Passenger's Door Lock Control Switch Terminals
    G01895803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 4: Displaying Passenger's Door Lock Control Switch Specifications
    G01895802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  3. Driver's door: Inspect door key lock and unlock switch continuity
    Fig 5: Displaying Driver's Door Key Lock & Unlock Switch Terminals
    G01895805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 6: Displaying Driver's Door Key Lock & Unlock Switch Specifications
    G01895804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  4. Passenger's door: Inspect door key lock and unlock switch continuity
    Fig 7: Displaying Passenger's Door Key Lock & Unlock Switch Terminals
    G01895807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 8: Displaying Passenger's Door Key Lock & Unlock Switch Specifications
    G01895806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  5. Back door: Inspect door key lock and unlock switch continuity
    Fig 9: Displaying Back Door Key Lock & Unlock Switch Terminals
    G01895809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 10: Displaying Back Door Key Lock & Unlock Switch Specifications
    G01895808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  6. Driver's door: Inspect door unlock detection switch continuity
    Fig 11: Displaying Driver's Door Unlock Detection Switch Terminals
    G01895811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 12: Displaying Driver's Door Unlock Detection Switch Specifications
    G01895810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  7. Passenger's door: Inspect door unlock detection switch continuity
    Fig 13: Displaying Passenger's Door Unlock Detection Switch Terminals
    G01895813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 14: Displaying Passenger's Door Unlock Detection Switch Specifications
    G01895812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If continuity is not as specified, replace the switch.

  8. Driver's door: Inspect door lock motor operation
    1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5, and check that the door lock link moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

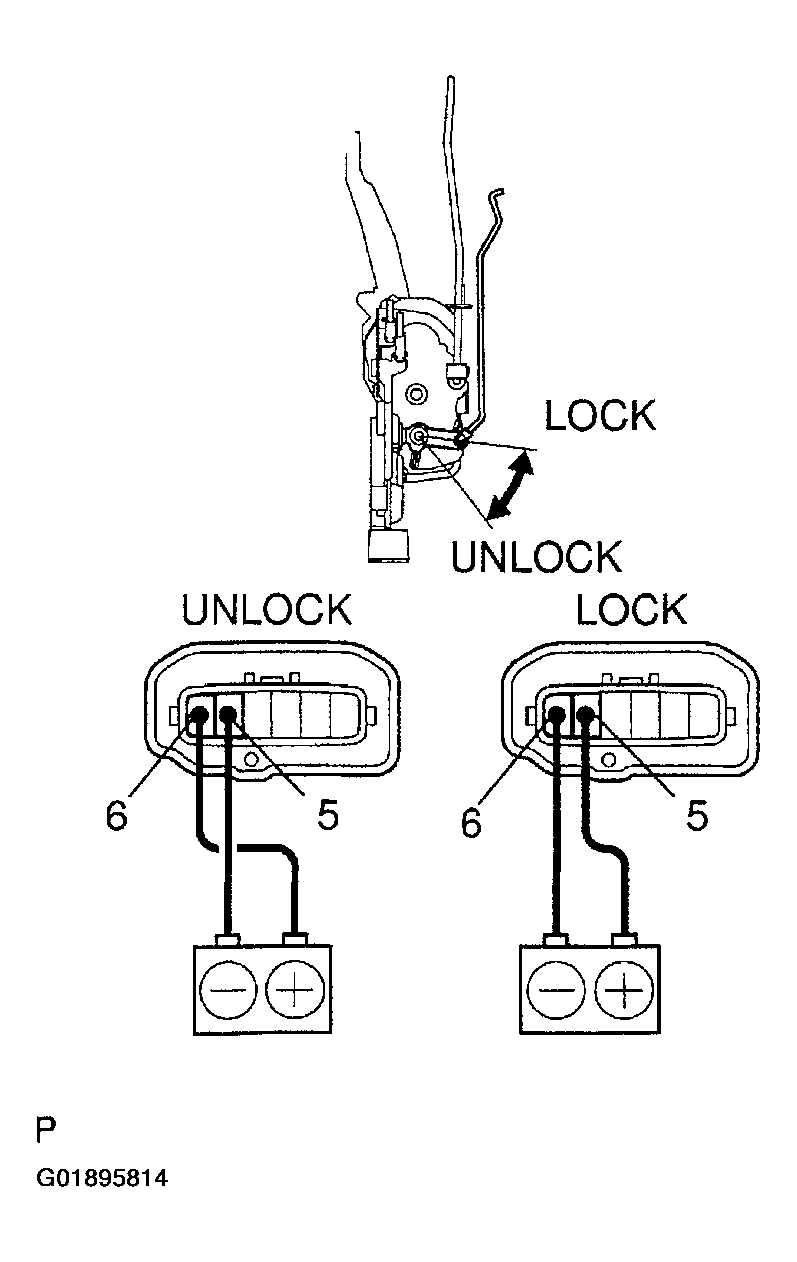

      3. Fig 15: Inspecting Driver's Door Lock Motor Operation
      G01895814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  9. Passenger's door: Inspect door lock motor operation
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the door lock link moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

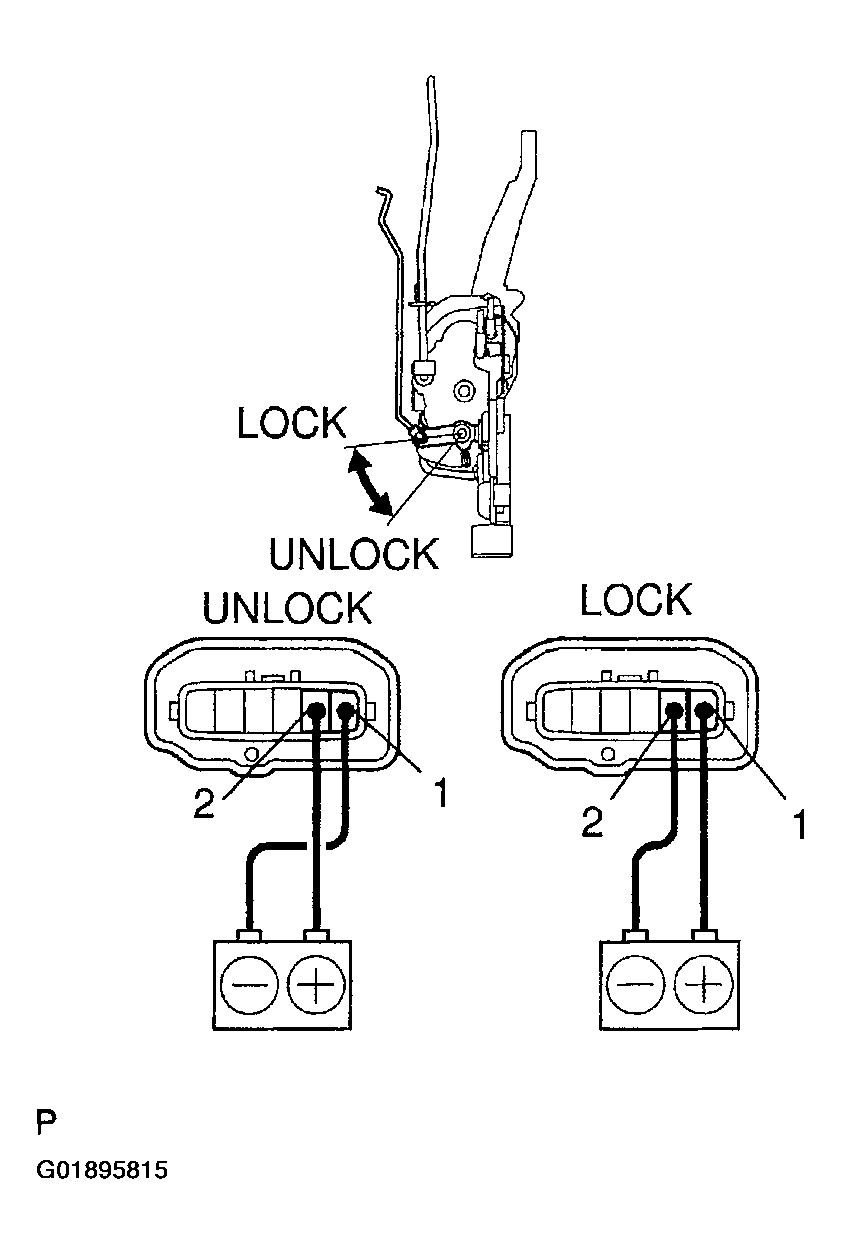

      3. Fig 16: Inspecting Passenger's Door Lock Motor Operation
      G01895815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  10. Rear door: Inspect door lock motor operation
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the door lock link moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

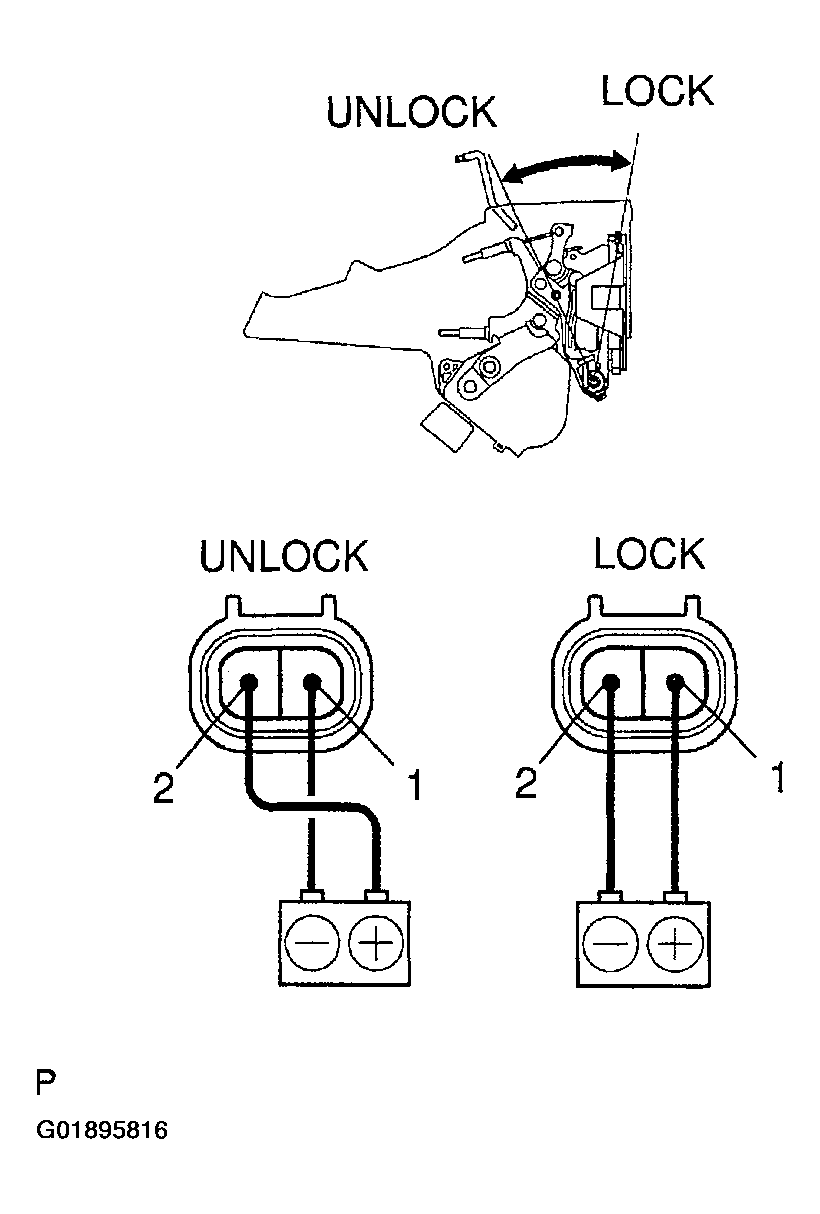

      3. Fig 17: Inspecting Rear Door Lock Motor Operation
      G01895816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  11. Back door: Inspect door lock motor operation
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, and check that the door lock link moves to UNLOCK position.
    2. Reverse the polarity and check that the door lock link moves to LOCK position.

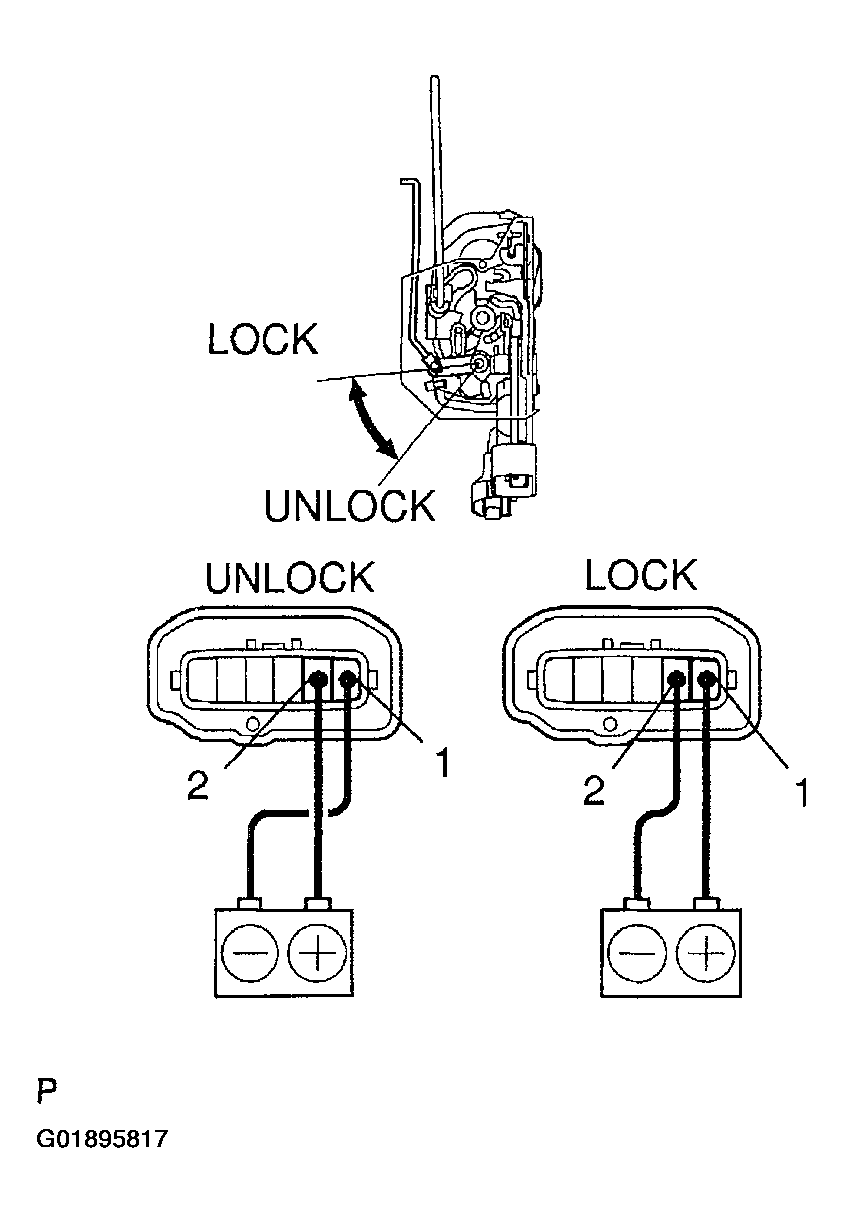

      3. Fig 18: Inspecting Back Door Lock Motor Operation
      G01895817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  12. Driver's door: Inspect door PTC thermistor operation
    1. Connect the negative (-) lead from the ammeter to terminal 6, and the positive (+) lead to negative terminal of the battery.
    2. Connect the negative (-) lead from the battery to terminal 5.

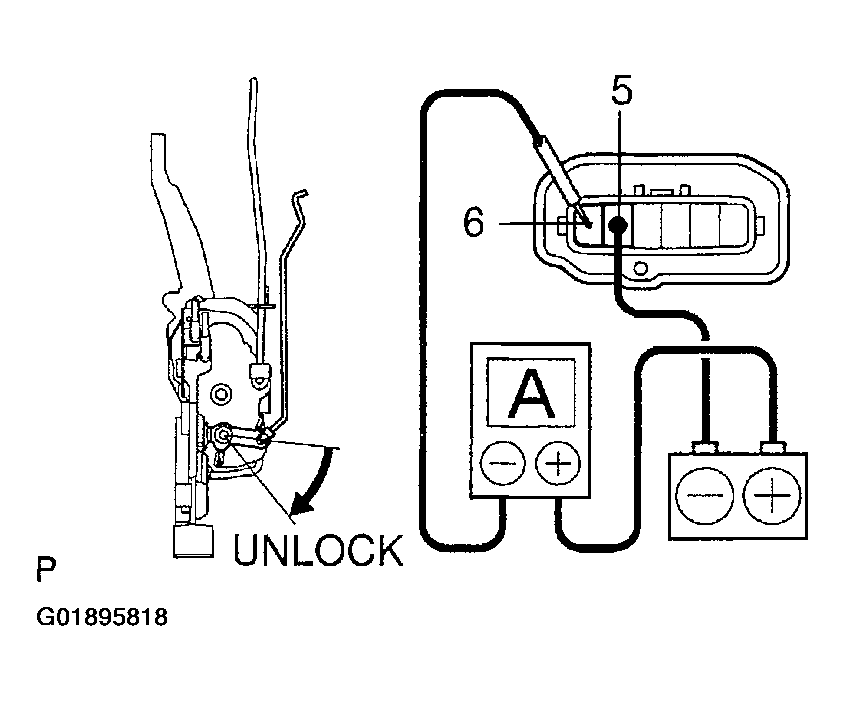

      3. Fig 19: Inspecting Driver's Door PTC Thermistor Operation
      G01895818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.
    4. Disconnect the leads from terminals.
    5. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6, and check that the door lock moves to the LOCK position.
      6. Fig 20: Checking Driver's Door Lock Moves To LOCK Position
      G01895819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  13. Passenger's door: Inspect passenger's door PTC thermistor operation
    1. Connect the negative (-) lead from the ammeter to terminal 2, and the positive (+) lead to negative terminal of the battery.
    2. Connect the negative (-) lead from the battery to terminal 1.

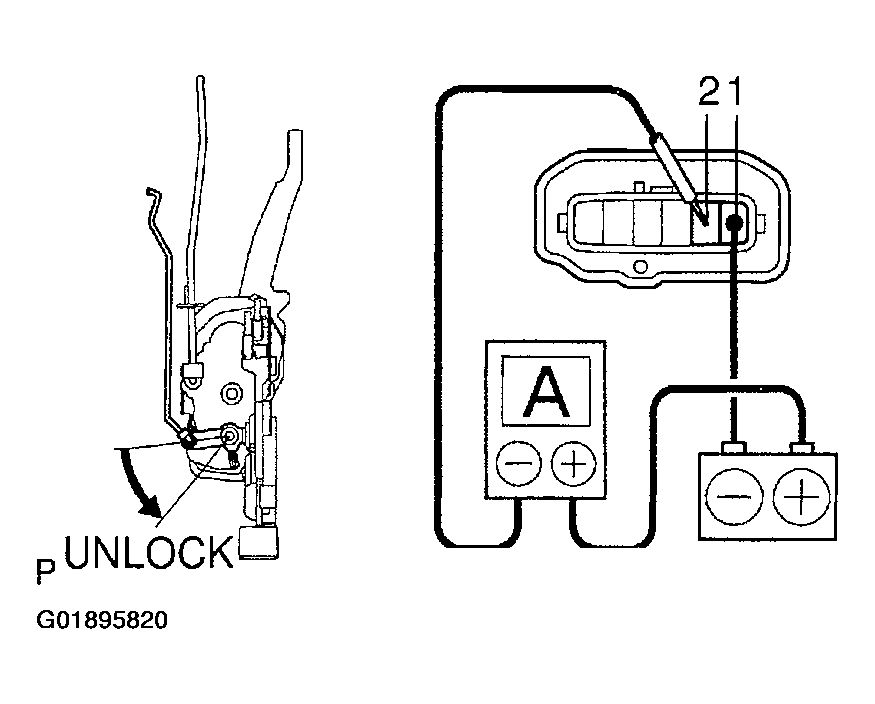

      3. Fig 21: Inspecting Passenger's Door PTC Thermistor Operation
      G01895820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.
    4. Disconnect the leads from terminals.
    5. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock moves to the LOCK position.
      6. Fig 22: Checking Passenger's Door Lock Moves To LOCK Position
      G01895821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  14. Rear door: Inspect door PTC thermistor operation
    1. Connect the negative (-) lead from the ammeter to terminal 2, and the positive (+) lead to negative terminal of the battery.
    2. Connect the negative (-) lead from the battery to terminal 1.

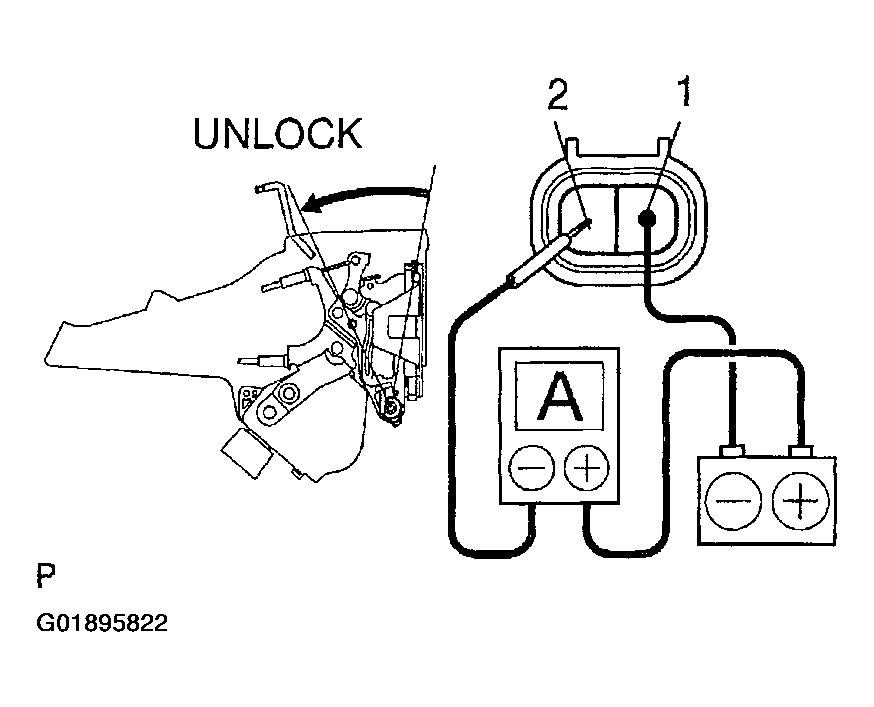

      3. Fig 23: Inspecting Rear Door PTC Thermistor Operation
      G01895822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.
    4. Disconnect the leads from terminals.
    5. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock moves to the LOCK position.
      6. Fig 24: Check Rear Door Lock Moves To LOCK Position
      G01895823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  15. Back door: Inspect door PTC thermistor operation
    1. Connect the negative (-) lead from the ammeter to terminal 2, and the positive (+) lead to negative terminal of the battery.
    2. Connect the negative (-) lead from the battery to terminal 1.

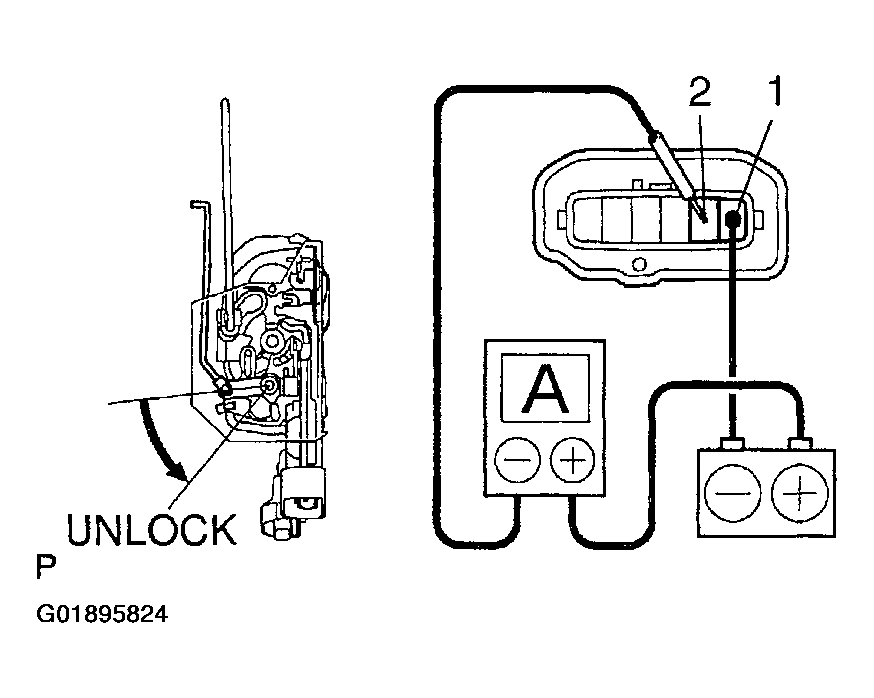

      3. Fig 25: Inspecting Back Door PTC Thermistor Operation
      G01895824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.
    4. Disconnect the leads from terminals.
    5. Approximately 60 seconds later, connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock moves to the LOCK position.
      6. Fig 26: Checking Back Door Lock Moves To LOCK Position
      G01895825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  16. Driver's door: Inspect door PTC thermistor operation
    1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5.
    2. Attach a current-measuring probe to either the positive (+) lead or the negative (-) lead, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.

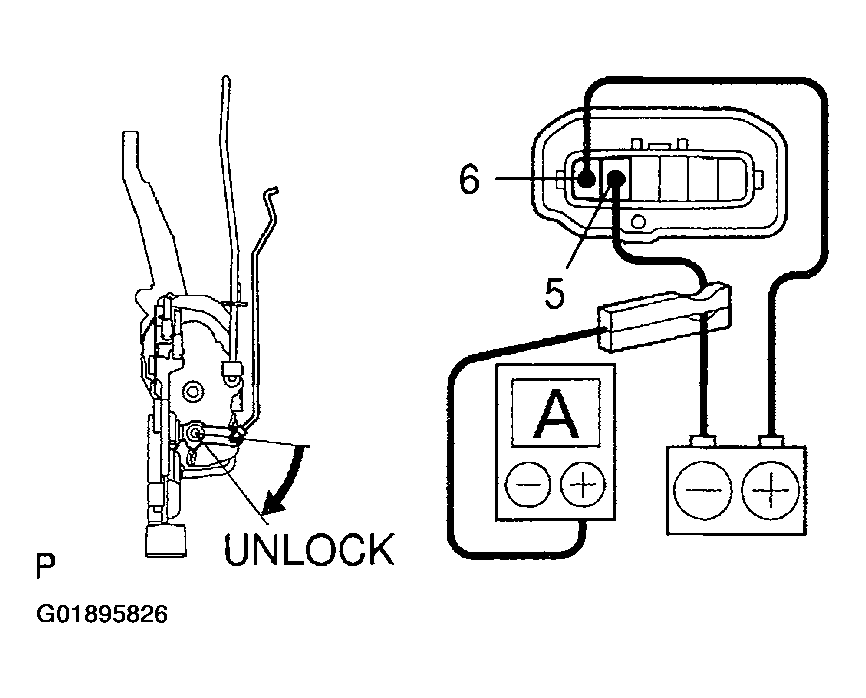

      Fig 27: Inspecting Driver's Door PTC Thermistor Operation
      G01895826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the leads from terminals.
    4. Approximately 60 seconds later, reverse the polarity, and check that the door lock moves to the LOCK position.
      5. Fig 28: Check Driver's Door Lock Moves To LOCK Position
      G01895827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  17. Passenger's door: Inspect door PTC thermistor operation
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1.
    2. Attach a current-measuring probe to either the positive (+) lead or the negative (-) lead, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.

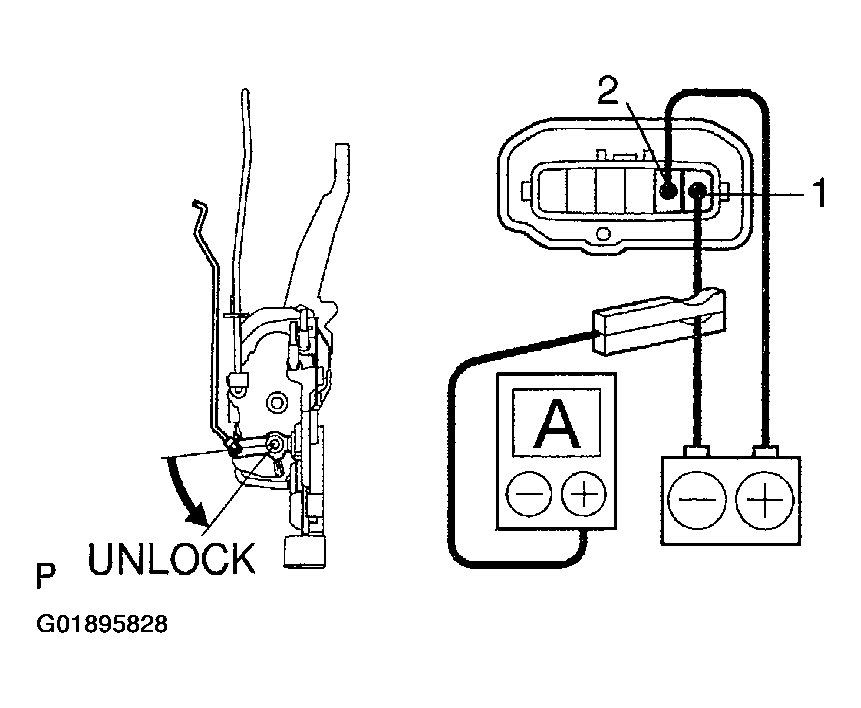

      Fig 29: Inspecting Passengers Door PTC Thermistor Operation
      G01895828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the leads from terminals.
    4. Approximately 60 seconds later, reverse the polarity, and check that the door lock moves to the LOCK position.
      5. Fig 30: Checking Passenger's Door Lock Moves To LOCK Position
      G01895829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  18. Rear door: Inspect door PTC thermistor operation
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1.
    2. Attach a current-measuring probe to either the positive (+) lead or the negative (-) lead, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.

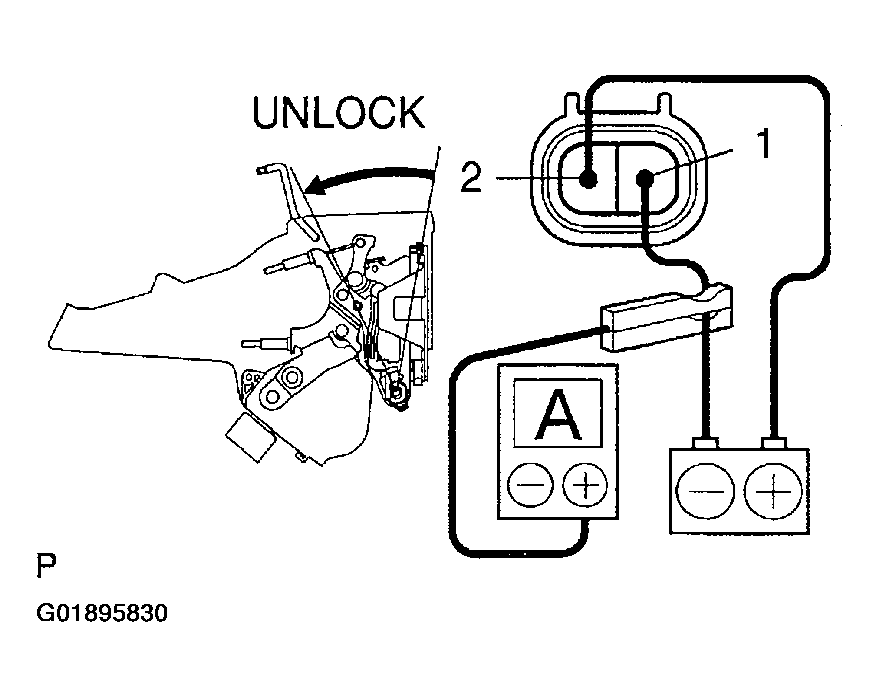

      Fig 31: Inspecting Rear Door PTC Thermistor Operation
      G01895830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the leads from terminals.
    4. Approximately 60 seconds later, reverse the polarity, and check that the door lock moves to the LOCK position.
      5. Fig 32: Checking Rear Door Lock Moves To LOCK Position
      G01895831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If operation is not as specified, replace the door lock assembly.

  19. Back door: Inspect door PTC thermistor operation
    1. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1.
    2. Attach a current-measuring probe to either the positive (+) lead or the negative (-) lead, and check that the current changes from approximately 3.2 A to less than 0.5 A within 20 to 70 seconds.

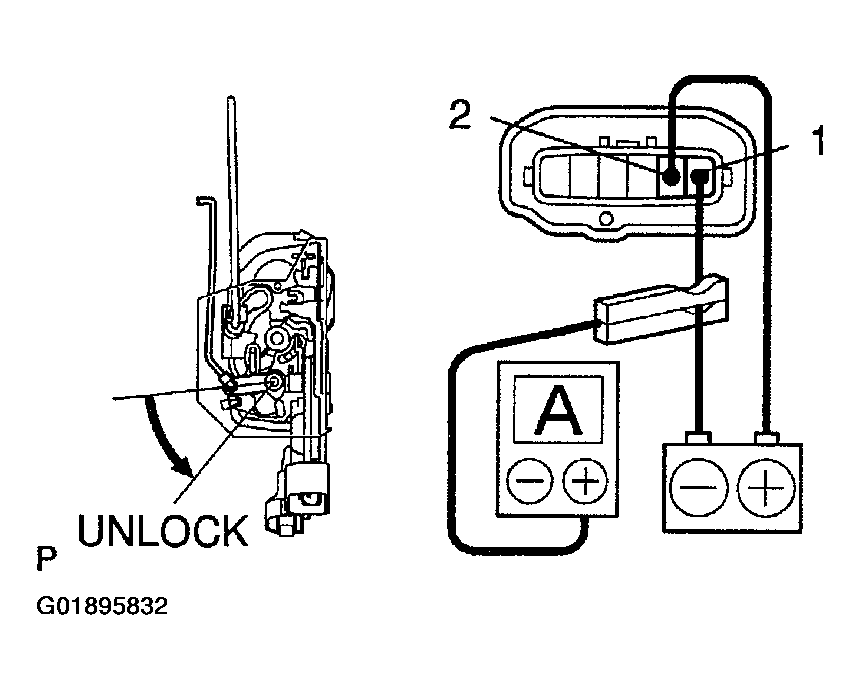

      Fig 33: Inspecting Back Door PTC Thermistor Operation
      G01895832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the leads from terminals.
      Fig 34: Checking Back Door Lock Moves To LOCK Position
      G01895833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Approximately 60 seconds later, reverse the polarity, and check that the door lock moves to the LOCK position.

      If operation is not as specified, replace the door lock assembly.
