Section 10 (Engine Mechanical)
>>
Cylinder Block
>>
Components
Cylinder Block: Components
WARNING:
This page is about a different variant/trim than selected.

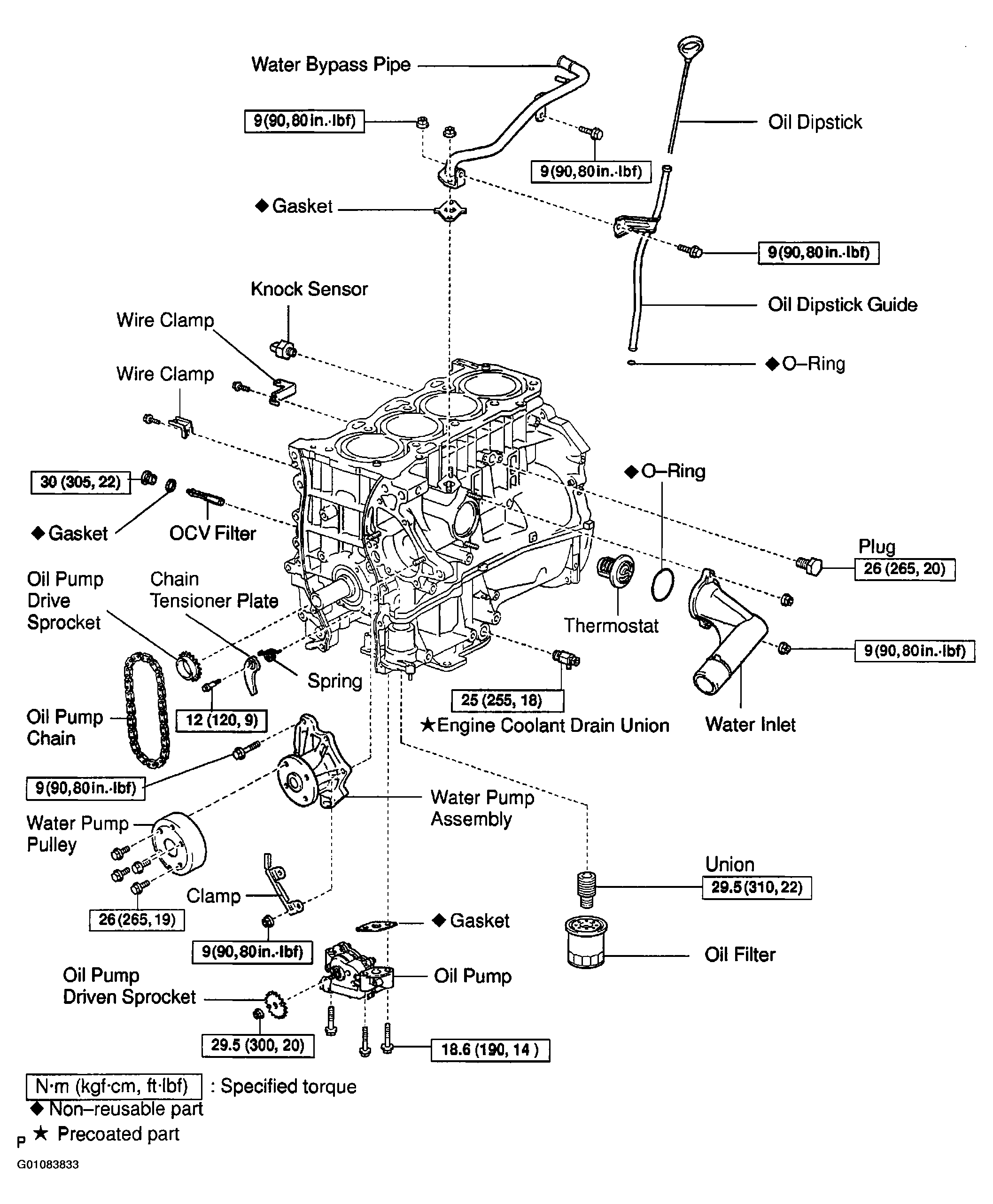

Fig 1: Displaying Cylinder Block Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

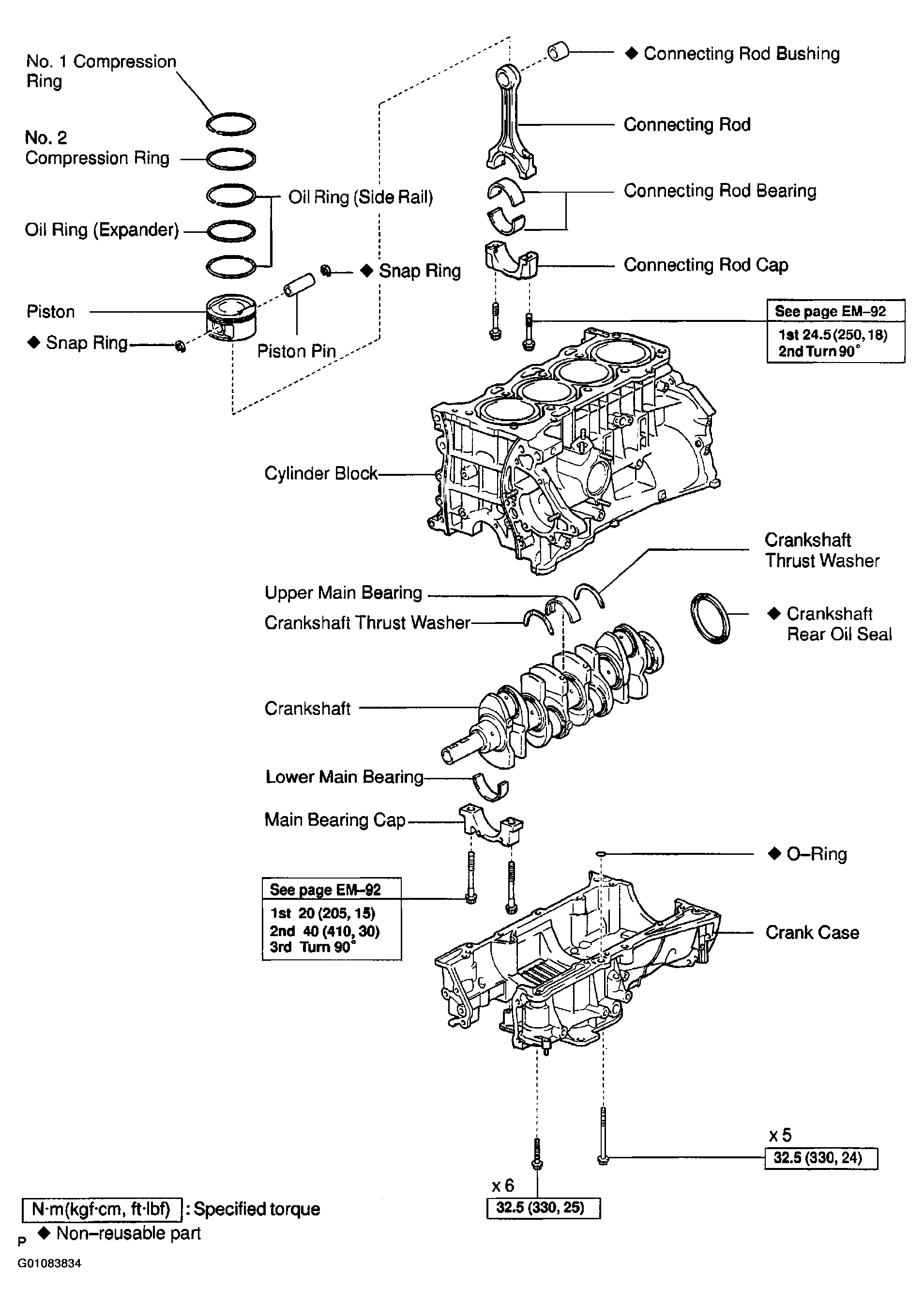

Fig 2: Displaying Cylinder Block Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
