Front Extension Housing: Disassembly

WARNING: This page is about a different car, the 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Remove drive clutch hub .
1. Using a snap ring expander, remove the snap ring.
2. Using SST, remove the drive clutch hub.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955- 04021, 09957-04010, 09958-04011)

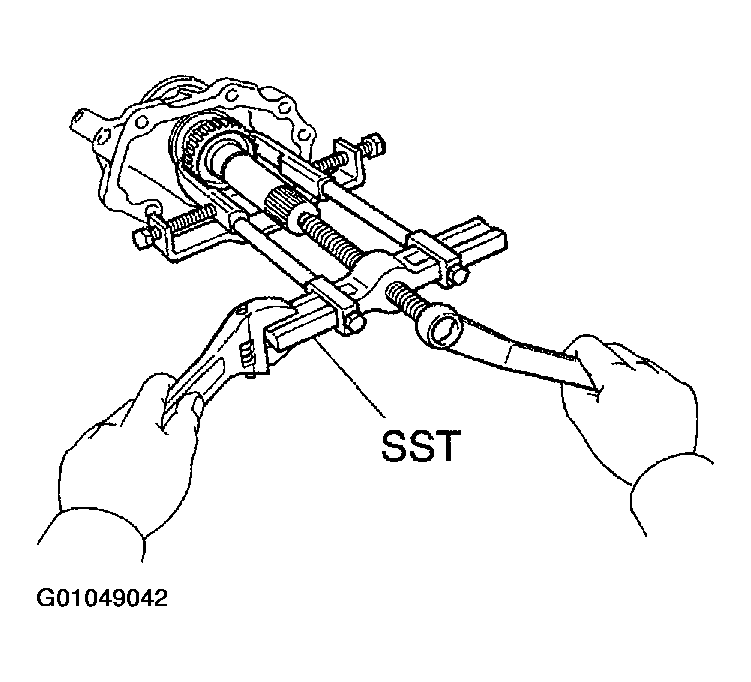

  Fig 1: Removing Drive Clutch Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove front output shaft .
1. Using a plastic hammer, drive out the front output shaft.

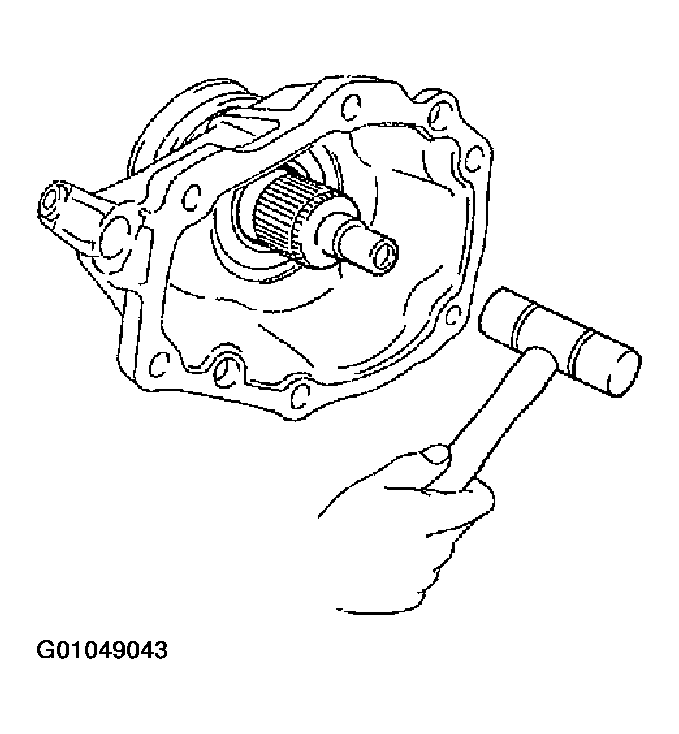

  Fig 2: Removing Front Output Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove dust deflector .
1. Using SST, remove the dust deflector.

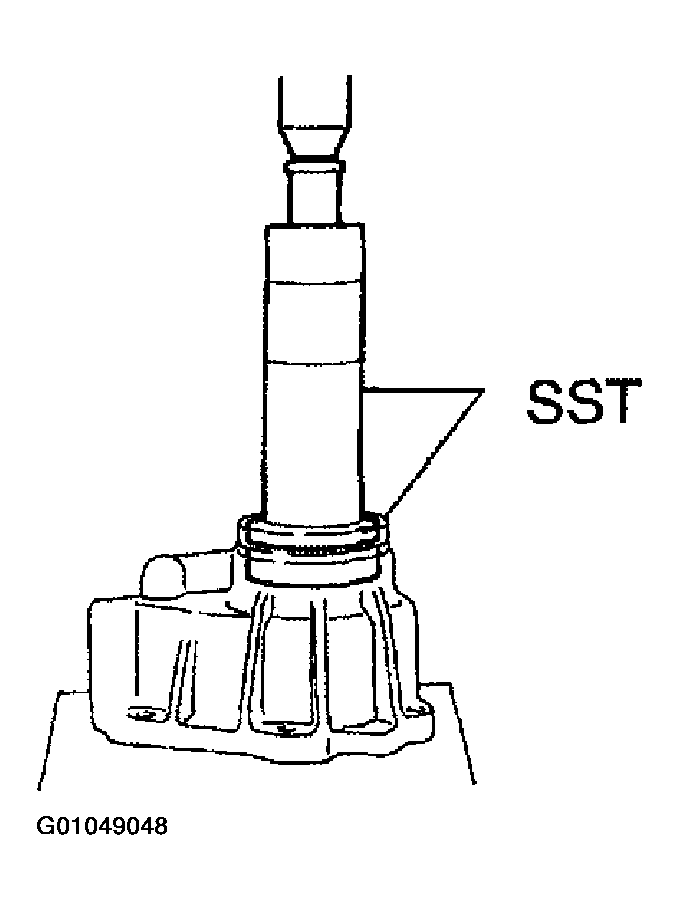

  Fig 3: Removing Dust Deflector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955- 04051, 09957-04010, 09958-04011)
2. Using a screwdriver and hammer, tap the dust deflector and remove it from the extension housing.

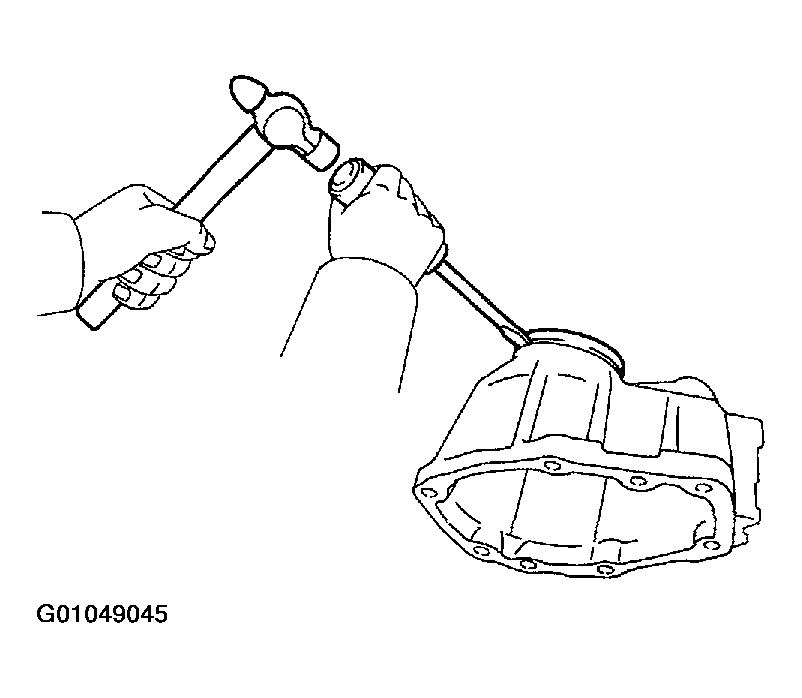

  Fig 4: Removing Dust Deflector From Extension Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove oil seal .
1. Using a screwdriver, pry out the oil seal from the front extension housing.

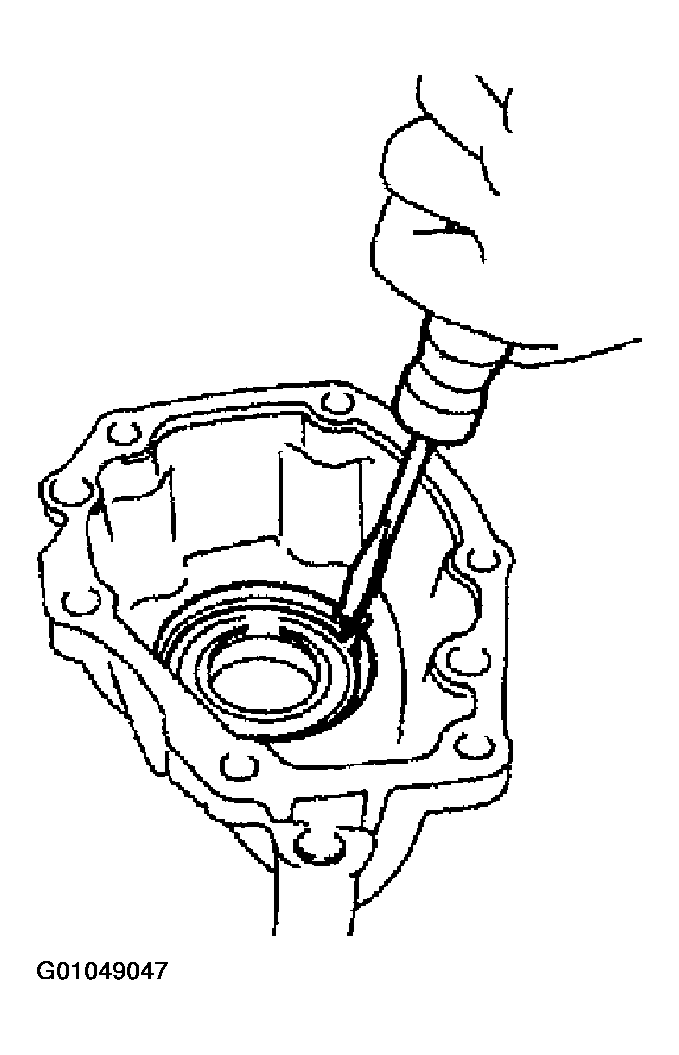

  Fig 5: Prying Out Oil Seal From Front Extension Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove ball bearing .
1. Using a screwdriver, remove the snap ring.

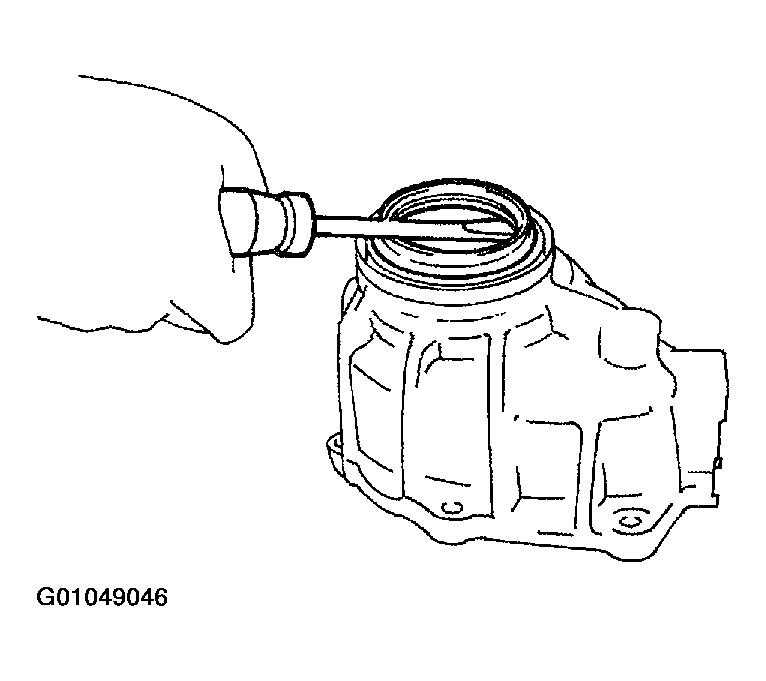

  Fig 6: Removing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, remove the ball bearing.

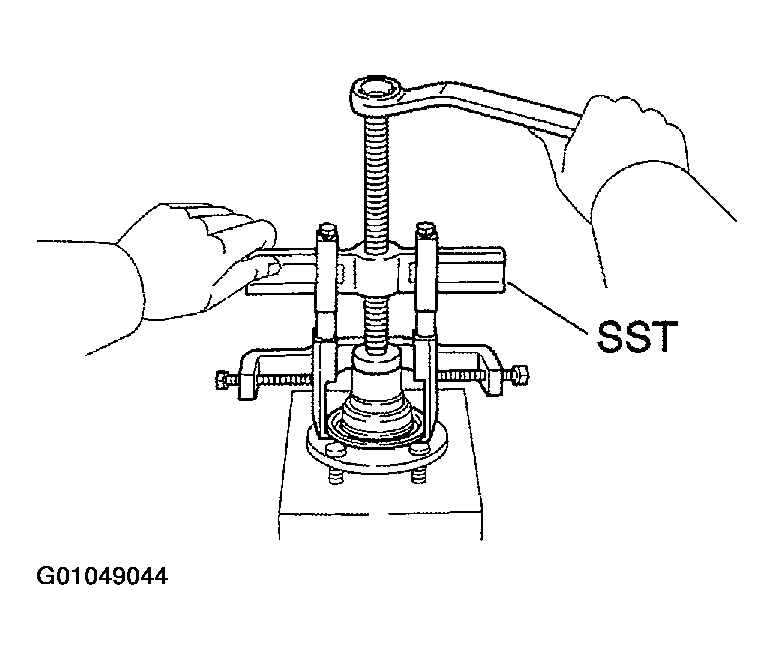

  Fig 7: Removing Ball Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09316-60011 (09316-00011, 09316-00071)
