Engine Unit: Components

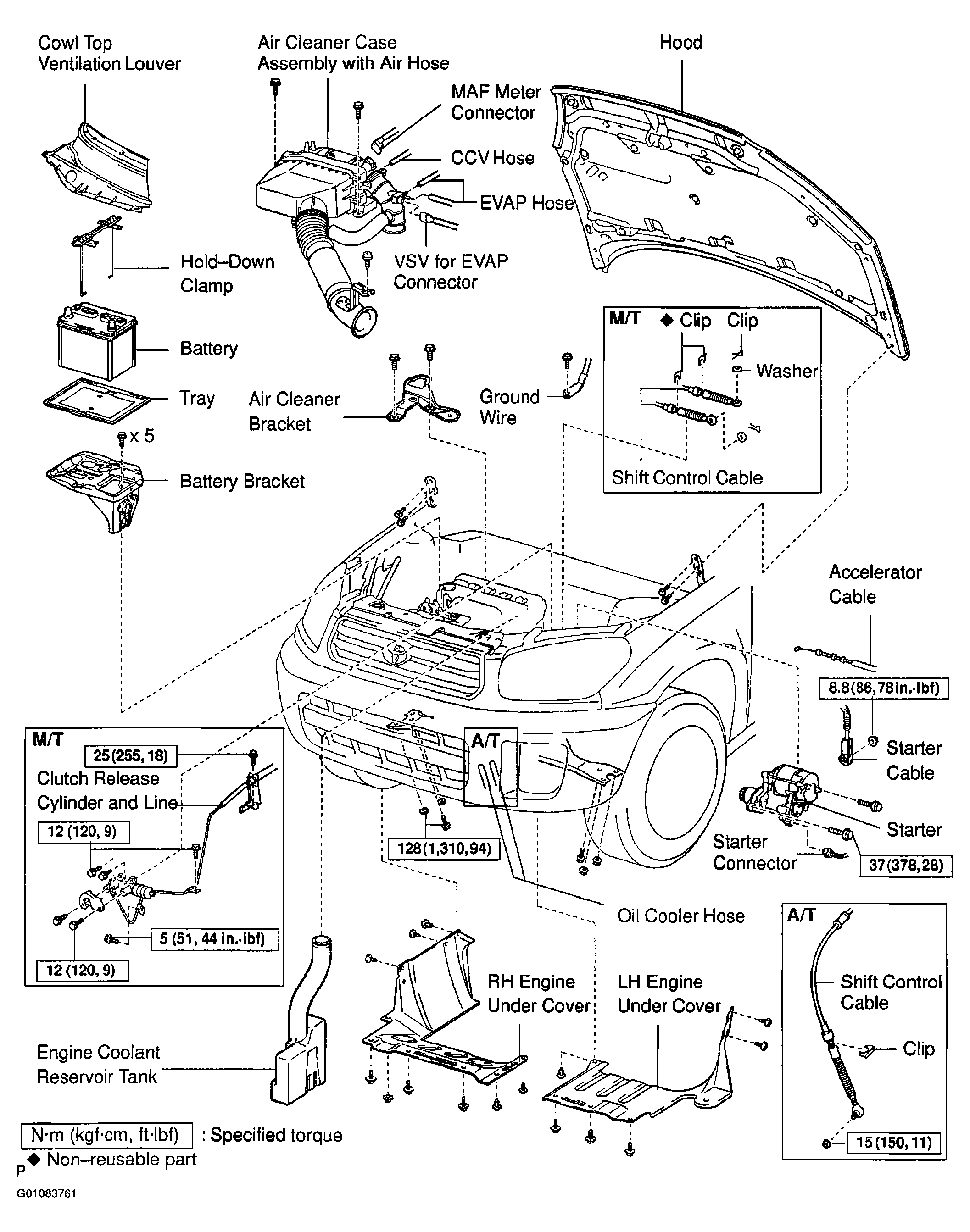

Fig 1: Displaying Air Unit Components (1 Of 6)
G01083761Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

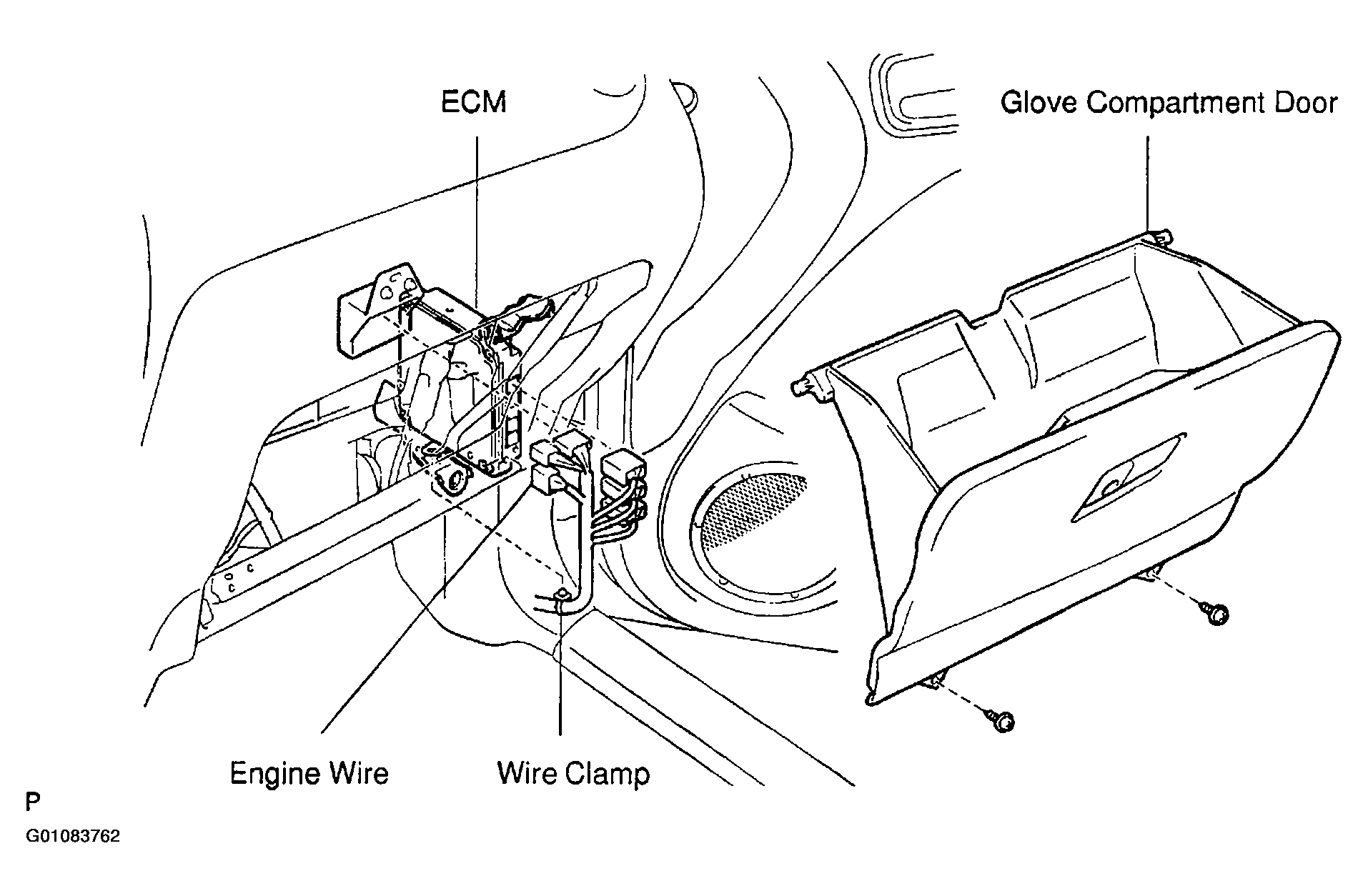

Fig 2: Displaying Air Unit Components (2 Of 6)
G01083762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

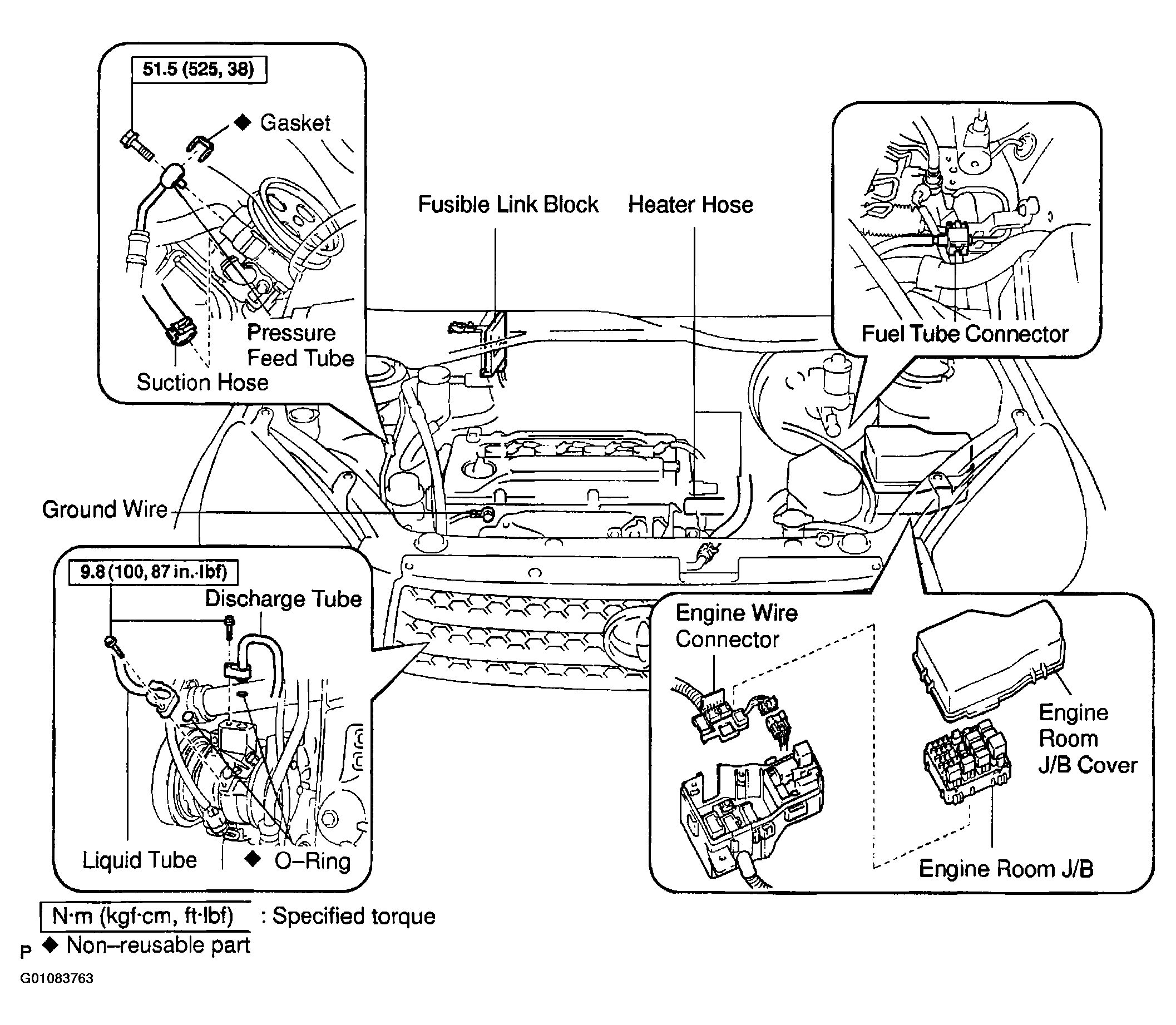

Fig 3: Displaying Air Unit Components (3 Of 6)
G01083763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

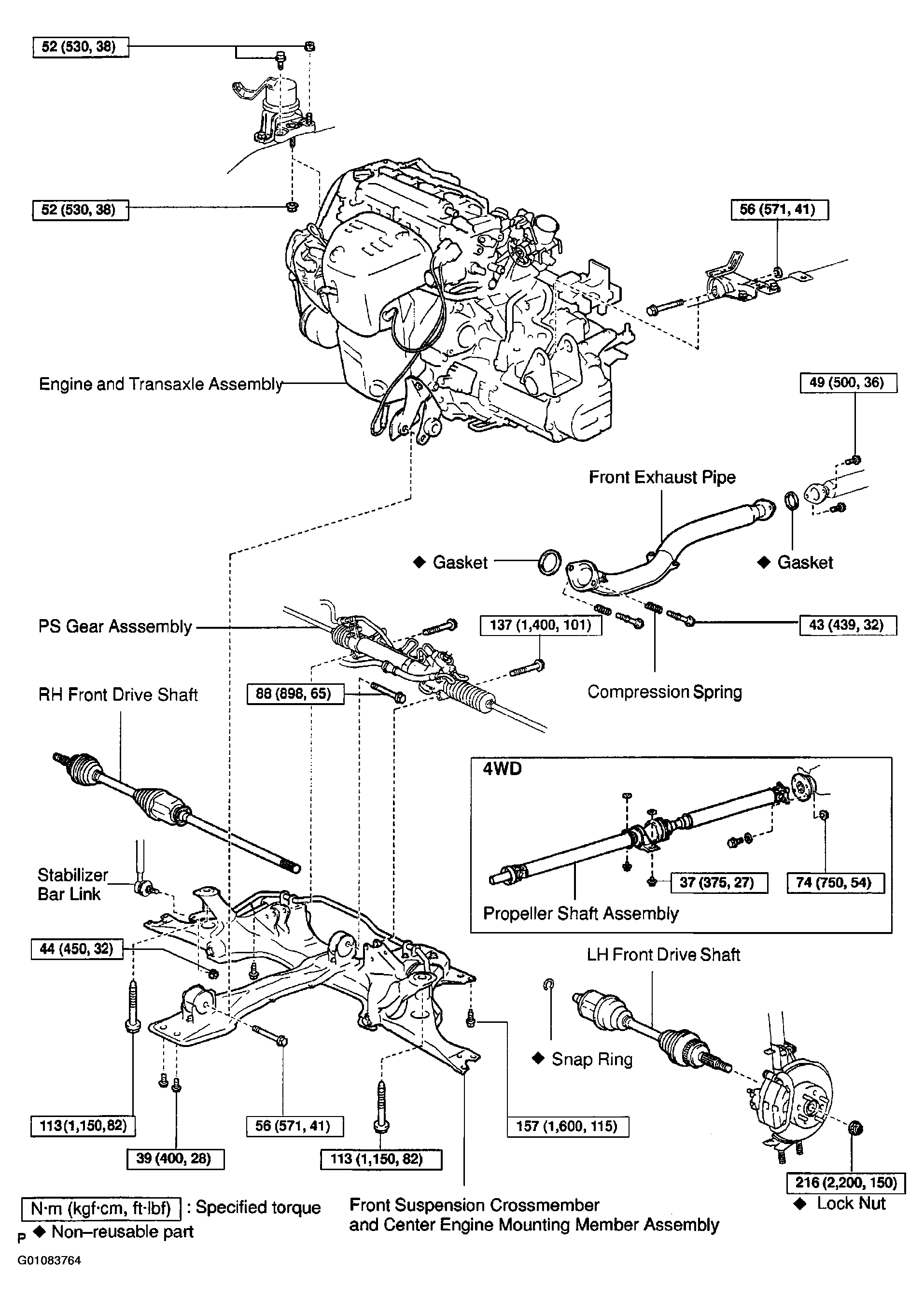

Fig 4: Displaying Air Unit Components (4 Of 6)
G01083764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

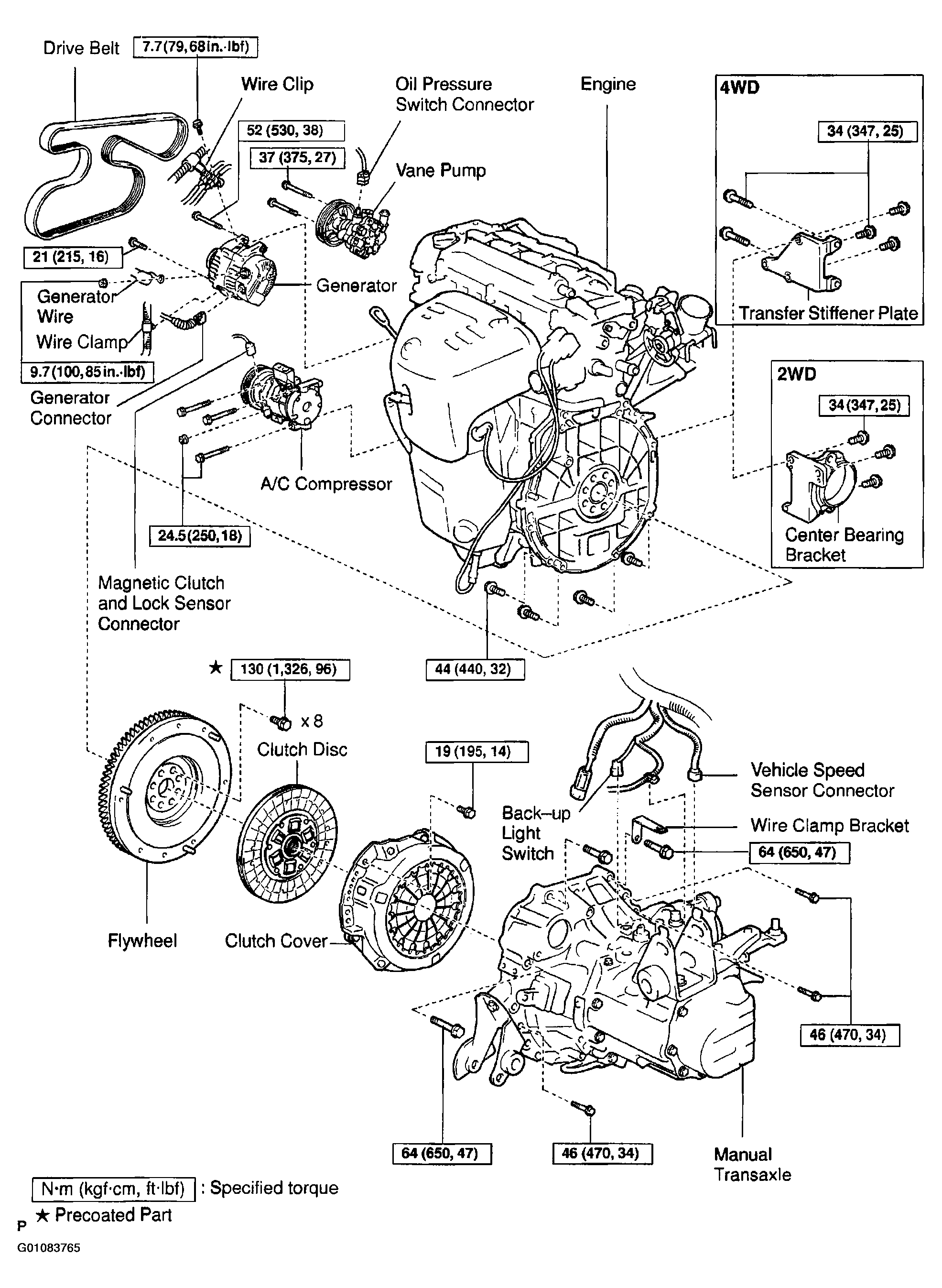

Fig 5: Displaying Air Unit Components (5 Of 6)
G01083765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Displaying Air Unit Components (6 Of 6)
G01083766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
