Power Steering Vane Pump: Components

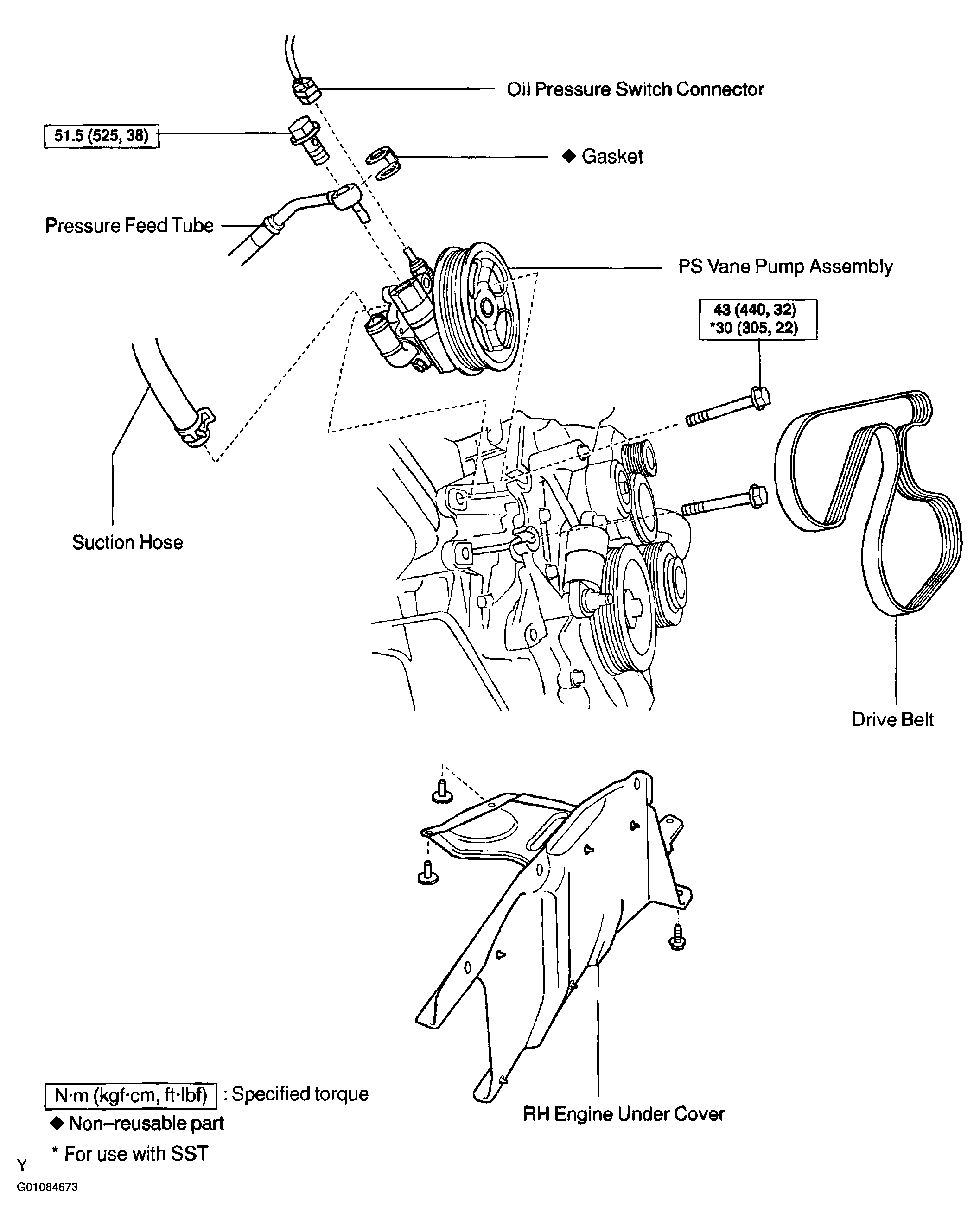

Fig 1: Identifying Components For Power Steering Pump Removal
G01084673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

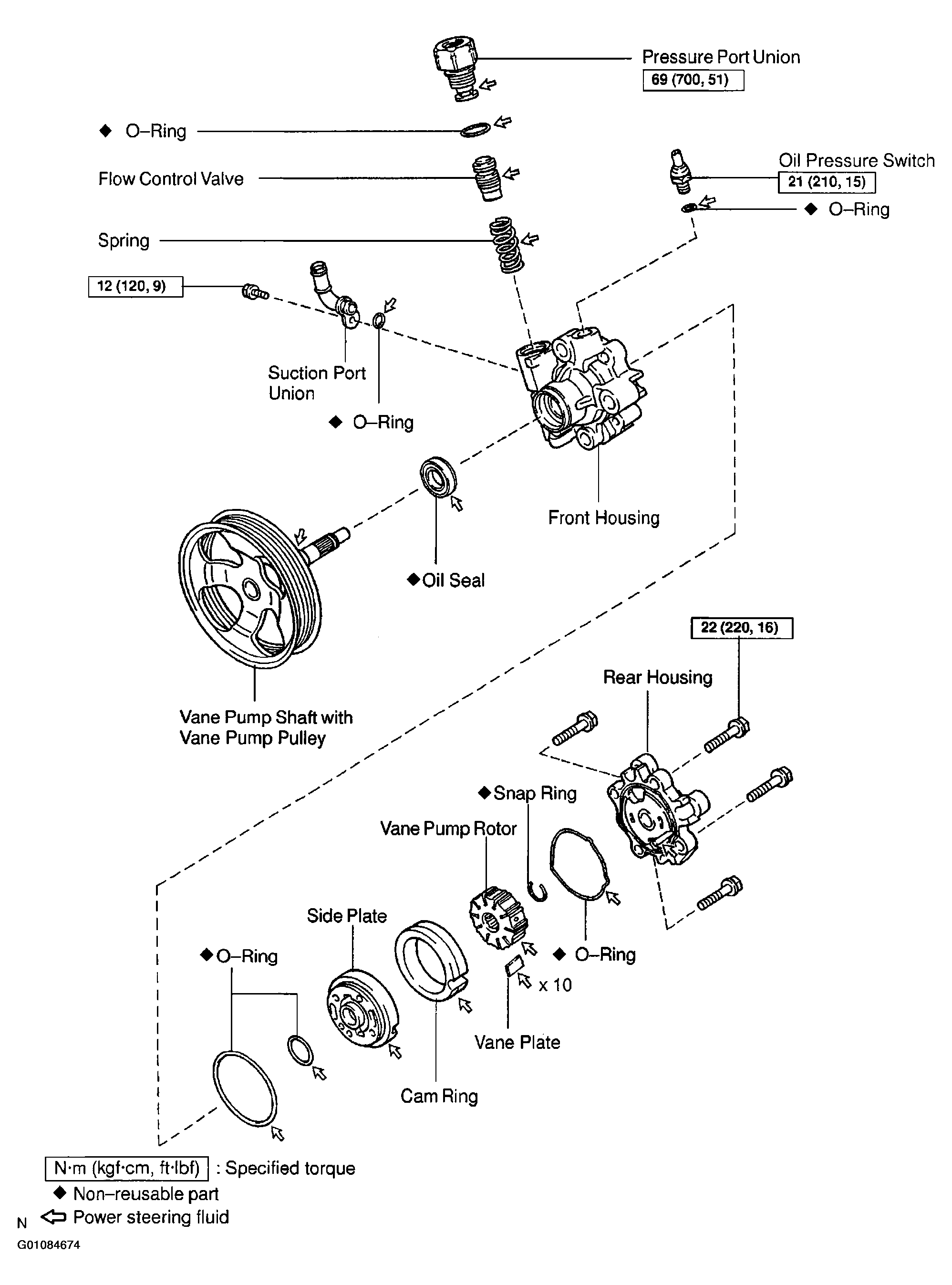

Fig 2: Exploded View Of Power Steering Vane Pump
G01084674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
