Condenser Fan: Disassembly

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FAN
Remove the 3 bolts and fan. See Fig 1.

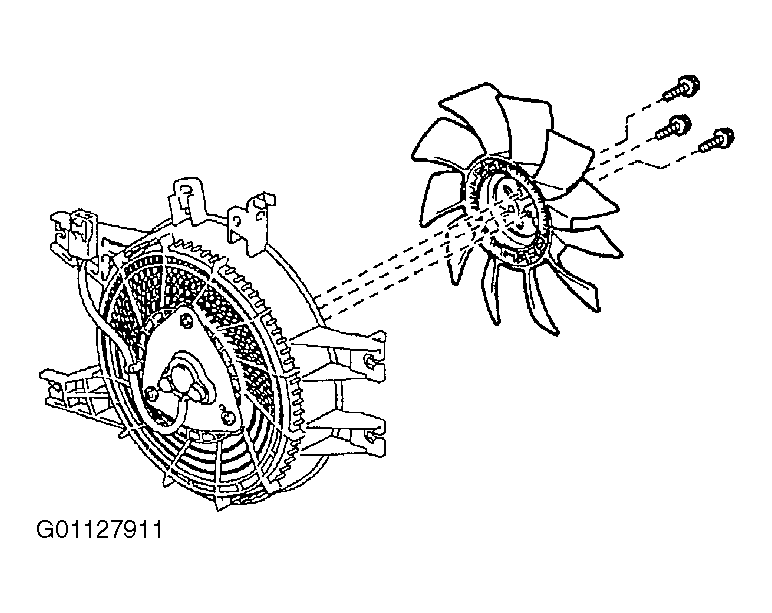

Fig 1: Removing Fan From Fan Shroud
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FAN MOTOR FROM FAN SHROUD
Remove the 3 screws and fan motor. See Fig 2.

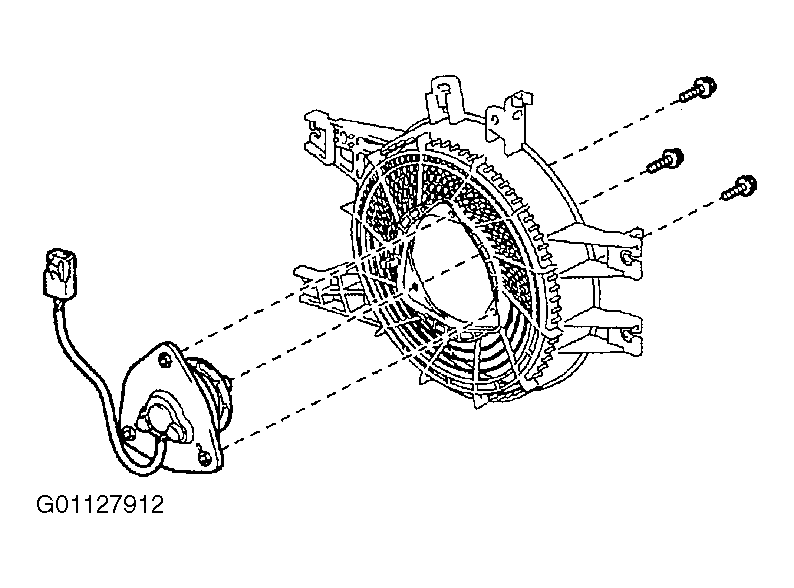

Fig 2: Removing Fan Motor From Fan Shroud
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
