WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

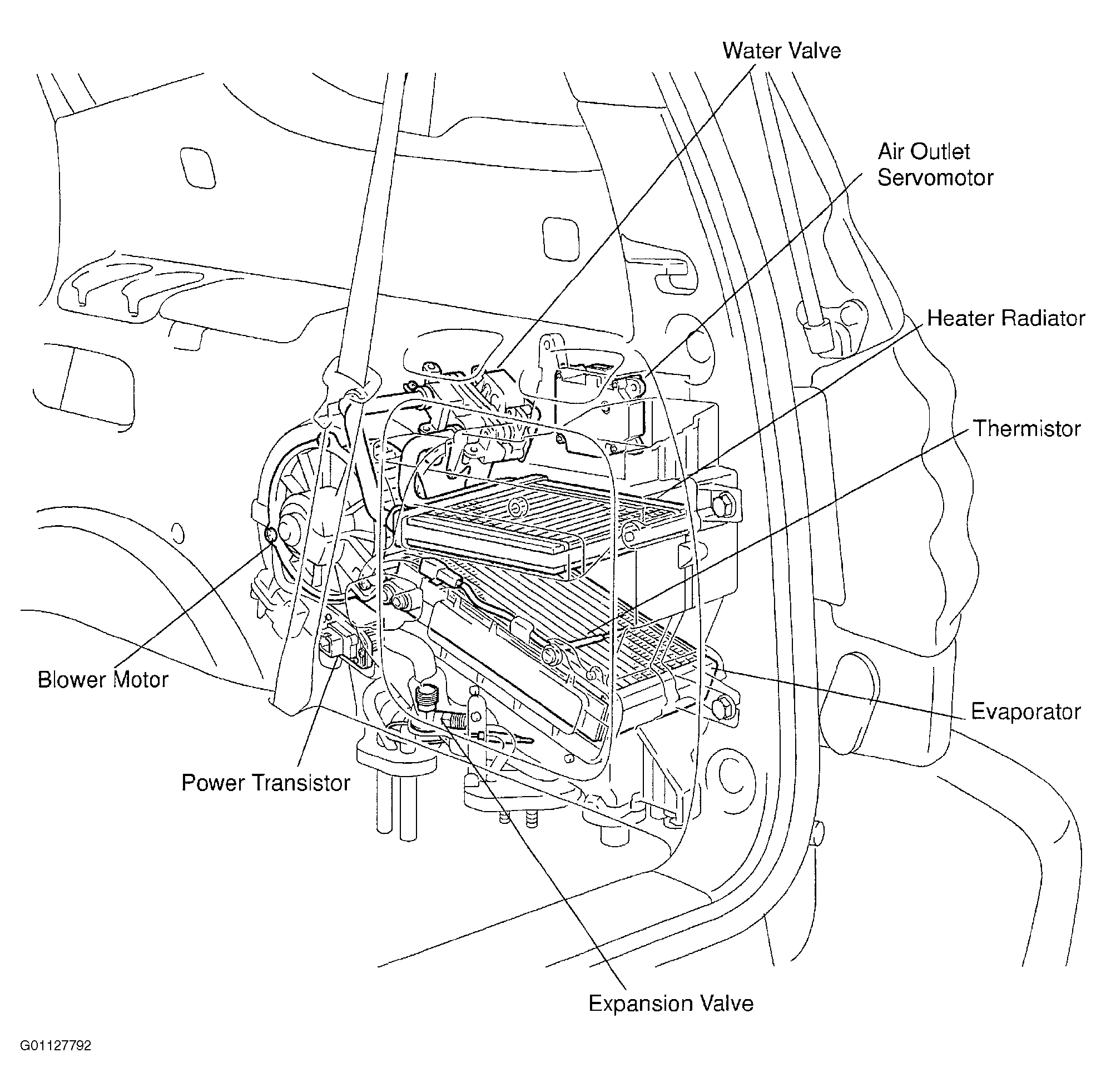

For A/C system component locations, see illustrations. See Fig 1 and Fig 2.

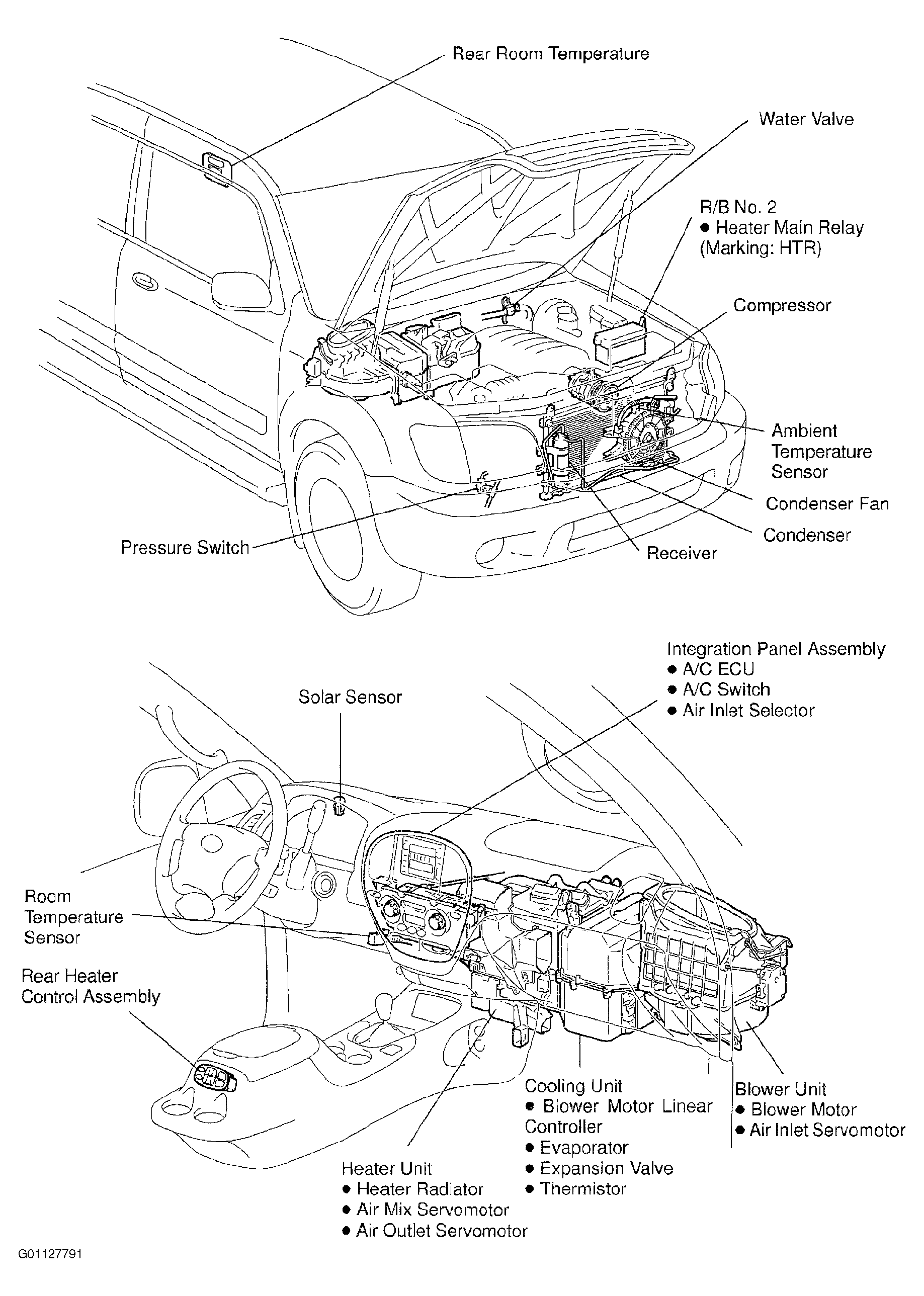

Fig 1: Locating A/C system components Engine & Passenger Compartment
