Oil Pump: Removal

Drain engine oil .
Remove front exhaust pipe .

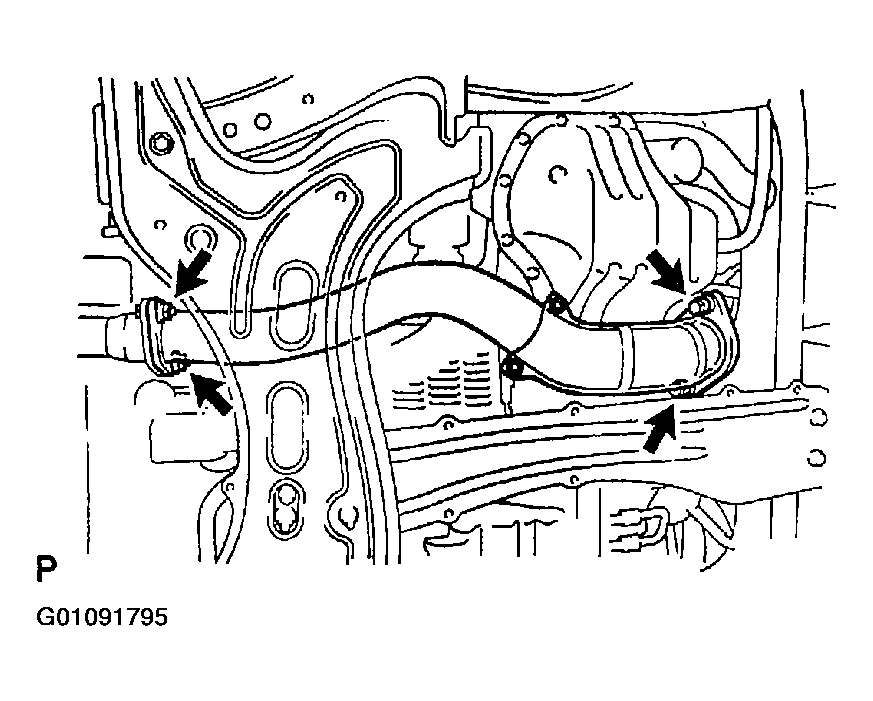

Fig 1: Displaying Front Exhaust Pipe Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove 4 bolts, 2 compression springs, 2 gaskets and front exhaust pipe.
Remove RH engine under cover.
Remove oil pan.
1. Remove the 12 bolts and 2 nuts.

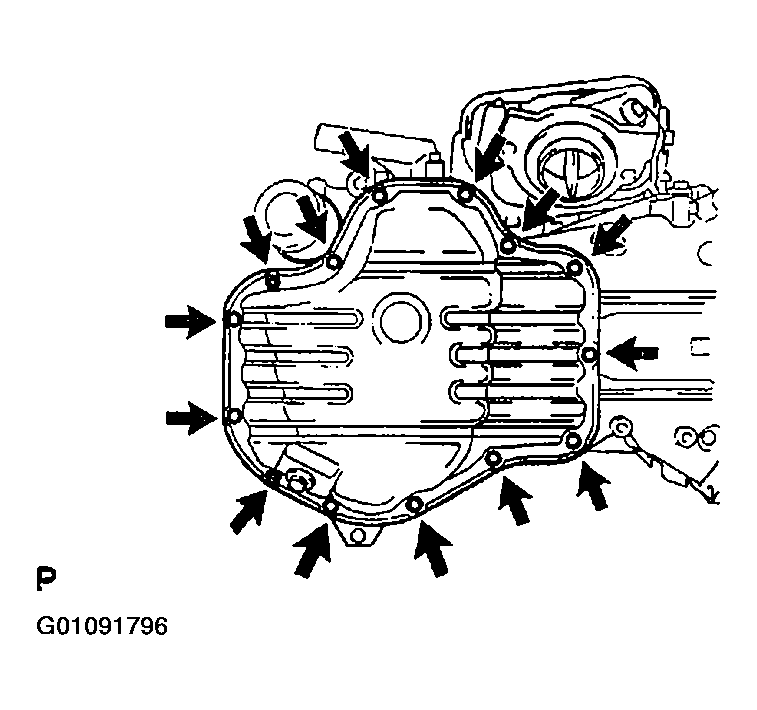

  Fig 2: Removing Oil Pan Bolts & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

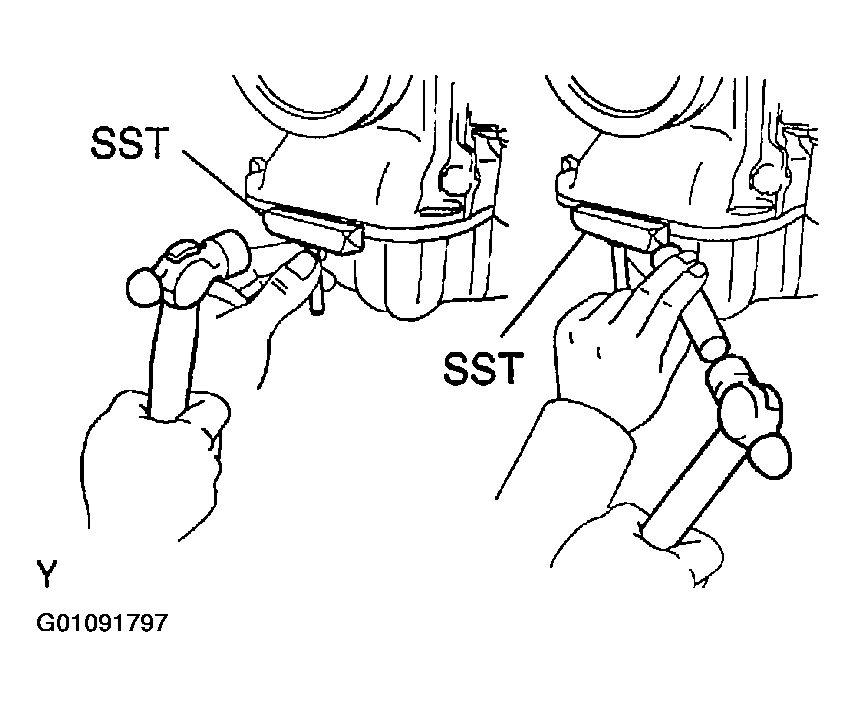

2. Insert the blade of SST between the crank case and oil pan, and timing chain cover and oil pan, cut off applied sealer and remove the oil pan.
  1. SST 09032-00100
NOTE: Be careful not to damage the contact surface of the timing chain cover, crank case and oil pan.
Remove air cleaner assembly (See REMOVAL ) .
Remove ABS actuator (See ACTUATOR/ABS ECU ).
Remove RH engine mounting insulator (See REMOVAL ) .
Remove timing chain and crankshaft timing sprocket (See REMOVAL ) .
Remove oil pump drive chain and sprockets .
1. Set the crankshaft key into the left horizontal position.
2. Remove the bolt, chain tensioner plate and spring.

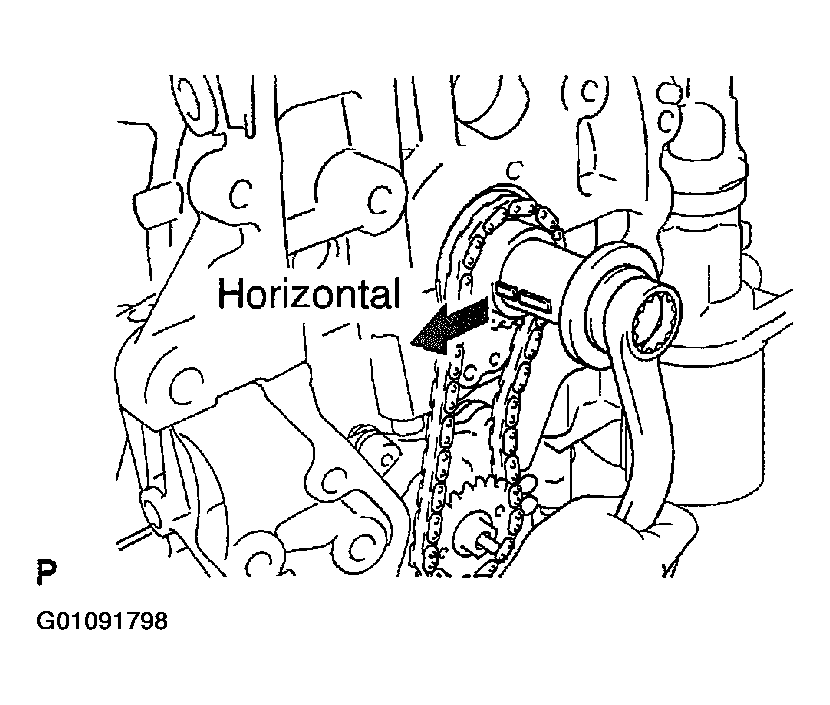

  Fig 4: Displaying Appropriate Crankshaft Setting
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, hold the oil pump drive shaft sprocket as shown in the illustration.
4. Remove the nut, 2 sprockets and drive chain.

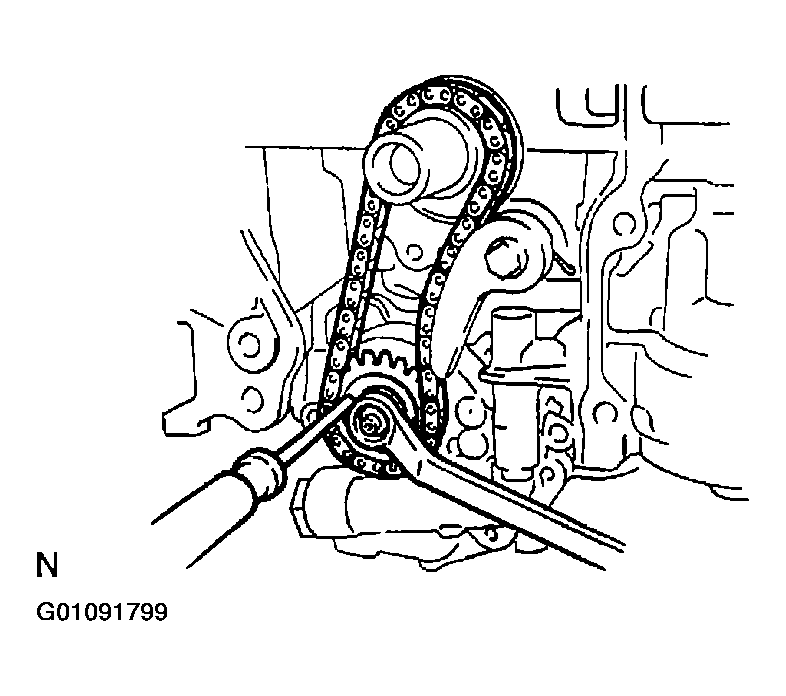

  Fig 5: Removing Sprockets & Drive Chain
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove oil pump .

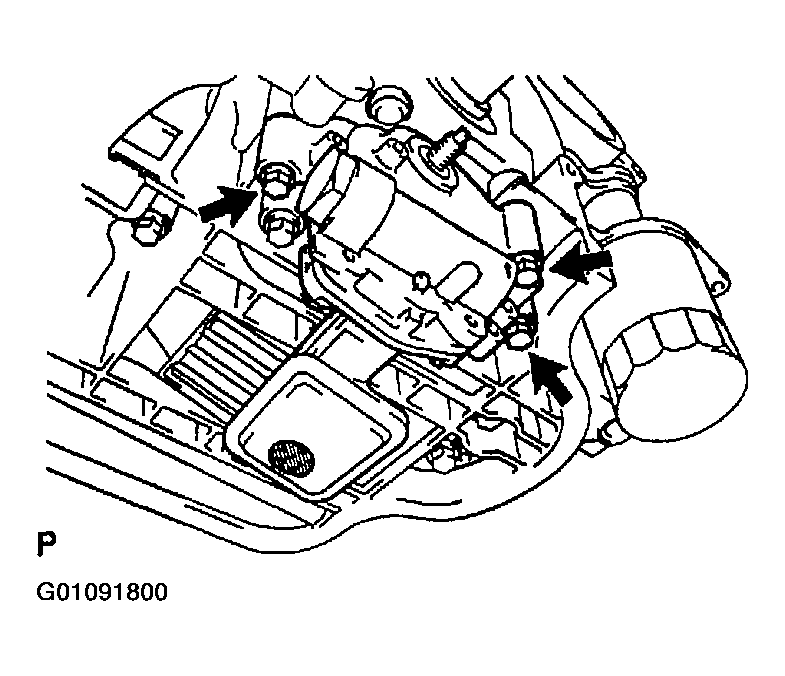

Fig 6: Removing Oil Pump
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 3 bolts, oil pump and gasket.
