Instrument Panel Junction & Relay Blocks
NOTE:

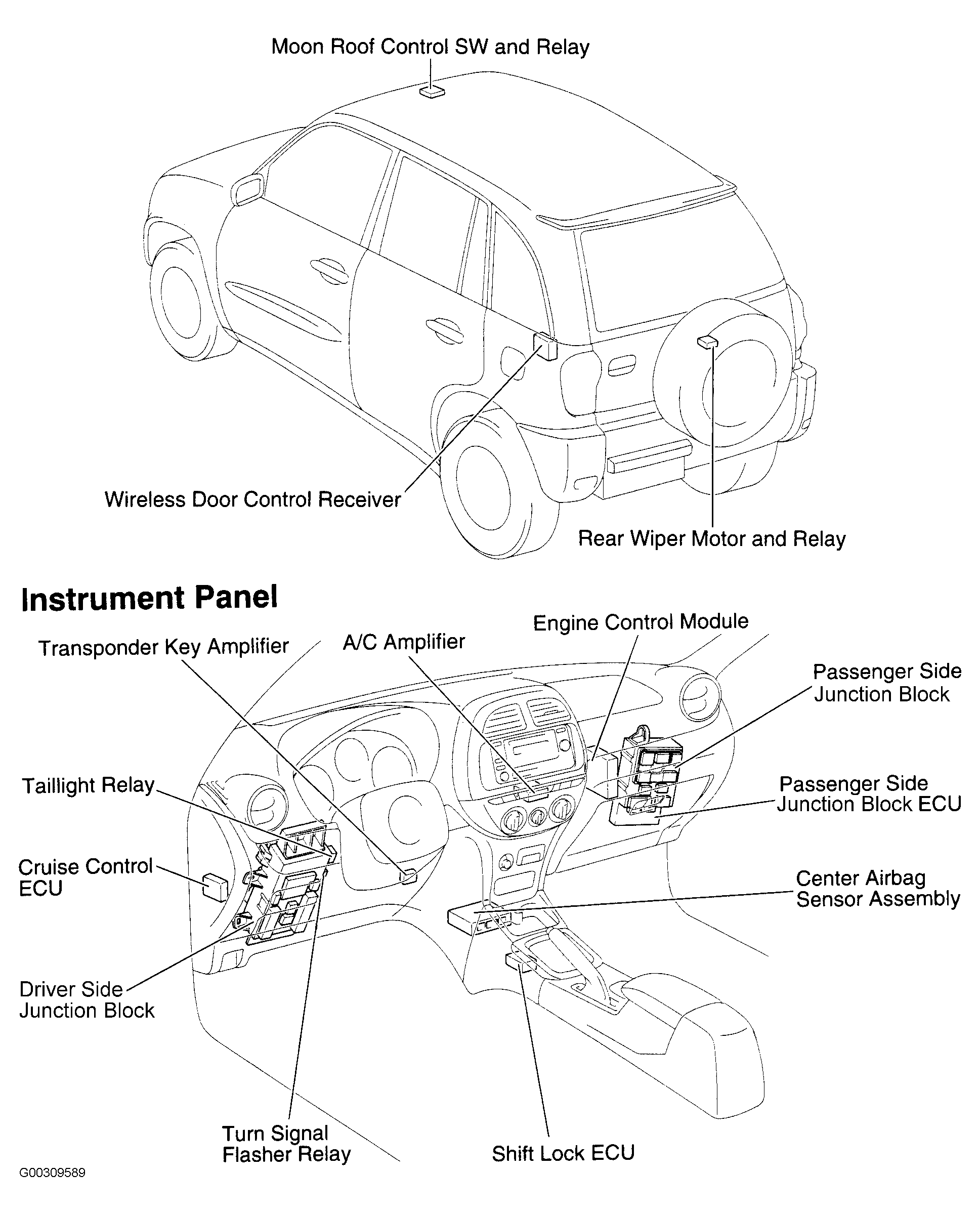

Numerous junction, relay and fusible link blocks are located in the instrument panel and passenger room area. See Fig 1. For identification of current flow, see Figure.
Component Locations

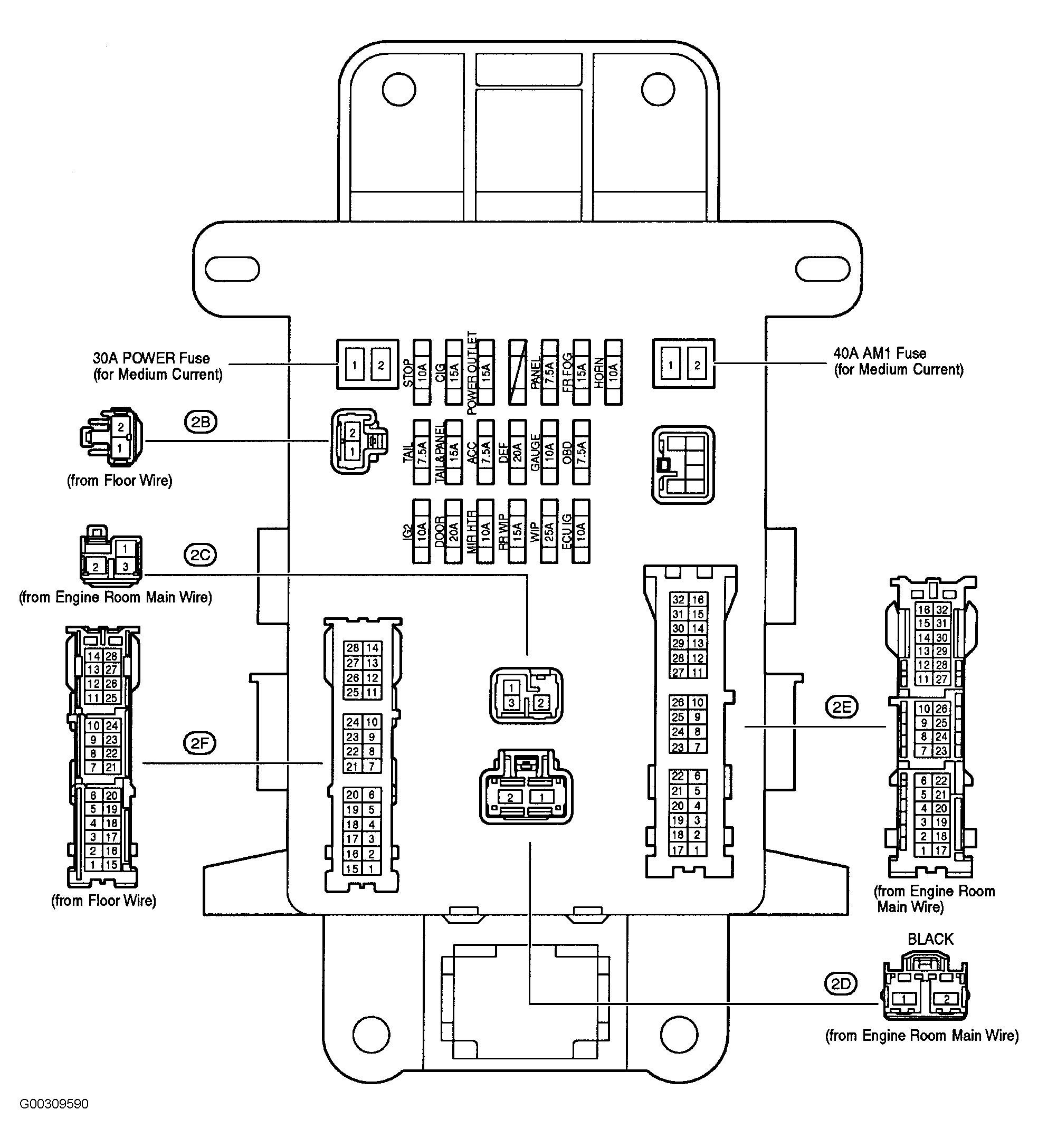

- The drivers side junction block is located behind left side of dash. See Fig 1. For identification of drivers side junction block components, see Fig 3, and Fig 2 . The drivers side junction block contains connectors, fuses, and relays. For drivers side junction block fuse components, see table below. The drivers side junction block is the connection point for various wiring harnesses, see. For wiring diagrams of components, see appropriate SYSTEM WIRING DIAGRAMS article in ELECTRICAL.
- The moon roof control relay is located above headliner on top front center of roof. See Fig 1. For wiring diagram of moon roof control relay circuit components, see POWER TOP/SUNROOF in SYSTEM WIRING DIAGRAMS article in ELECTRICAL.
- The rear wiper motor and relay is located on the tailgate. See Fig 1. For wiring diagram of rear wiper motor and relay circuit components, see WIPER/WASHER in SYSTEM WIRING DIAGRAMS article in ELECTRICAL.
- The tail light relay is located behind left side of dash, right of steering column. See Fig 1. For wiring diagram of tail light relay circuit components, see EXTERIOR LIGHTS in SYSTEM WIRING DIAGRAMS article in ELECTRICAL.
- The turn signal flasher relay is located behind left side of dash, right of steering column. See Fig 1. For wiring diagram of turn signal flasher relay circuit components, see EXTERIOR LIGHTS in SYSTEM WIRING DIAGRAMS article in ELECTRICAL.
PASSENGER ROOM RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Moon Roof Control SW and Relay |
| Rear Wiper Motor and Relay |
| Taillight Relay |
| Turn Signal Flasher Relay |

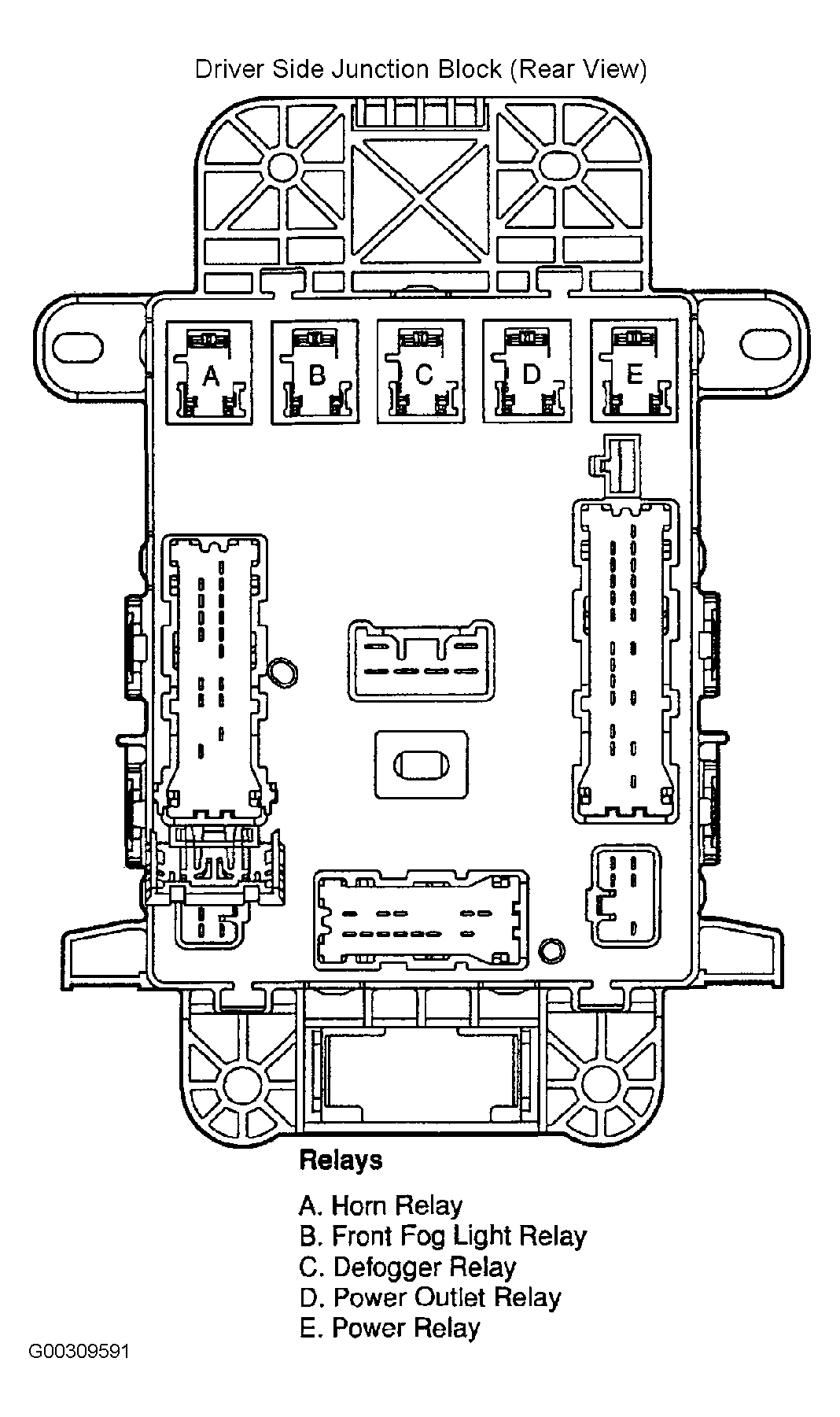

DRIVERS SIDE JUNCTION BLOCK RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| A. | Horn Relay |
| B. | Front Fog Light Relay |
| C. | Defogger Relay |
| D. | Power Outlet Relay |
| E. | Power Relay |
DRIVERS SIDE JUNCTION BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | ACC | Air Conditioning Clock Door Lock Control Interior Light Radio and Player Remote Control Mirror Shift Lock Wireless Door Lock Control |
| 7.5A | OBD | Engine Control |
| 7.5A | PANEL | Air Conditioning Clock Combination Meter Front Fog Light Illumination Key Reminder and Light Reminder Buzzer Rear Window Defogger and Mirror Heater Taillight |
| 7.5A | TAIL | Engine Control Taillight |
| 10A | ECU IG | ABS Air Conditioning Combination Meter Cruise Control Engine Control Key Reminder and Light Reminder Buzzer Power Window Rear Window Defogger and Mirror Heater Seat Belt Warning Shift Lock SRS Turn Signal and Hazard Warning Light |
| 10A | GAUGE | ABS Air Conditioning Back-Up Light Charging Combination Meter Cruise Control Door Lock Control Electronically Controlled Transmission and A/T Indicator Engine Control Headlight Illumination |
| 40A | AM1 | Rear Window Defogger and Mirror Heater |
| 10A | GAUGE | Interior Light Moon Roof Power Window Radiator Fan and Condenser Fan Taillight Wireless Door Lock Control |
| 10A | HORN | Horn |
| 10A | IG2 | ABS Charging Combination Meter Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control SRS Stalling and Ignition |
| 10A | MIR HTR | Rear Window Defogger and Mirror Heater |
| 10A | STOP | ABS Cruise Control Electronically Controlled Transmission and A/T Indicator Engine Control Shift Lock Stop Light |
| 15A | CIG | Cigarette Lighter |
| 15A | FR FOG | Front Fog Light |
| 15A | POWER OUTLET | Power Outlet |
| 15A | RR WIP | Rear Wiper and Washer |
| 15A | TAIL&PANEL | Air Conditioning Clock Front Fog Light Illumination Key Reminder and Light Reminder Buzzer Rear Window Defogger and Mirror Heater Taillight |
| 20A | DEF | Engine Control Rear Window Defogger and Mirror Heater |
| 20A | DOOR | Door Lock Control Interior Light Moon Roof Power Window Wireless Door Lock Control |
| 25A | WIP | Front Wiper and Washer |
| 30A | POWER | Moon Roof Power Window |
