Power Steering Vane Pump: Installation

  1. Install PS vane pump assembly  .
    1. Insert the mounting bolt A to the PS vane pump assembly.

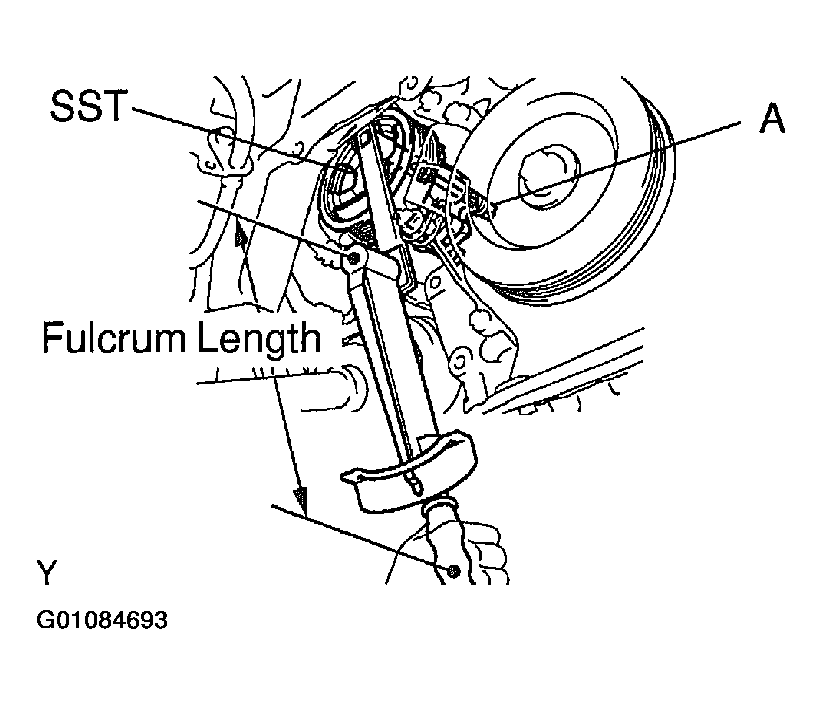

      2. Fig 1: Installing PS Vane Pump Assembly
      G01084693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Set the PS vane pump assembly in installation position.
    3. Using SST, install and torque the PS vane pump assembly mounting bolts.
      1. SST 09248-63010
        NOTE: Use a torque wrench with a fulcrum length of 345 mm (13.58 in.).
      2. Torque: 30 N.m (305 kgf. cm, 22 ft. lbf)
  2. Connect oil pressure switch connector  .
    NOTE: Be careful to prevent oil from being attached to the connector.
  3. Connect pressure feed tube  .

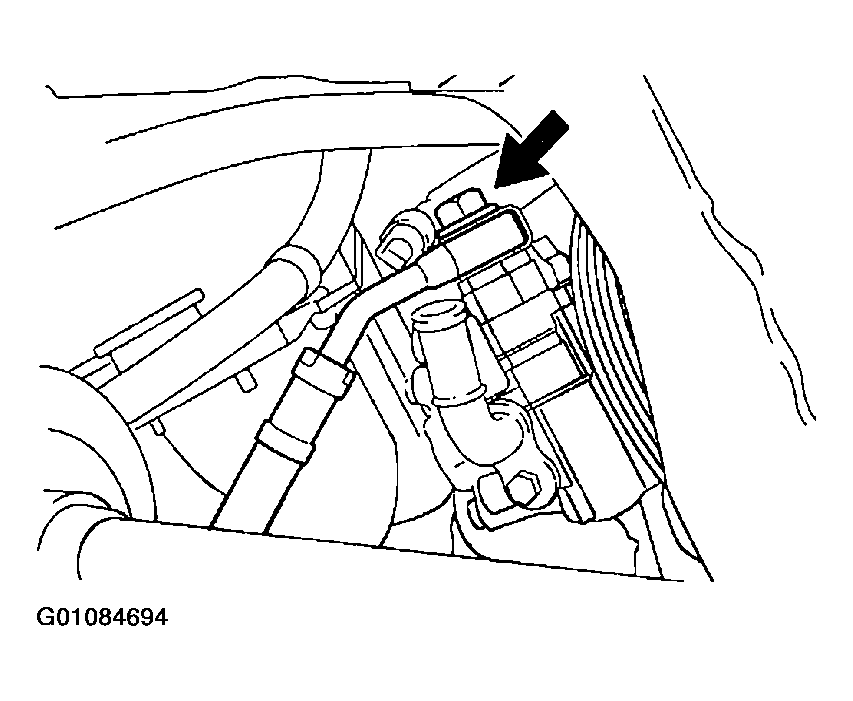

    Fig 2: Locating Pressure Feed Tube Bolt
    G01084694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Connect the pressure feed tube with the union bolt and new gasket.

    1. Torque: 51.5 N.m (525 kgf. cm, 38 ft. lbf)

  4. Connect suction hose  .

    Connect the suction hose with the clip.

  5. Install drive belt  .

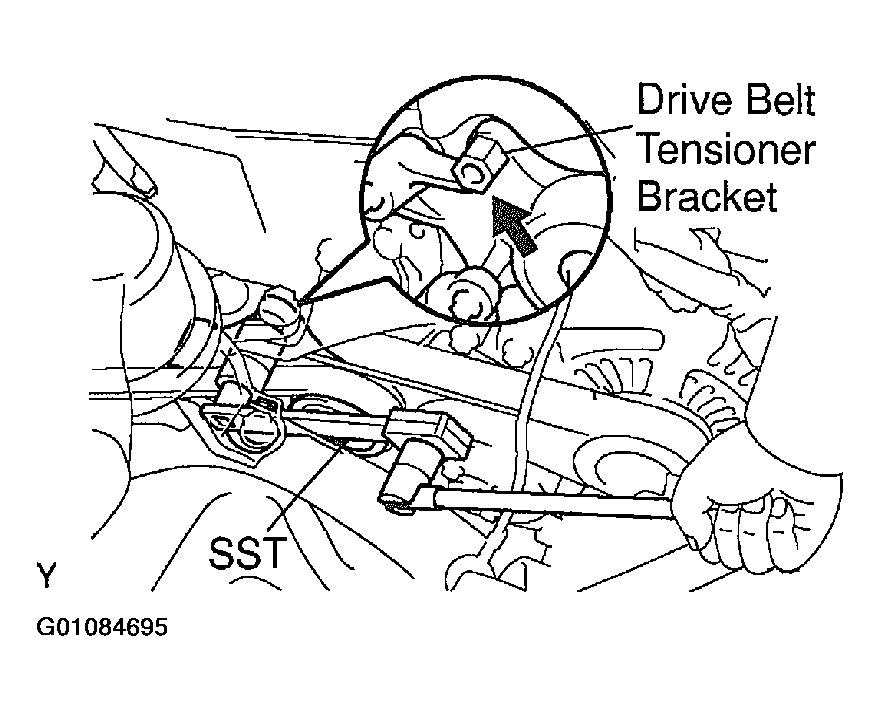

    Fig 3: Locating Drive Tensioner Bracket
    G01084695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Hook SST on the hexagonal portion of the drive belt tensioner bracket and slowly compress the drive belt tension by turning the drive belt tensioner bracket clockwise, and install the drive belt.

    1. SST 09249-63010

    NOTE: Compress the drive belt tensioner by taking 3 seconds or more and installing the drive belt.
  6. Install RH engine under cover  .
  7. Bleed power steering system (See  BLEEDING  )  .
