Transfer Unit: Components

WARNING: This page is about a different car, the 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

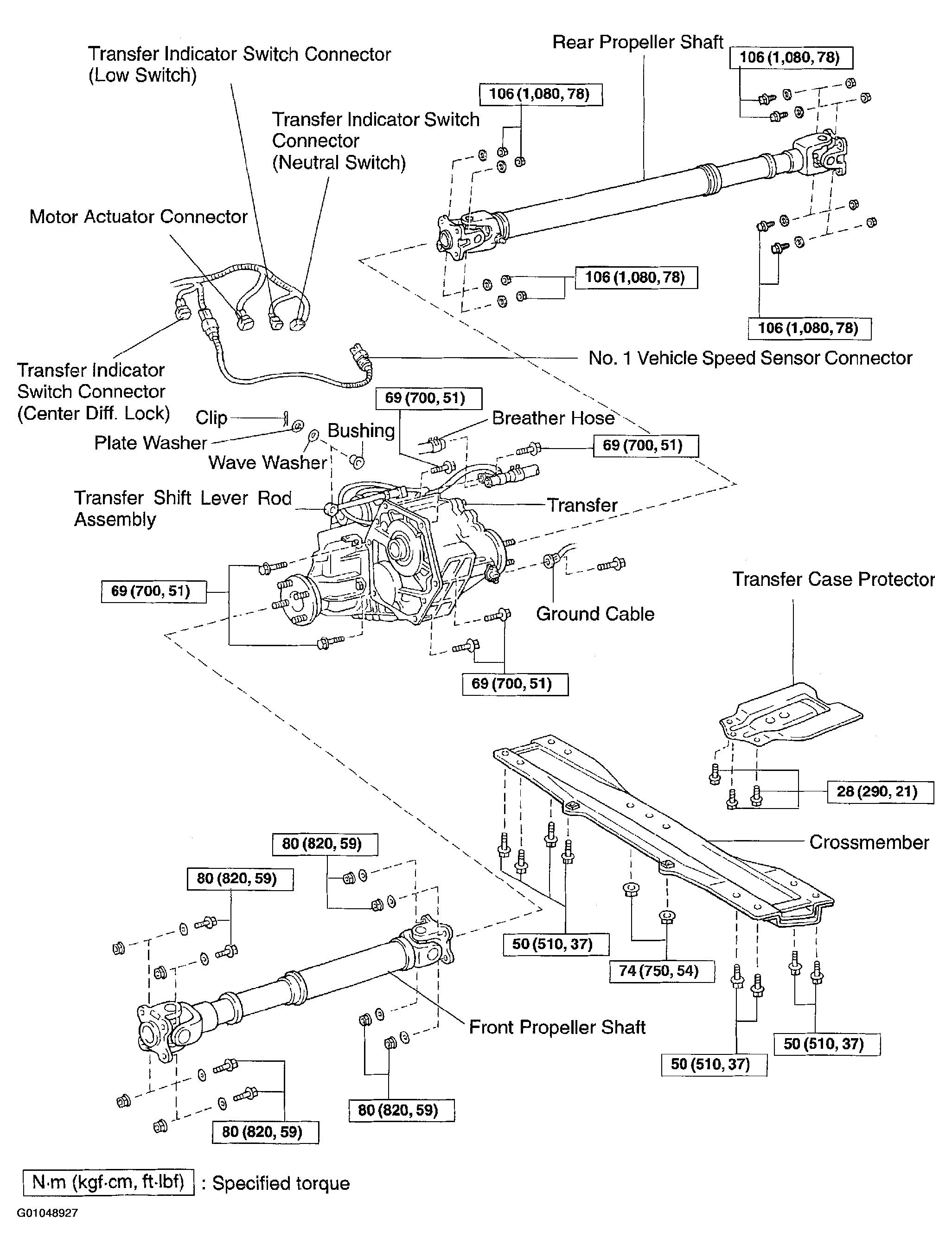

Fig 1: Identifying Components for Transfer Removal
G01048927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
