Transfer Assembly: Components

WARNING: This page is about a different car, the 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

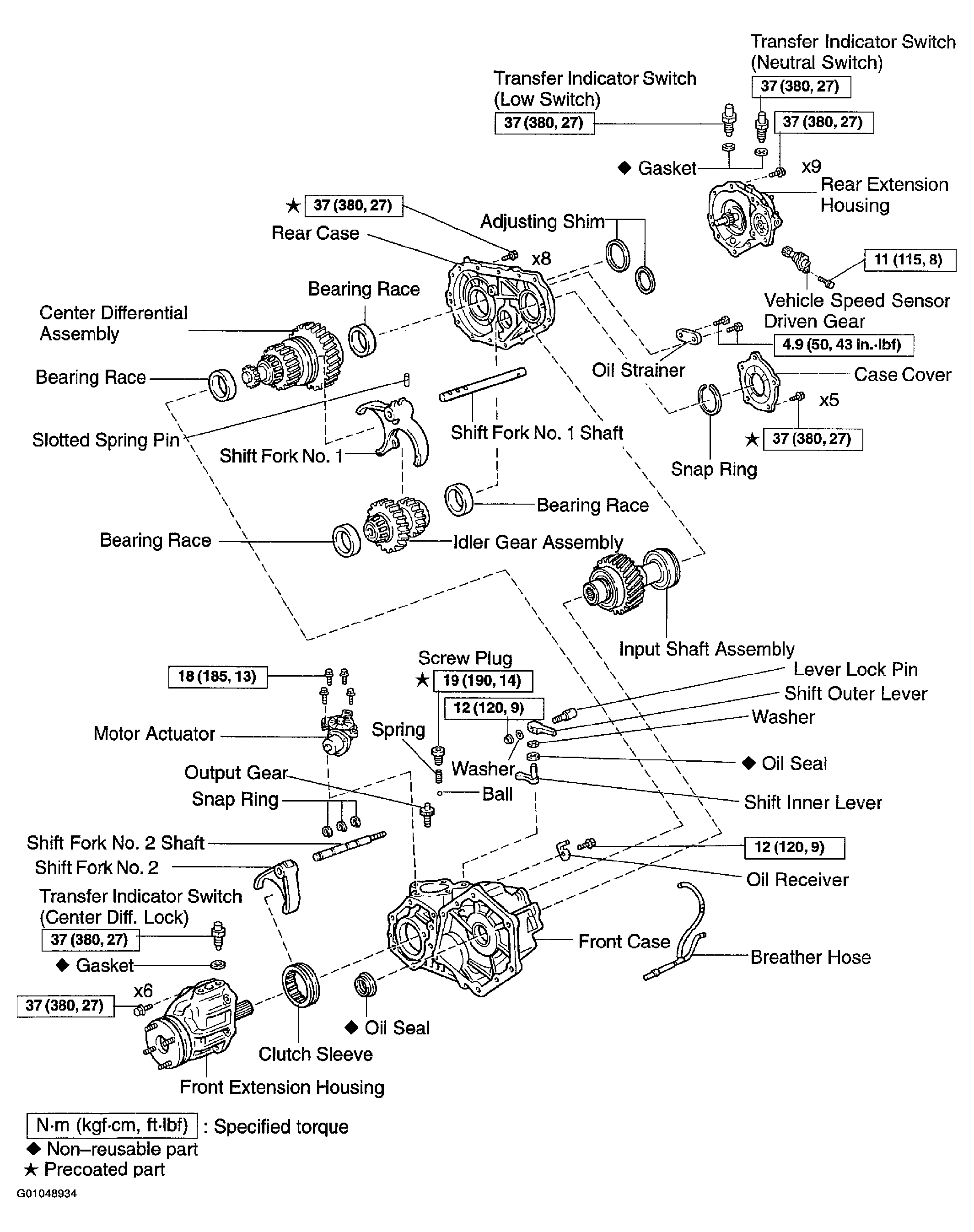

Fig 1: Exploded View Of Transfer Assembly
G01048934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
