Rear Seat: Reassembly

  1. Install rear seat inner belt  .

    Torque: 42 N.m (420 kgf.cm, 30 ft..lbf)

  2. Install center belt  .

    Torque: 42 N.m (420 kgf.cm, 30 ft..lbf)

  3. Install seat cushion under cover  .

    Place the under cover, seat track and cushion frame temporarily and then fix the under cover with the 5 screws.

  4. Install seat track  .
  5. Install seat lock lever  .

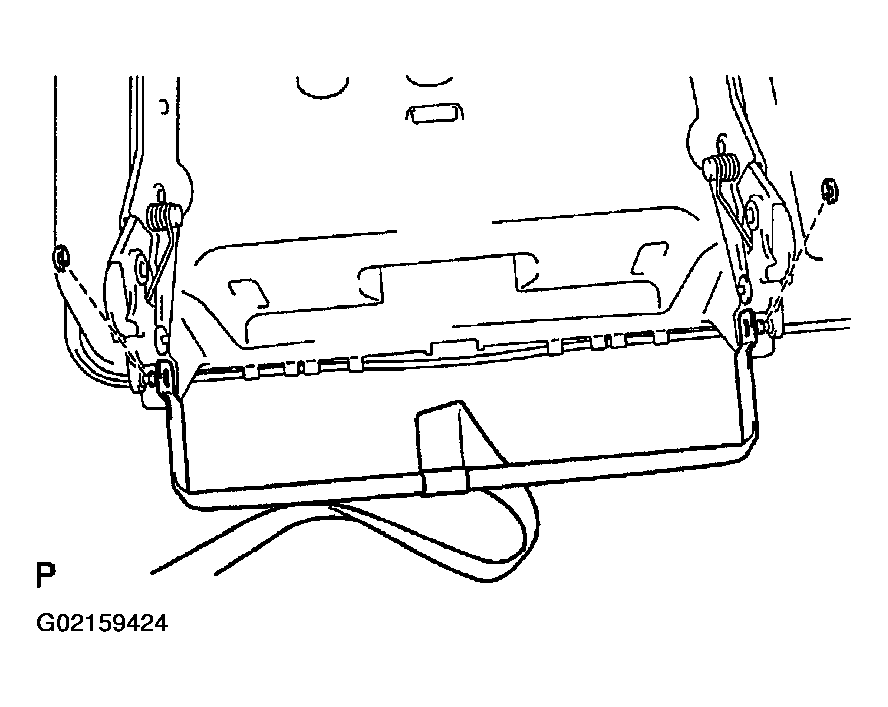

    Fig 1: Install Seat Lock Lever
    G02159424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Install the seat lock lever with the 2 E-rings.

  6. Install seat track adjusting handle  .
    1. Install the seat cushion lock control rod with the E-ring.
    2. Install the cushion frame with the 6 nuts.

      Torque: 44 N.m (440 kgf.cm, 32 ft..lbf)

    3. Install the seat track adjusting handle.
  7. Install seat cushion cover  .
  8. Install reclining adjuster  .

    Install the reclining adjuster with the 4 bolts.

    Torque: 44 N.m (440 kgf.cm, 32 ft..lbf)

  9. Install reclining rod  .
  10. Install seatback cover  .
    1. Install the seatback cover to the seatback pad with new hog rings.
    2. Install the seatback lock control bezel with the screw.
    3. Install the reclining release handle with the nut.

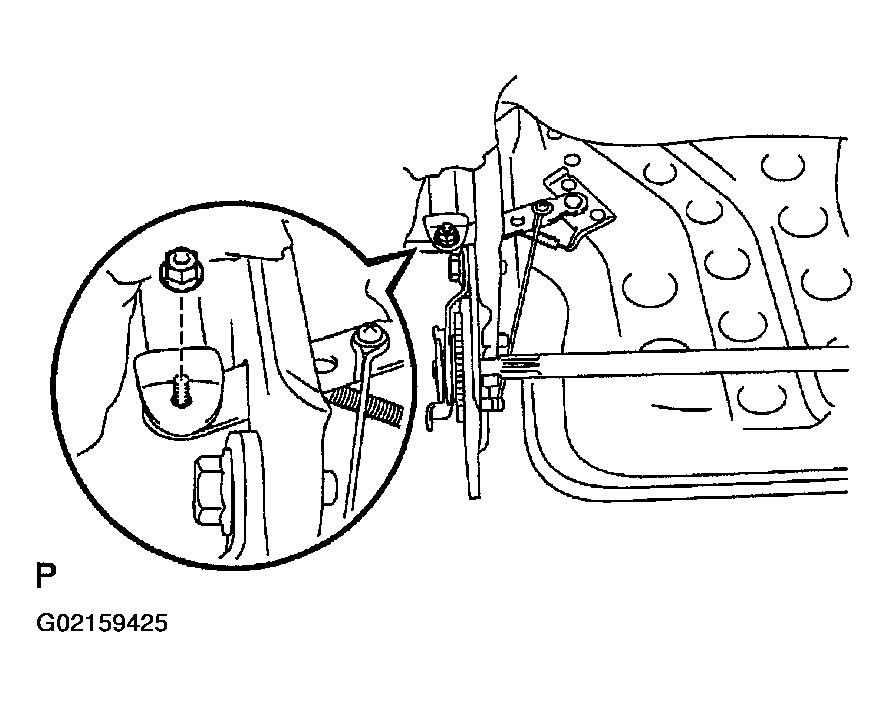

      Fig 2: Installing Reclining Release Handle
      G02159425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the headrest supports.
    5. Zip the seatback cover closed.
    6. Replace the seatback cover.
      Fig 3: Replacing Seatback Cover
      G02159426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. Install seatback assembly  .

    Install the rear seatback assembly with the 4 bolts.

    Torque: 44 N.m (440 kgf.cm, 32 ft..lbf)

  12. Install reclining lower cover  .
  13. Install reclining adjuster cover  .
  14. Install headrest  .
