Terminals Of ECM

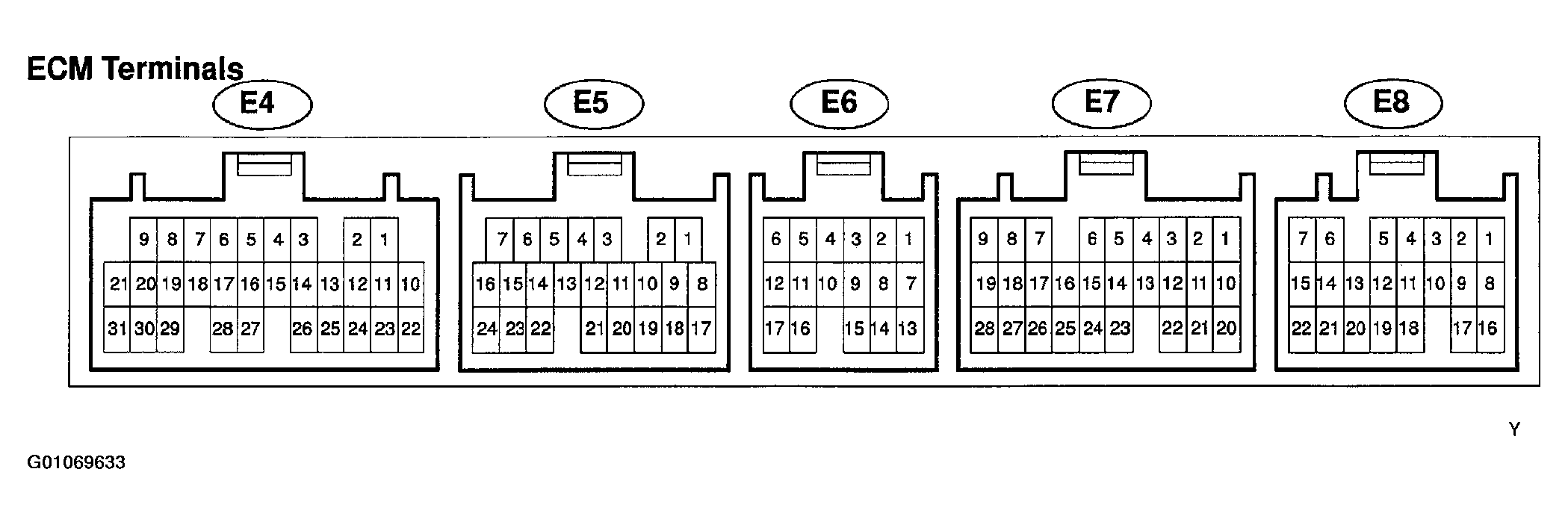

Fig 1: Identifying ECM Connectors & Terminals
G01069633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

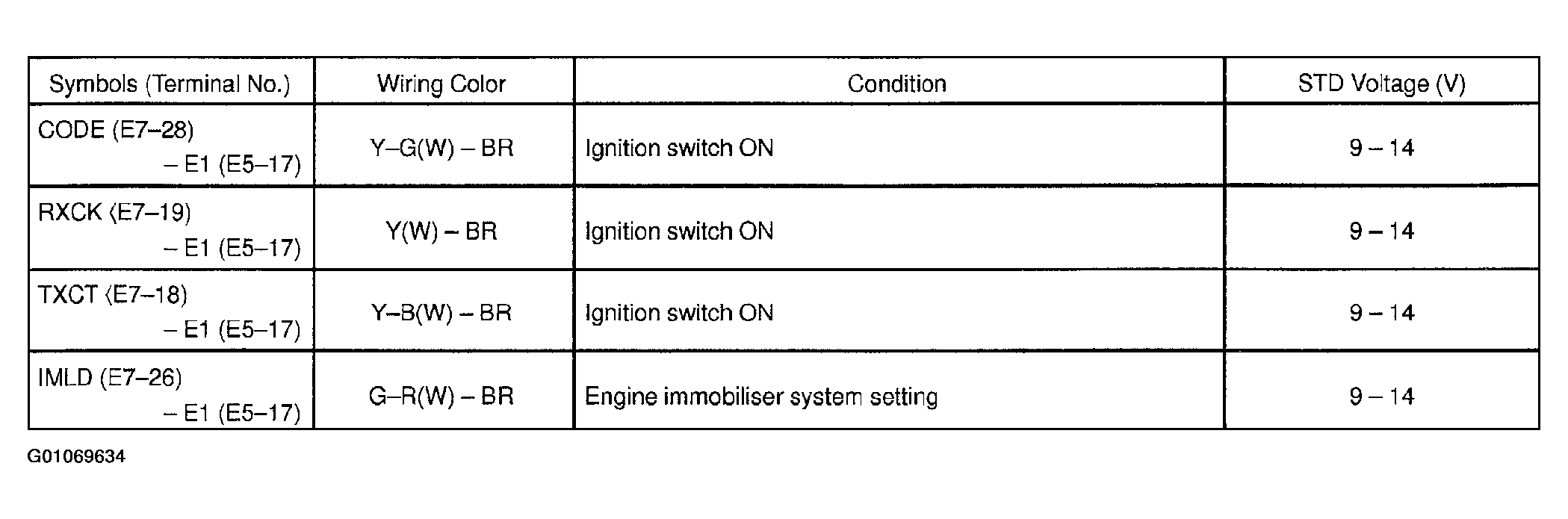

Fig 2: Identifying Engine Immobilizer Terminal Specifications
G01069634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
