Electric Power Steering Gear: Components

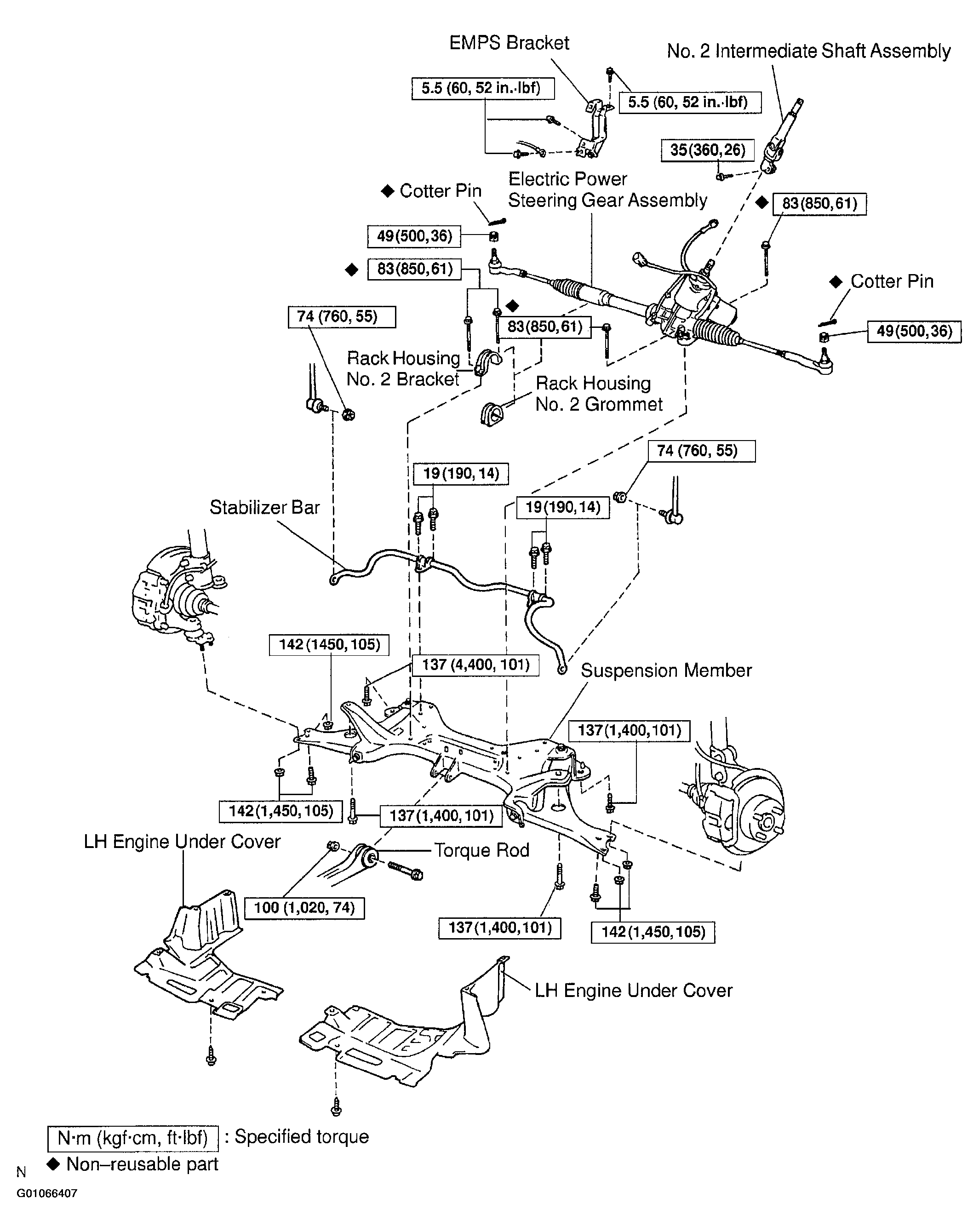

Fig 1: Locating Electric Power Steering Gear Related Components
G01066407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

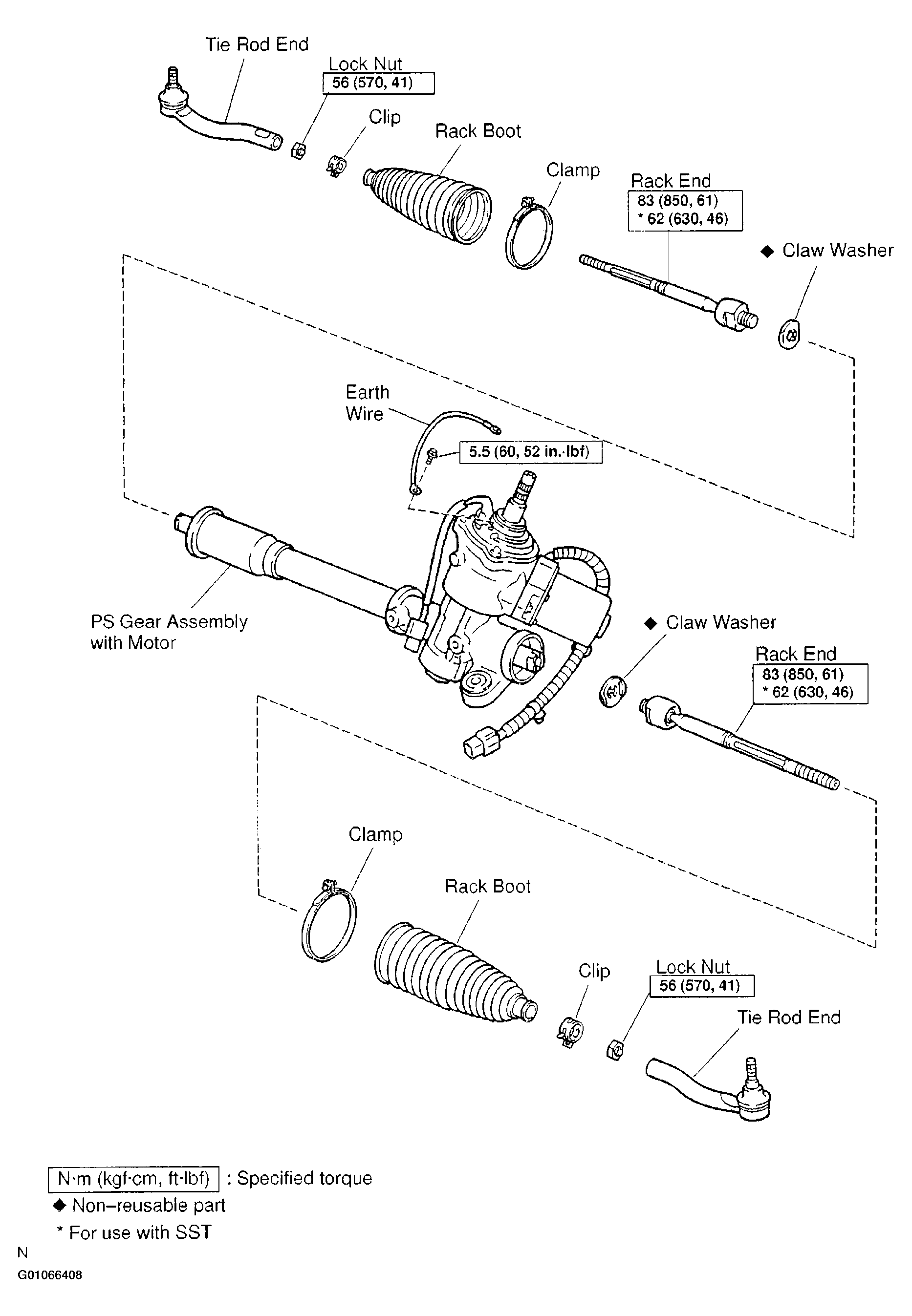

Fig 2: Exploded View Of Steering Gear Assembly
G01066408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
