Home >> Toyota >> 2002 >> Prius >> Repair and Diagnosis >> Restraints >> Seat Belts >> Seat Belt >> Components

Seat Belt: Components

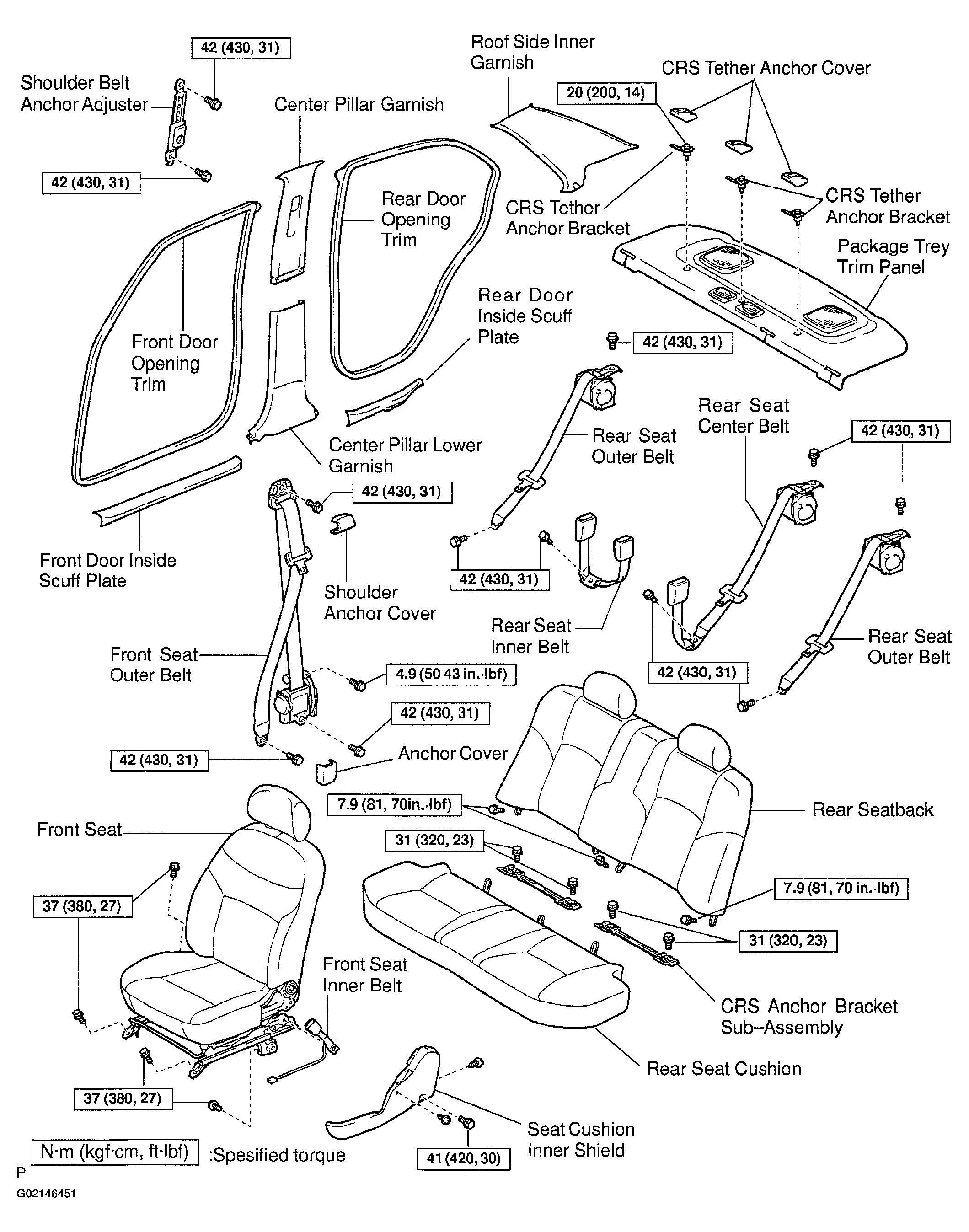

Fig 1: Identifying Seat Belt Related Components

G02146451

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
