Terminals Of Ecu
>>
Body Ecu
Body Ecu

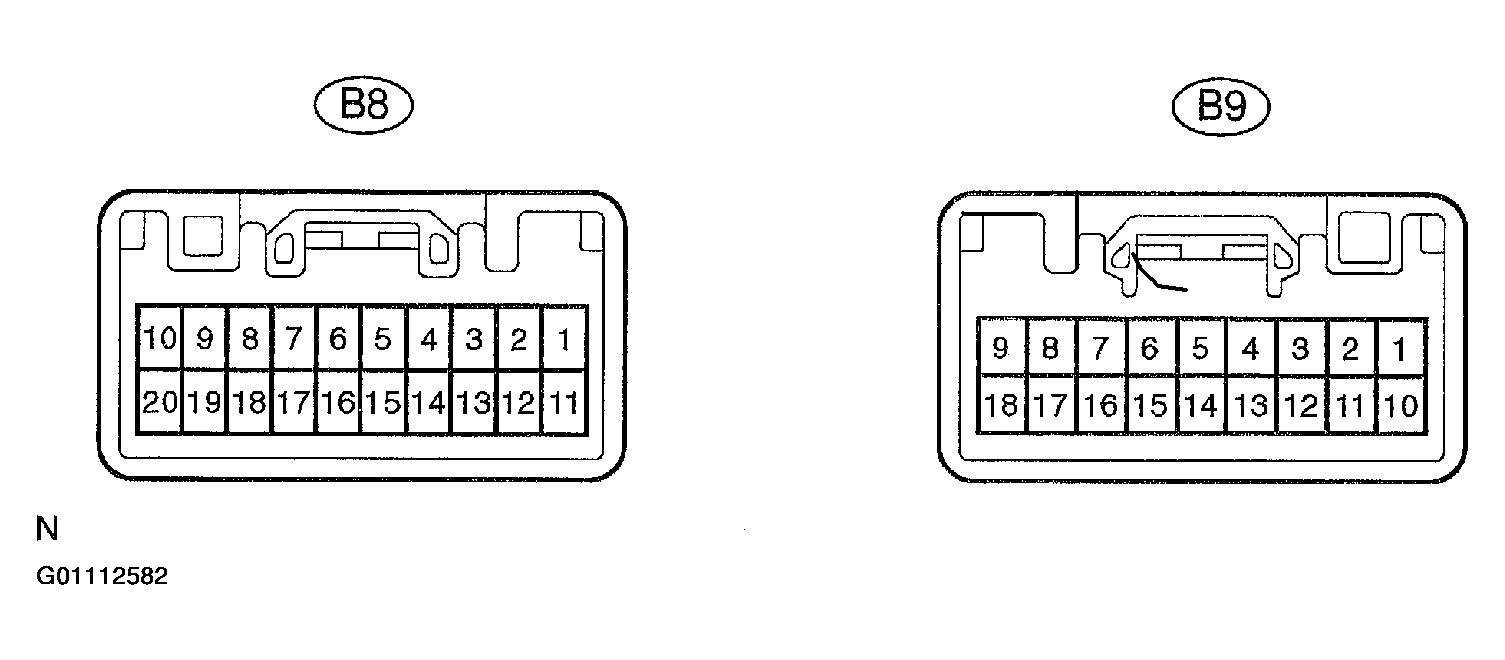

Fig 1: Identifying Body ECU Connector B8 & B9 Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

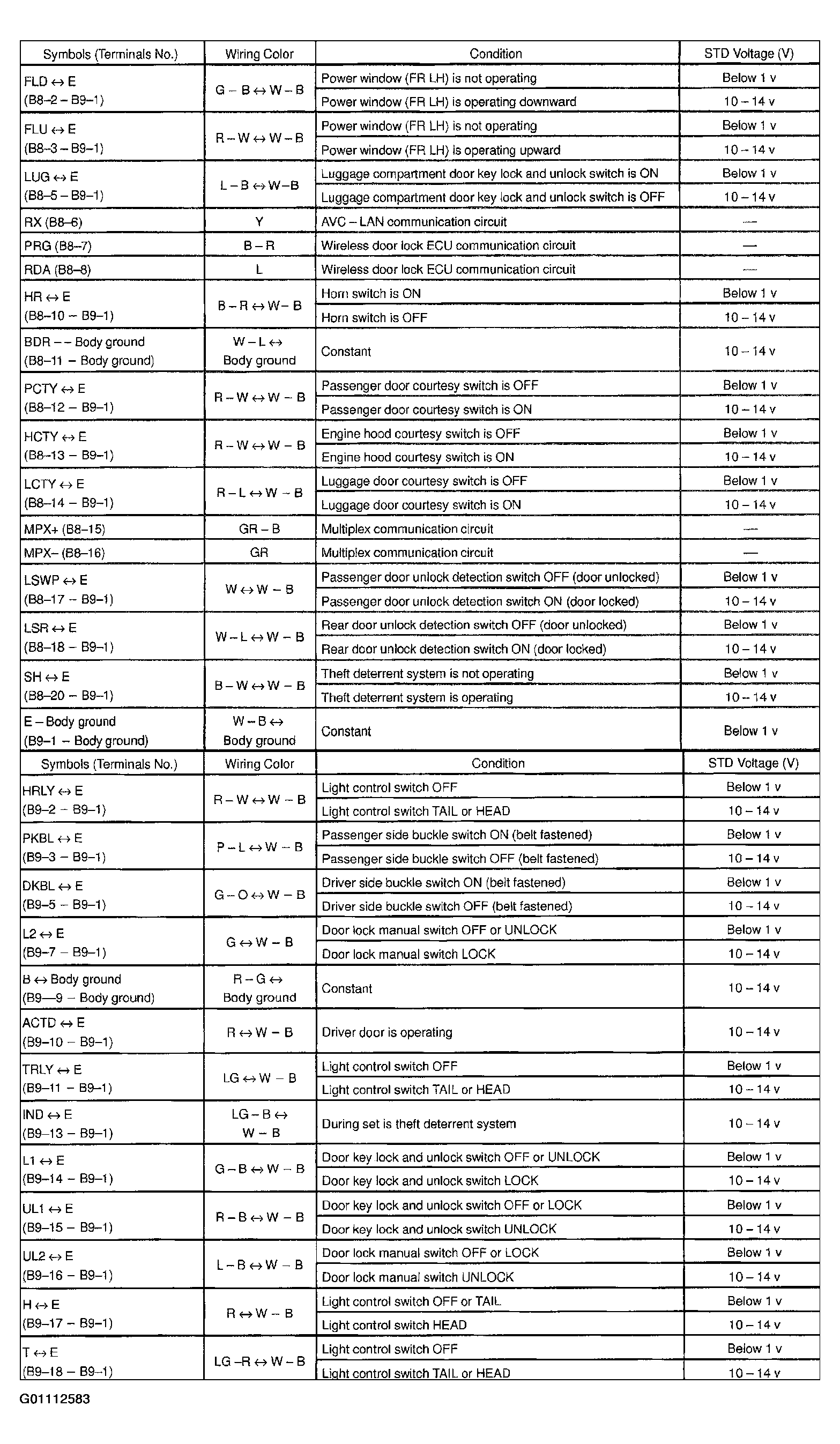

Fig 2: Body ECU Terminal Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
