Parts Location
Parts Location

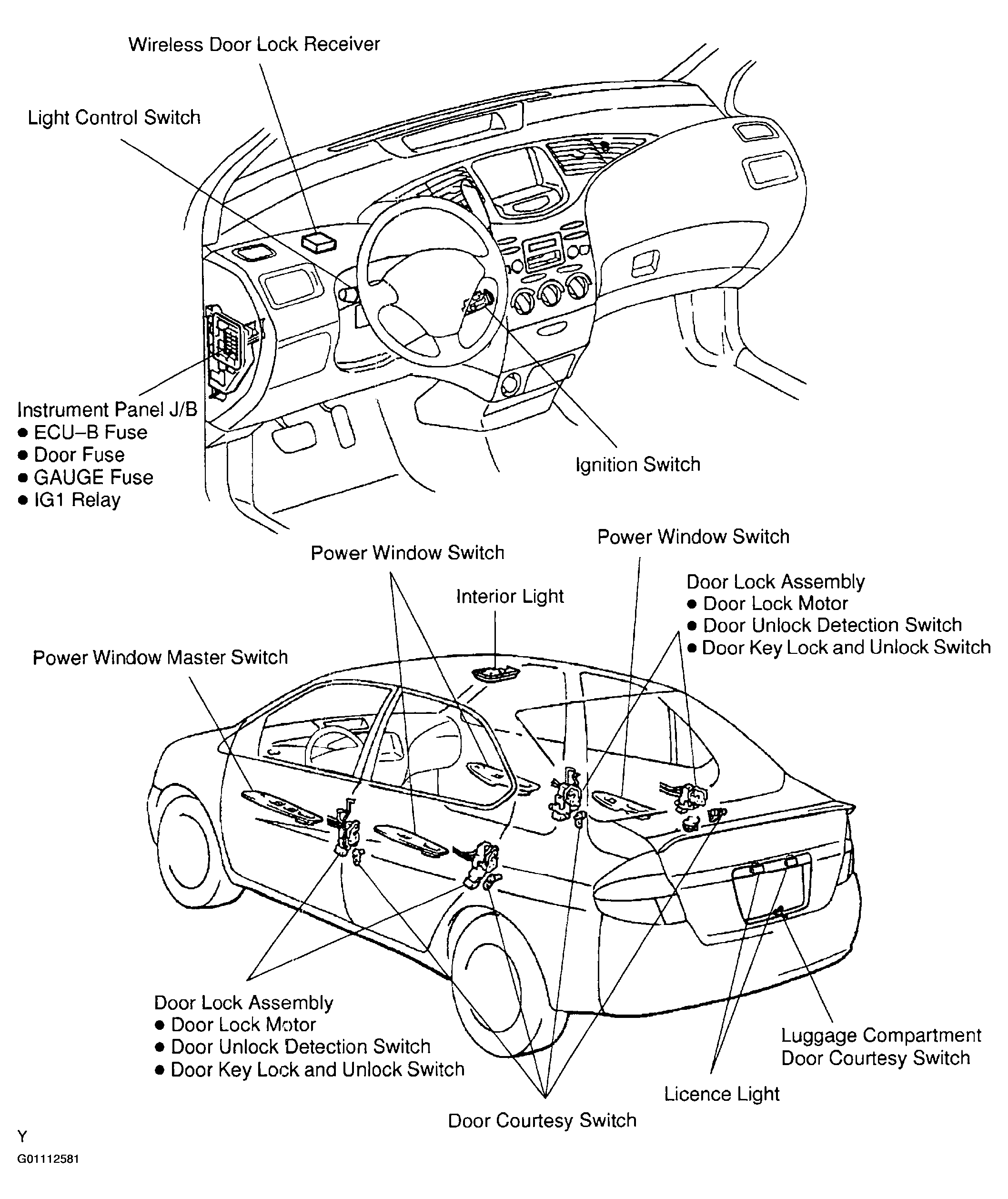

Fig 1: Locating Body Control System Related Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
