Radiator And Condenser Module Components

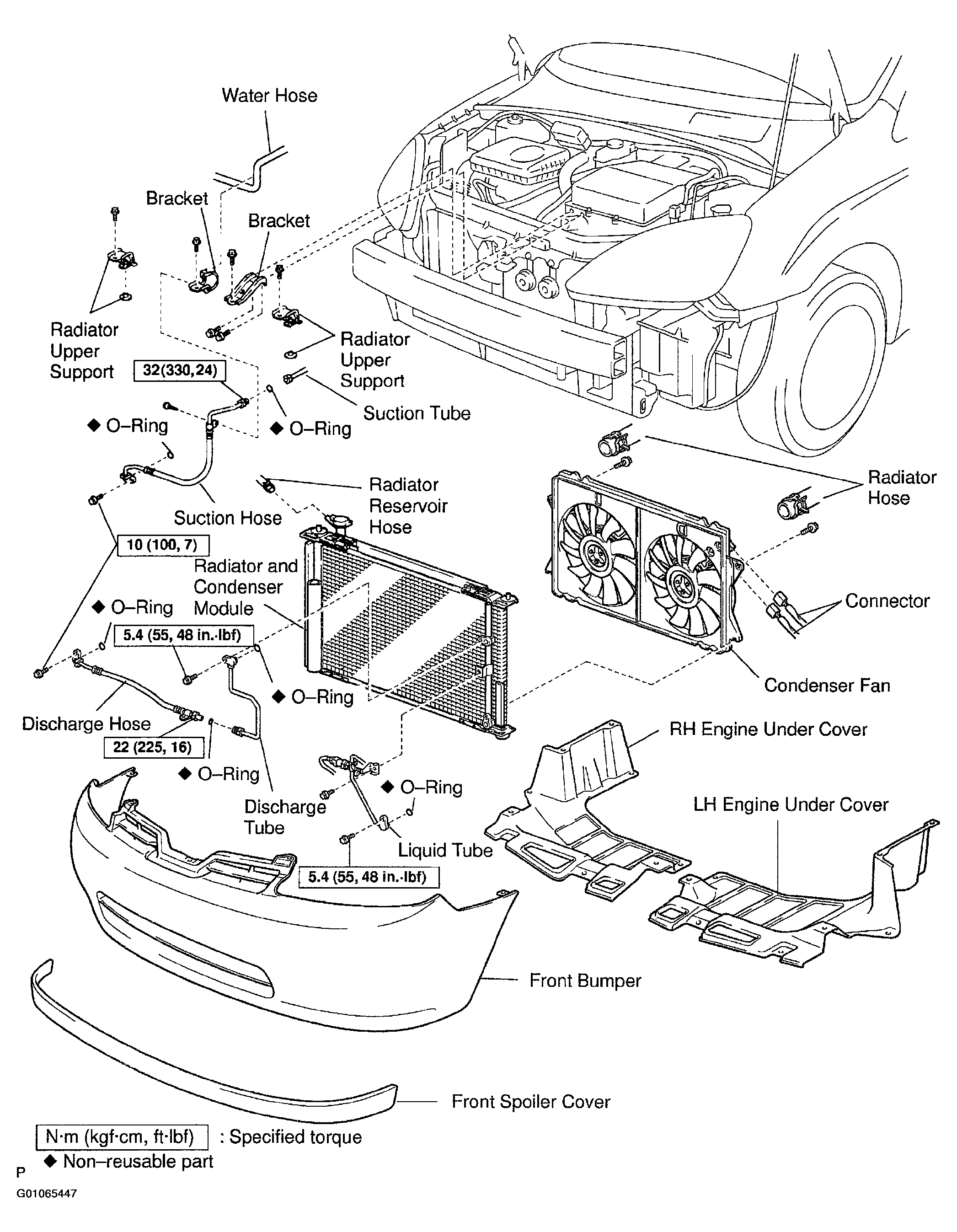

Fig 1: Locating Condenser Components (1 Of 2)
G01065447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

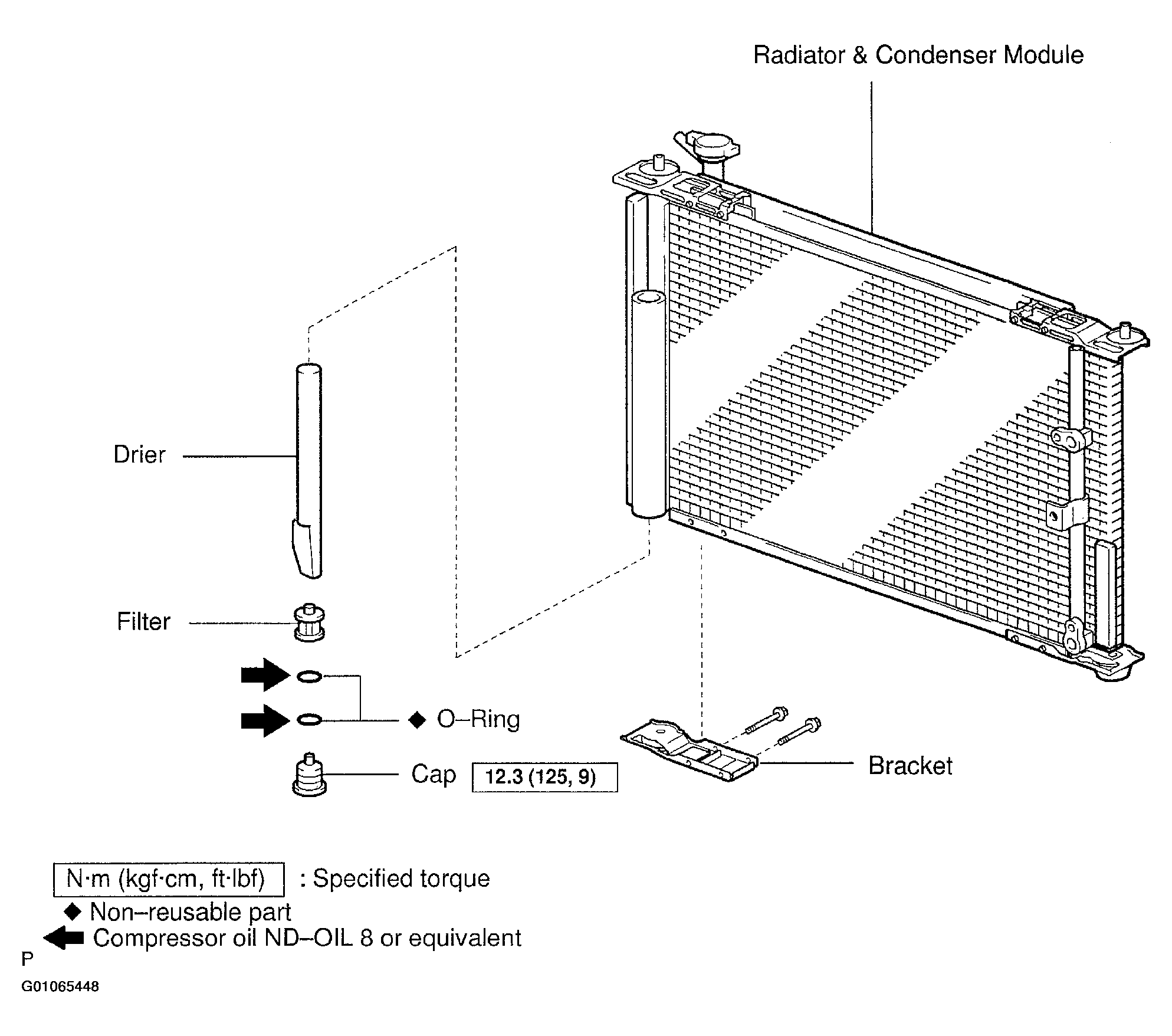

Fig 2: Locating Condenser Components (2 Of 2)
G01065448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
