Radiator & Condenser Module Components

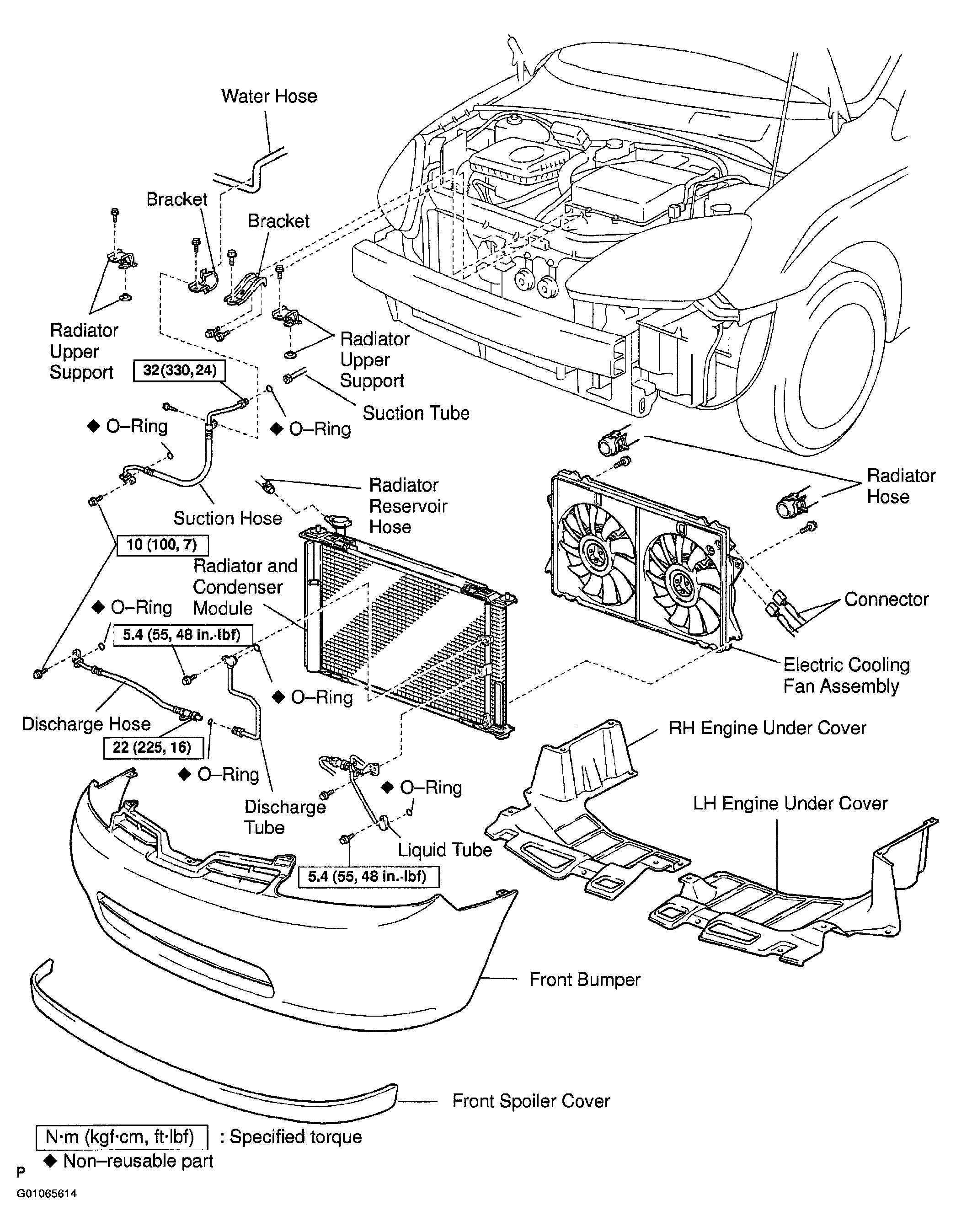

Fig 1: Locating Radiator & Condenser Module Related Components

G01065614

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
