Problem Symptoms

Use Fig 1 to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in the order shown. If necessary, repair or replace these parts.

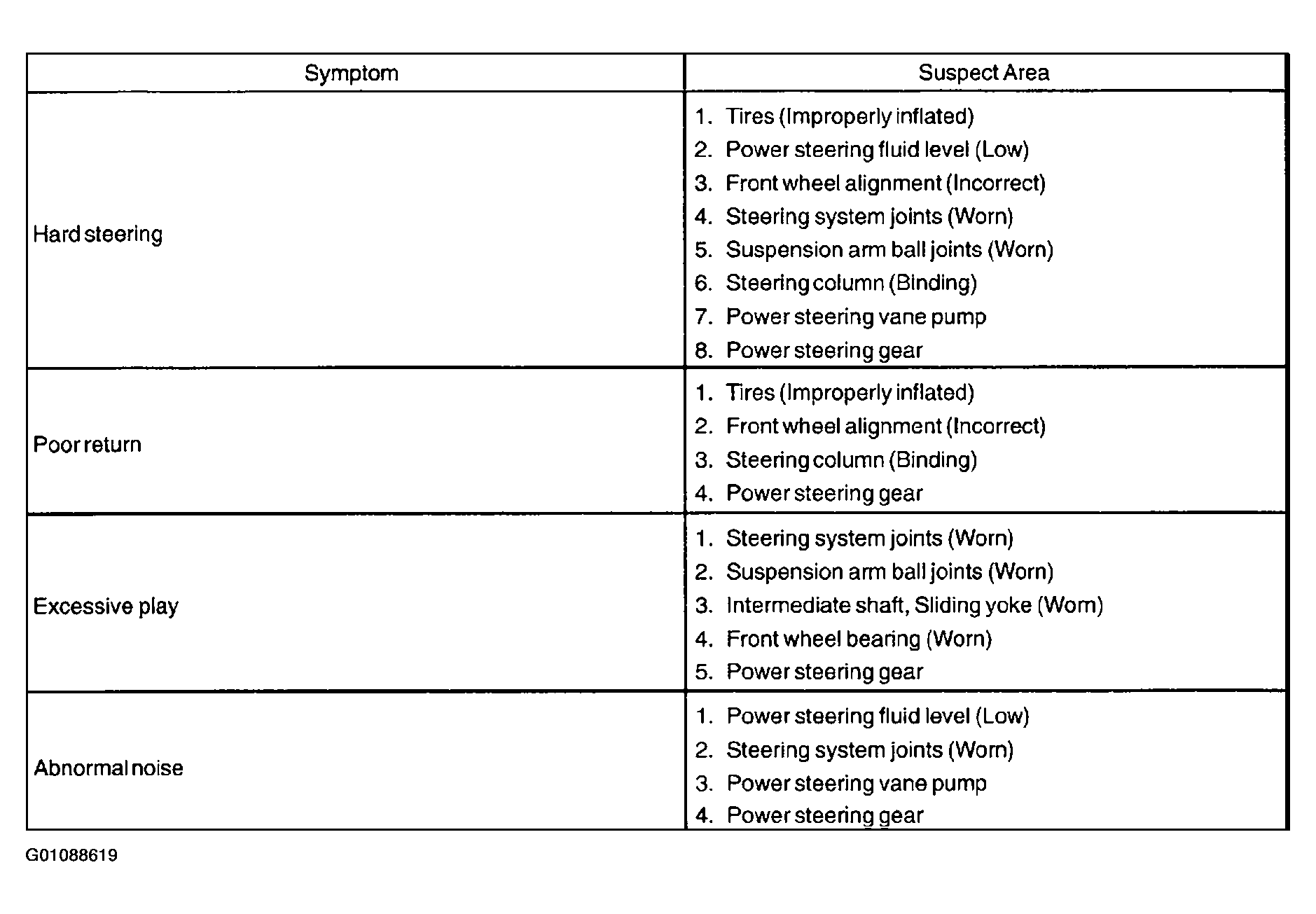

Fig 1: Identifying Suspect Area Based On Symptom

NOTE:

When the problem occurs on the Electro-Hydraulic Power Steering system, refer to HOW TO PROCEED WITH TROUBLESHOOTING .
