Tilt Steering Column: Reassembly

NOTE: When using a vise, do not overtighten it.

Coat parts indicated by arrows with molybdenum disulfide lithium base grease (See Figure and Figure ).
Install main shaft assembly.
1. Using a snap ring expander, install a new snap ring on the lower side.
2. Install the main shaft assembly.
3. Using a snap ring expander, install a new snap ring on the upper side.

  Fig 1: Installing New Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install main shaft bushing.
1. Coat a new bushing with molybdenum disulfide lithium base grease.
2. Using SST and a hammer, tap in the main shaft bushing.
  SST 09608-04031

  Fig 2: Installing Main Shaft Bushing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install break away bracket and tilt lever.
1. Install the No. 2 support collar to the break away bracket.
2. Install the break away bracket, tilt lever lock bolt, stopper and tilt lever.
  NOTE: Align the holes in the column tube with the projections of the tilt lever lock bolt and stopper.
3. Install the adjusting nut by rotating it counterclockwise in the specified torque so that the locking load (load applied to when a knob is operated) of the tilt lever will be 38 - 82 N (3.9 - 8.4 kgf, 8.5 - 18.4 lbf).
  Torque: 9 N.m - 14 N.m (90 kgf.cm - 145 kgf.cm, 80 in.lbf -10 ft.lbf)
4. Install the No. 1 support reinforce with the No. 2 tilt lever lock bolt by turning it counterclockwise.

  Fig 4: Installing No. 1 Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

  NOTE: Align the No. 1 support reinforce with the nut to eliminate looseness by turning the No. 1 support reinforce counterclockwise a little, then torque the No. 2 tilt lever lock bolt.
5. Install the tilt spring.

  Fig 5: Installing Tilt Springs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install No. 1 support collars and bracket spacer.
1. Install 2 new No. 1 support collars.

  Fig 6: Installing Support Collars
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Install the white support collar to the RH side, black support collar to the LH side.

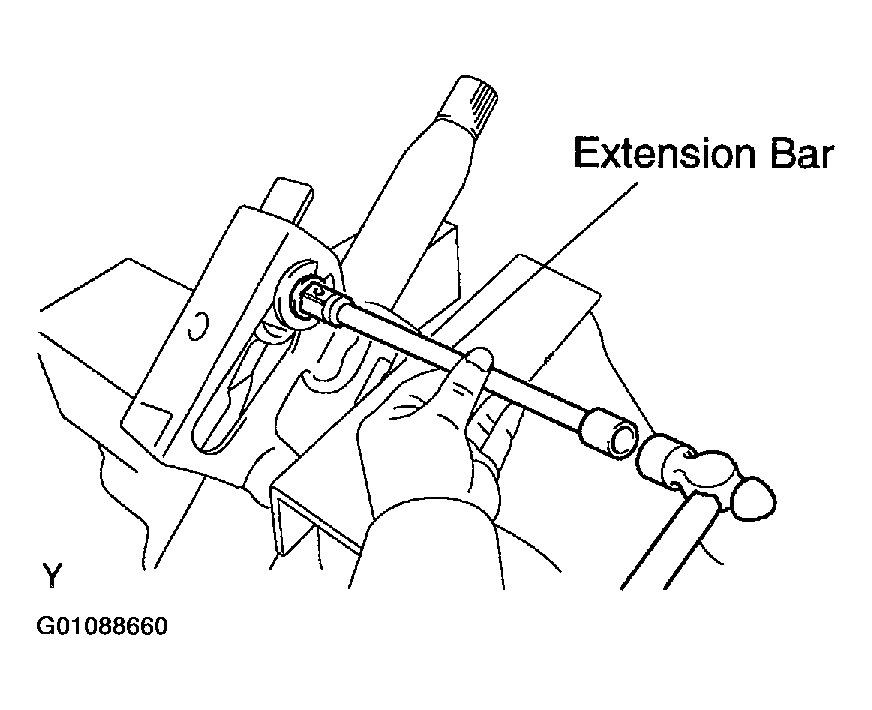

2. Using an extension bar and a hammer, drive in the bracket spacer.
Install tilt steering support.
Install the tilt steering support with the bolt.

Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

NOTE: Make sure that the tilt steering support is installed facing in the correct direction.
Install column upper bracket and column upper clamp.
1. Install the column upper bracket and column upper clamp with 2 new tapered-head bolts.

  Fig 8: Installing Column Upper Bracket & Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

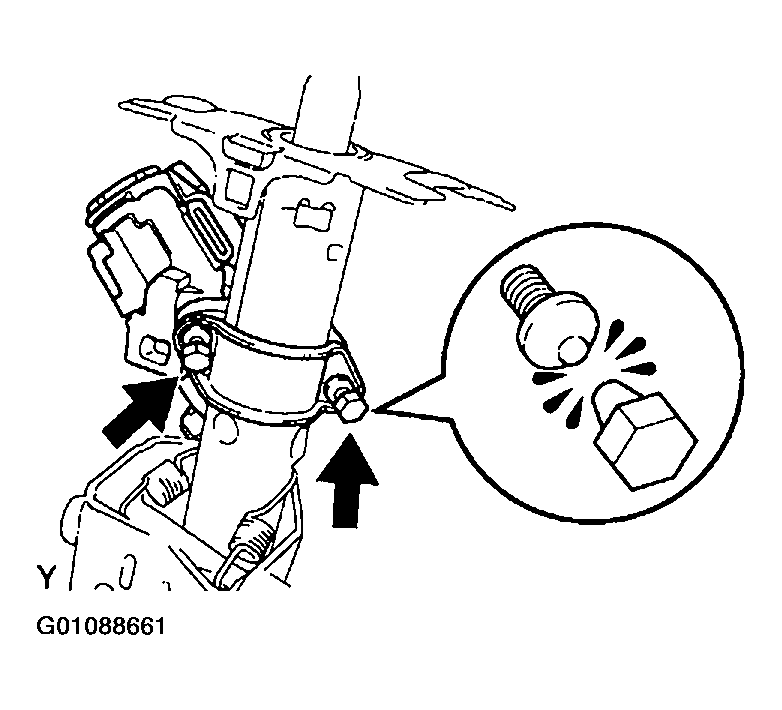

2. Tighten the 2 tapered-head bolts until the bolt heads break off.
Install transponder key amplifier with coil.
1. Align the transponder key amplifier with the installation position of the upper bracket with the amplifier inclined.
2. Push the transponder key amplifier up and connect it to the upper bracket.

  Fig 9: Installing Transponder Key Amplifier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Take care not to push the amplifier up with excessive force to prevent it from being damaged.
