Tilt Steering Column: Inspection

Inspect steering lock operation.
Check that the steering lock mechanism operates properly.

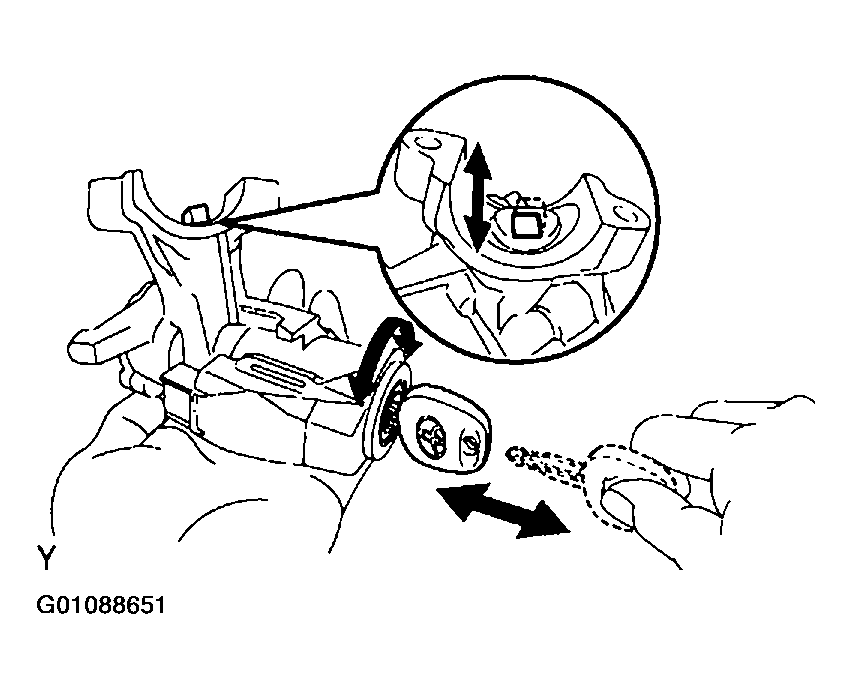

Fig 1: Confirming Steering Lock Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If necessary, replace key cylinder.
1. Place the ignition key at the ACC position.
2. Push down the stop pin with a screwdriver, and pull out the cylinder.
3. Install a new cylinder.
NOTE: Make sure the key is at the ACC position.
Inspect ignition switch (See INSPECTION ).
If necessary, replace ignition switch.
1. Remove the 2 screws and ignition switch from the column upper bracket.
2. Install a new ignition switch with the 2 screws.
Inspect key unlock warning switch (See INSPECTION ).
If necessary, replace key unlock warning switch.
1. Slide the key unlock warning switch out of the column upper bracket.
2. Slide a new key unlock warning switch in the column upper bracket.
Inspect bearing.
Check the bearing rotation condition and check for abnormal noise.

Fig 3: Checking Bearing Condition
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the bearing is worn or damaged, replace the column tube.
