Tilt Steering Column: Components

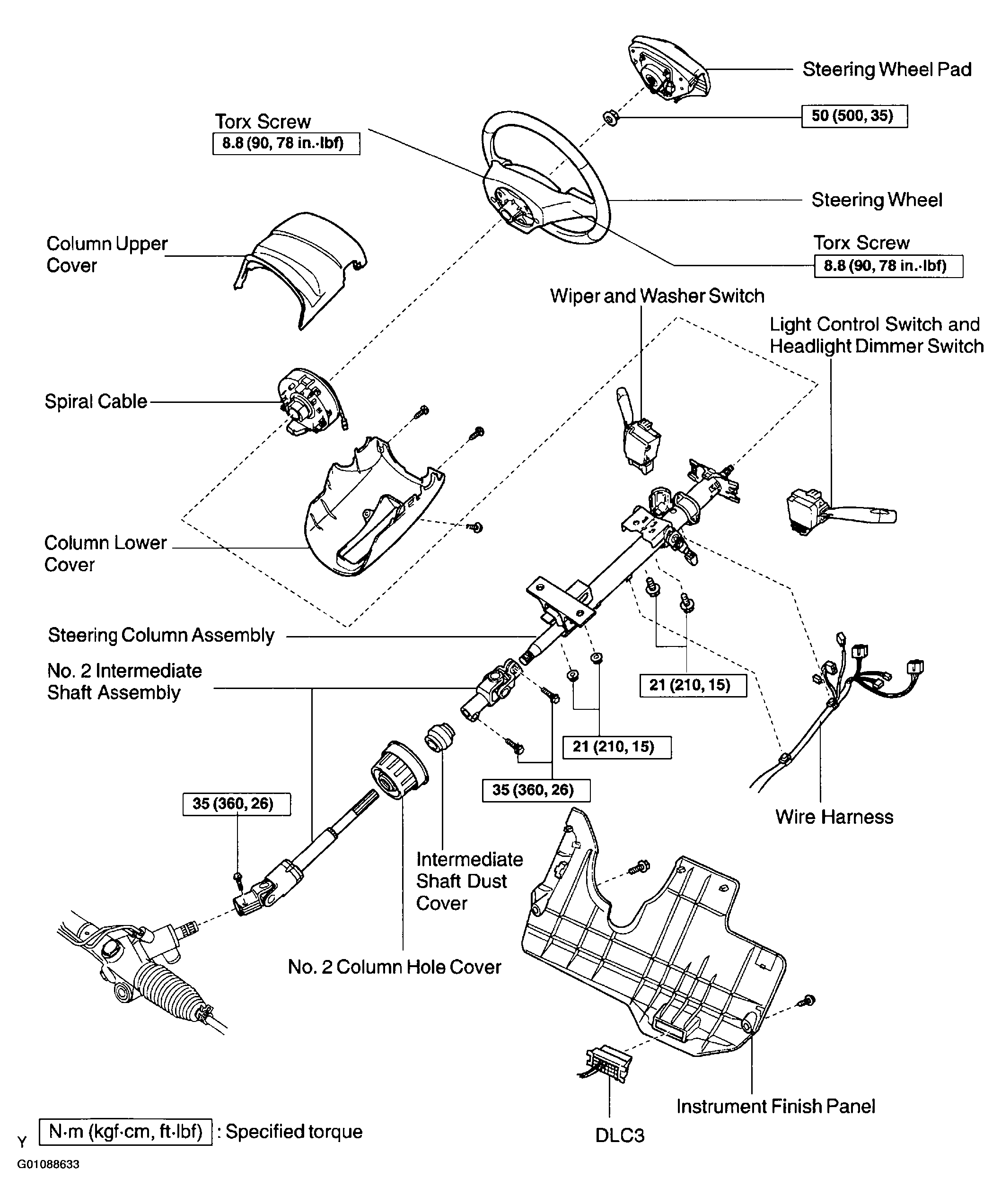

Fig 1: Identifying Tilt Steering Column Components
G01088633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

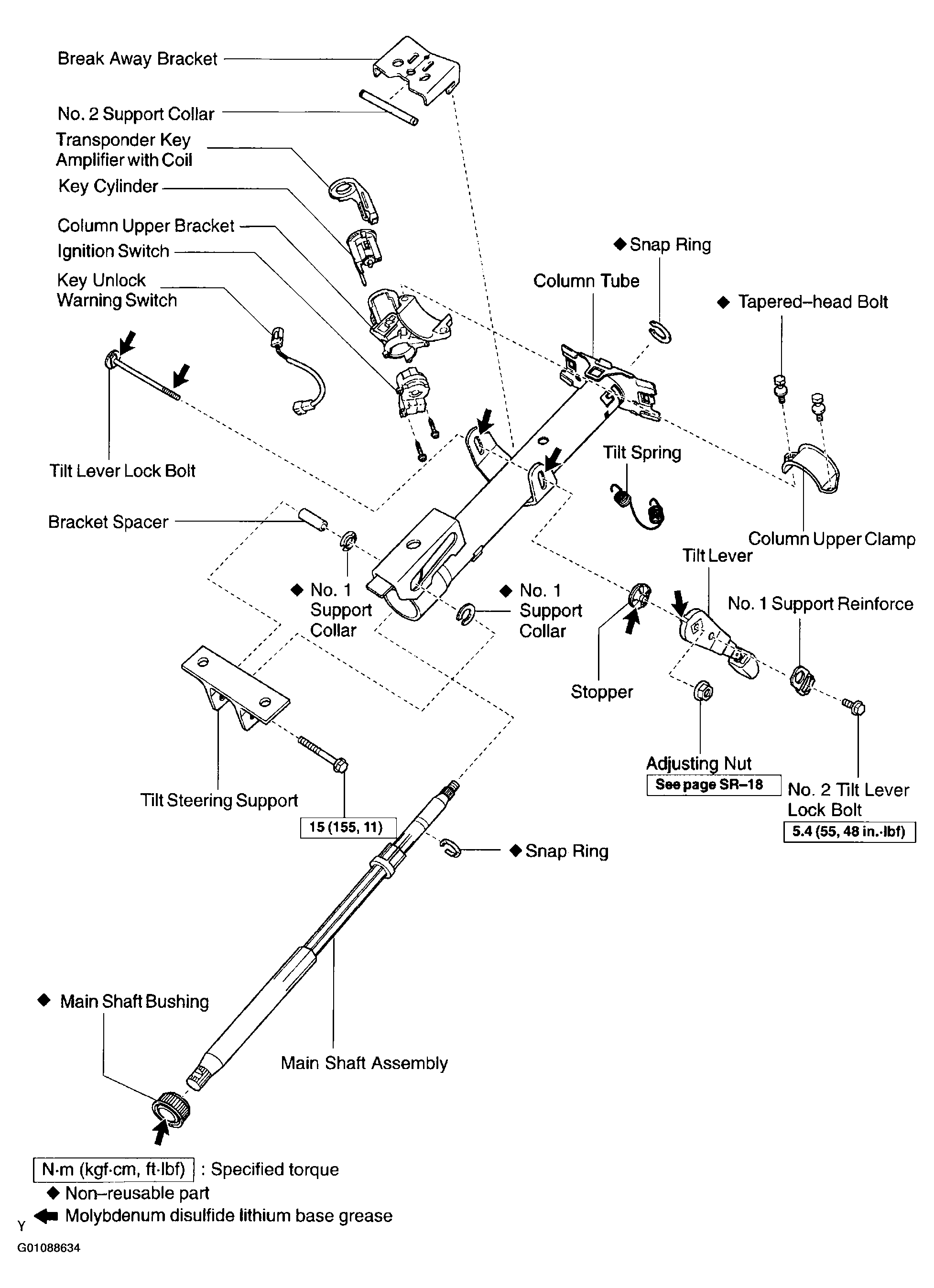

Fig 2: Identifying Internal Column Components
G01088634Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
