Power Steering Vane Pump: Components

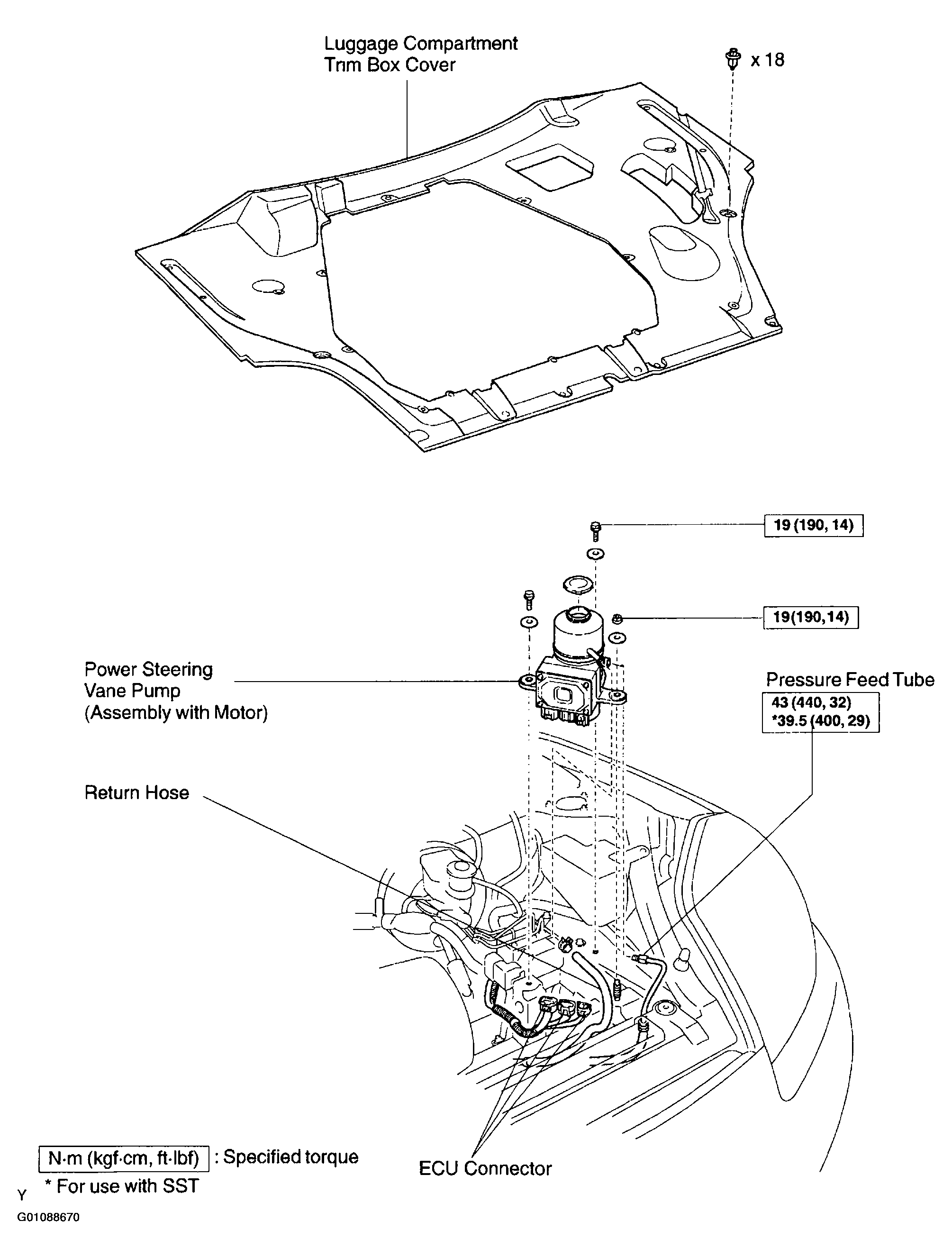

Fig 1: Locating Power Steering Vane Pump
G01088670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

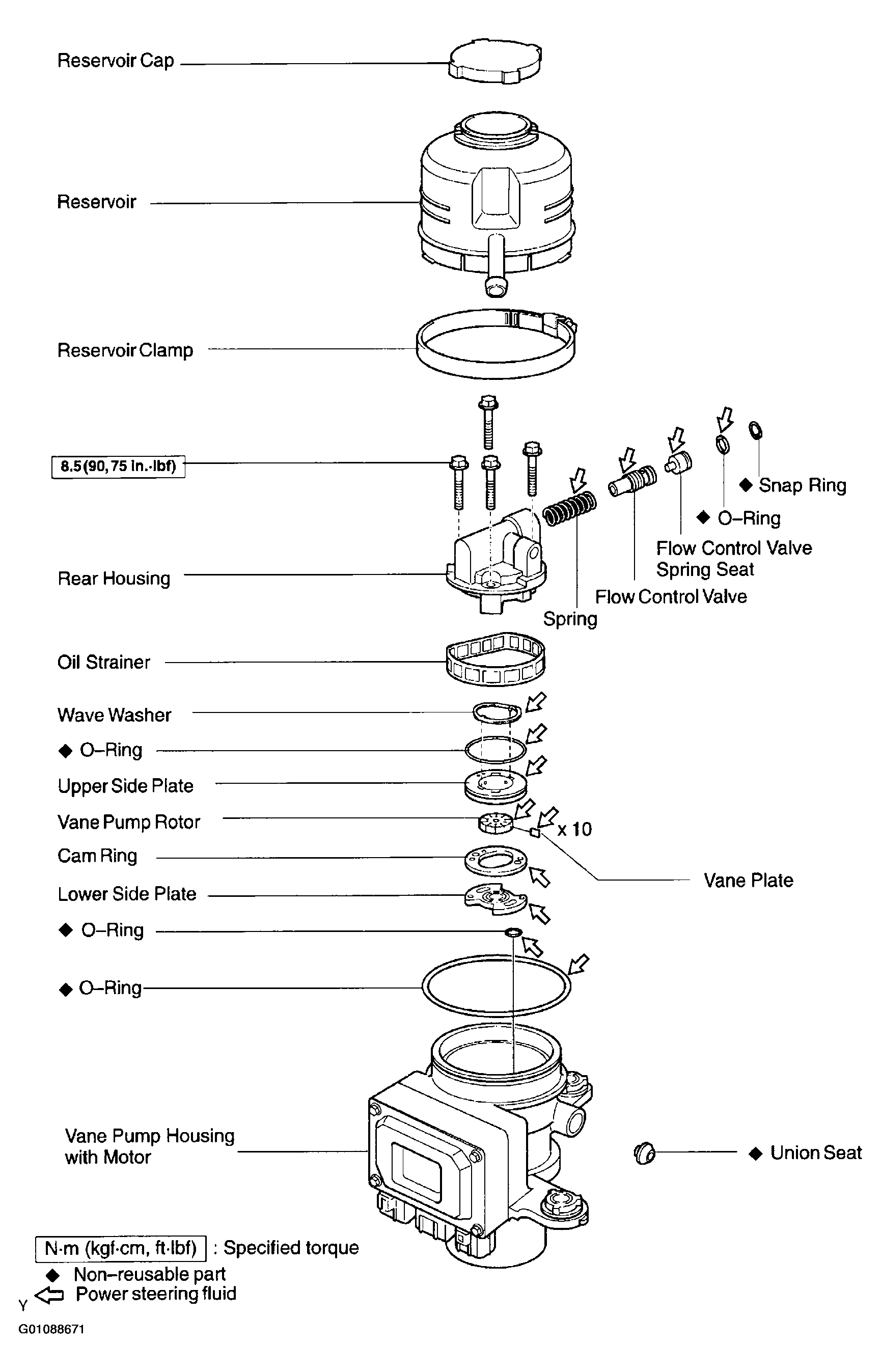

Fig 2: Identifying Power Steering Vane Pump Components
G01088671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
