Oil Pump: Removal

1. DRAIN ENGINE OIL
2. REMOVE TIMING CHAIN AND CRANKSHAFT TIMING SPROCKET  . See REMOVAL .
3. REMOVE OIL PUMP

Remove the 5 bolts, oil pump and gasket.

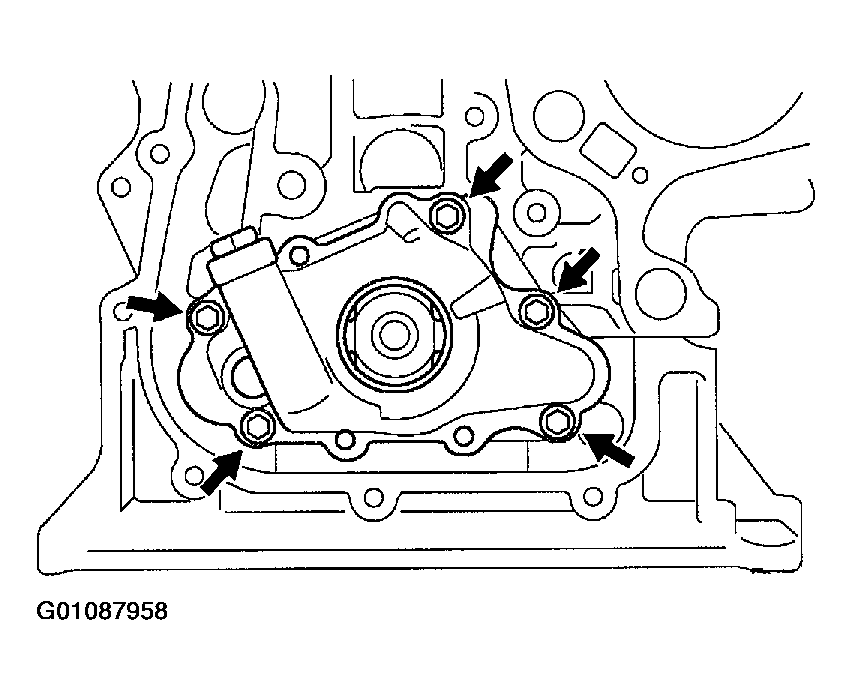

Fig 1: Removing Oil Pump

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
