Door Unlock Detection Switch Circuit: Wiring Diagram

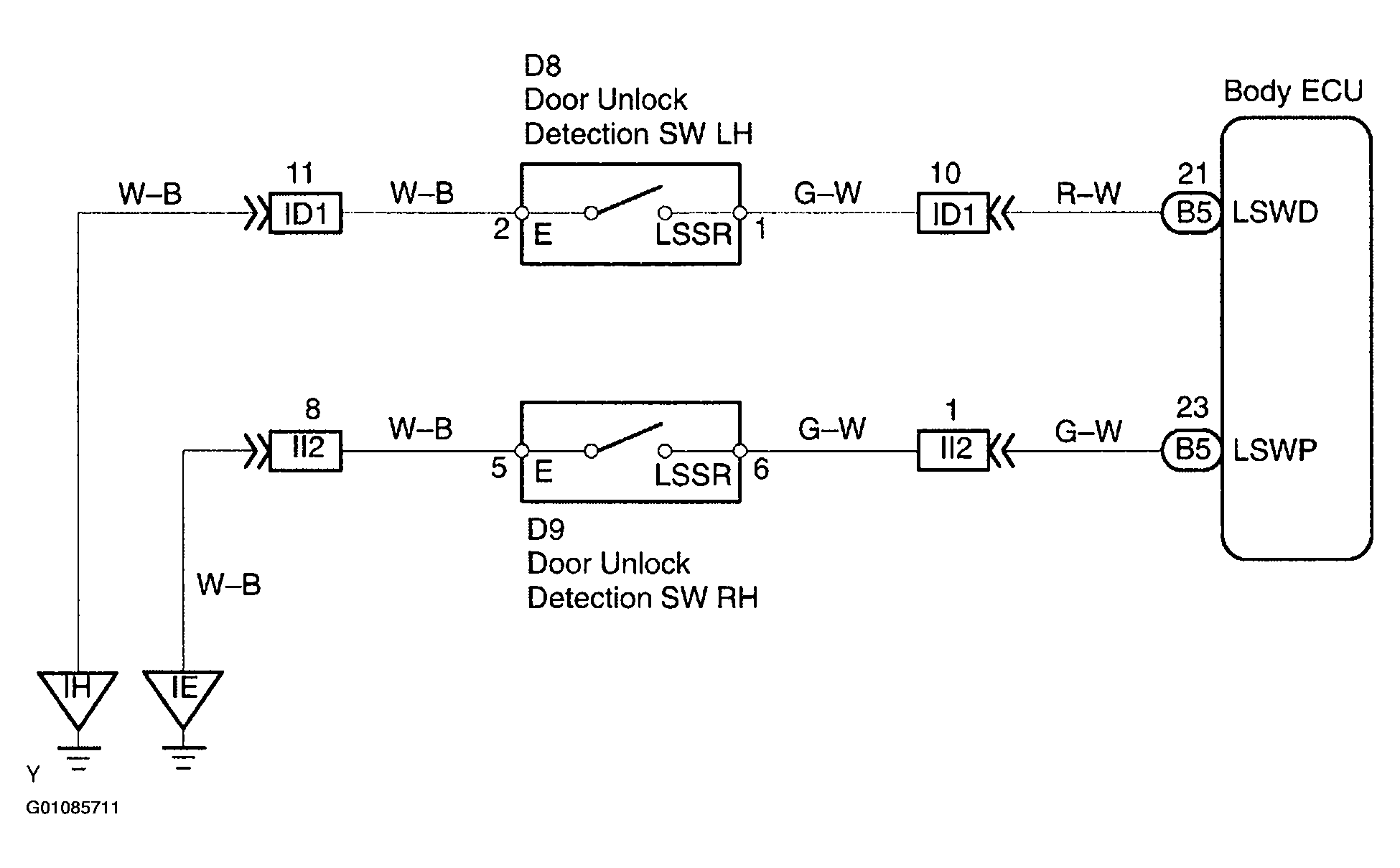

Fig 1: Displaying Door Unlock Detection Switch Circuit

G01085711

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
