Water Pump: Components

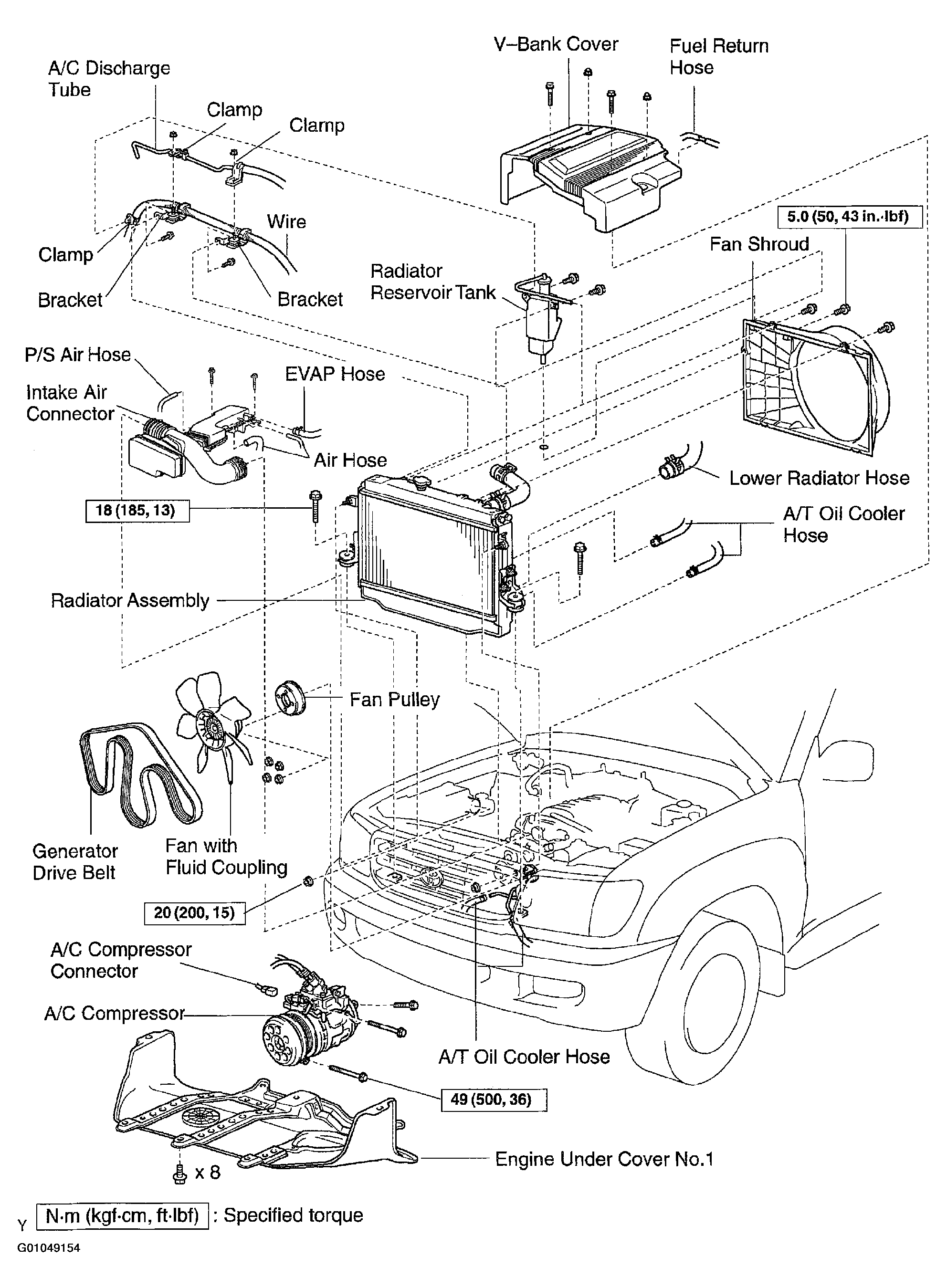

Fig 1: Identifying Components For Water Pump Removal (1 Of 3)
G01049154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

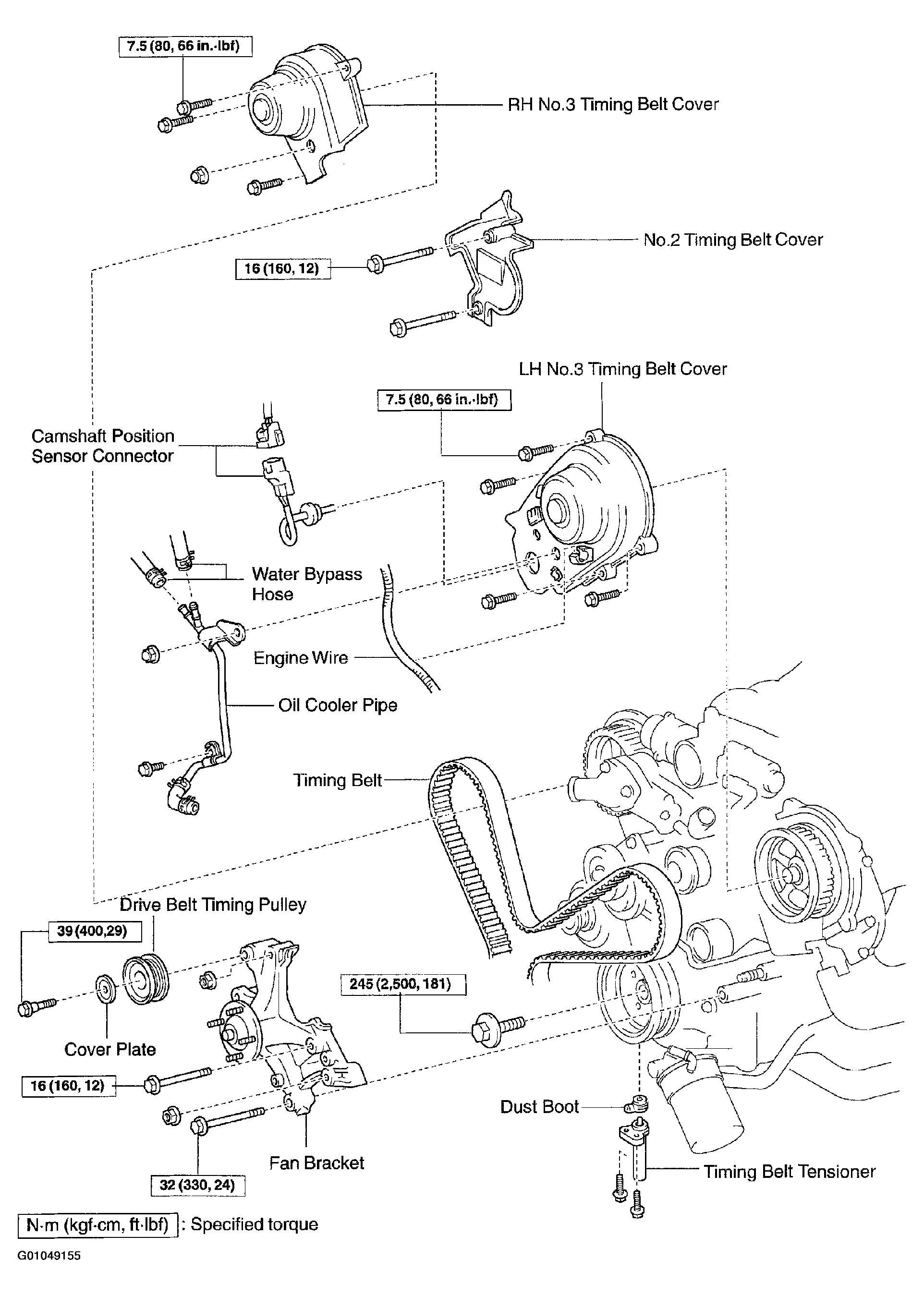

Fig 2: Identifying Components For Water Pump Removal (2 Of 3)
G01049155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

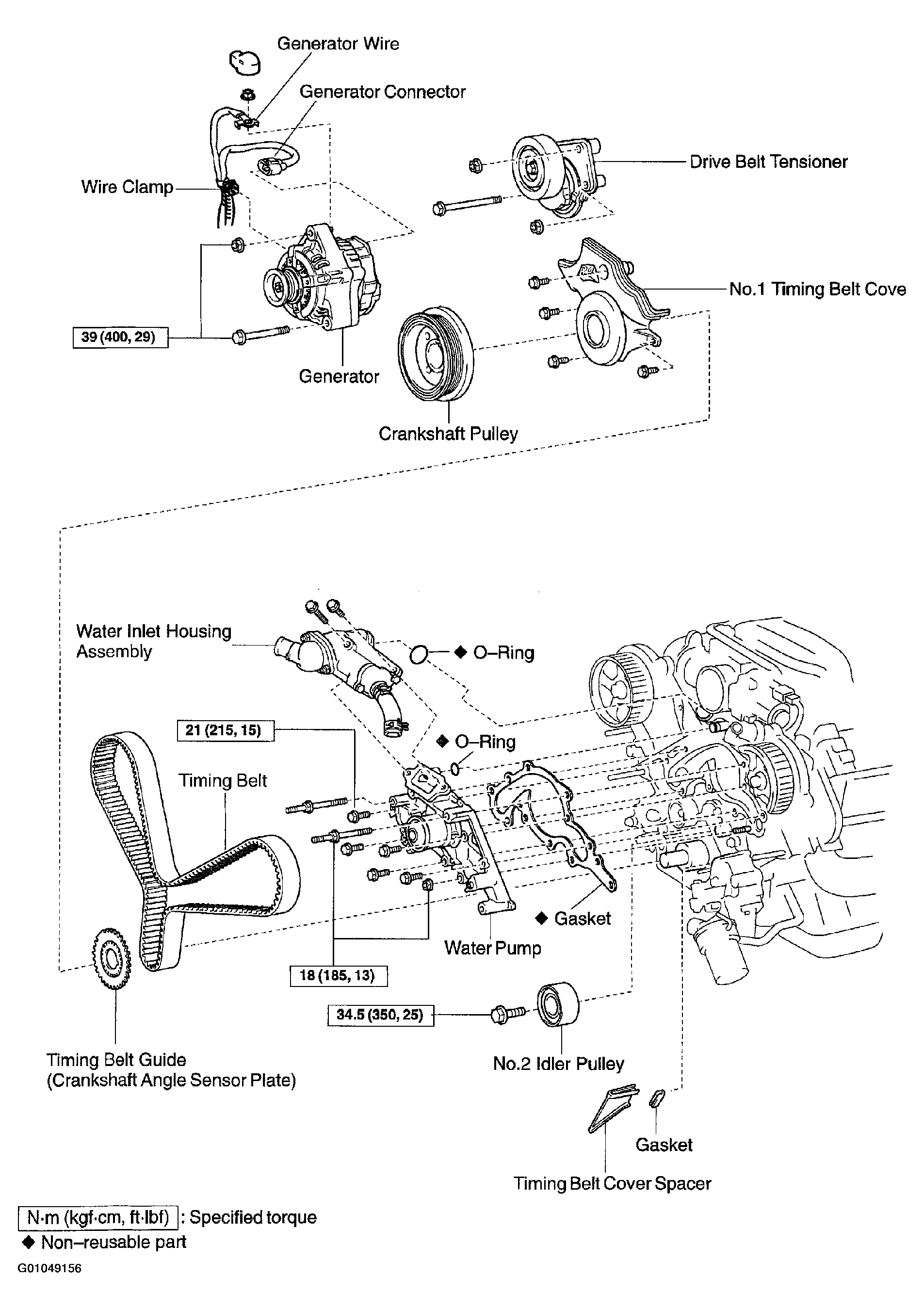

Fig 3: Identifying Components For Water Pump Removal (3 Of 3)
G01049156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
