Home >> Toyota >> 2002 >> Land Cruiser >> Repair and Diagnosis >> Engine Mechanical >> Cooling System (Mechanical) >> Engine Cooling System >> Radiator >> Components

Engine Cooling System: Radiator: Components

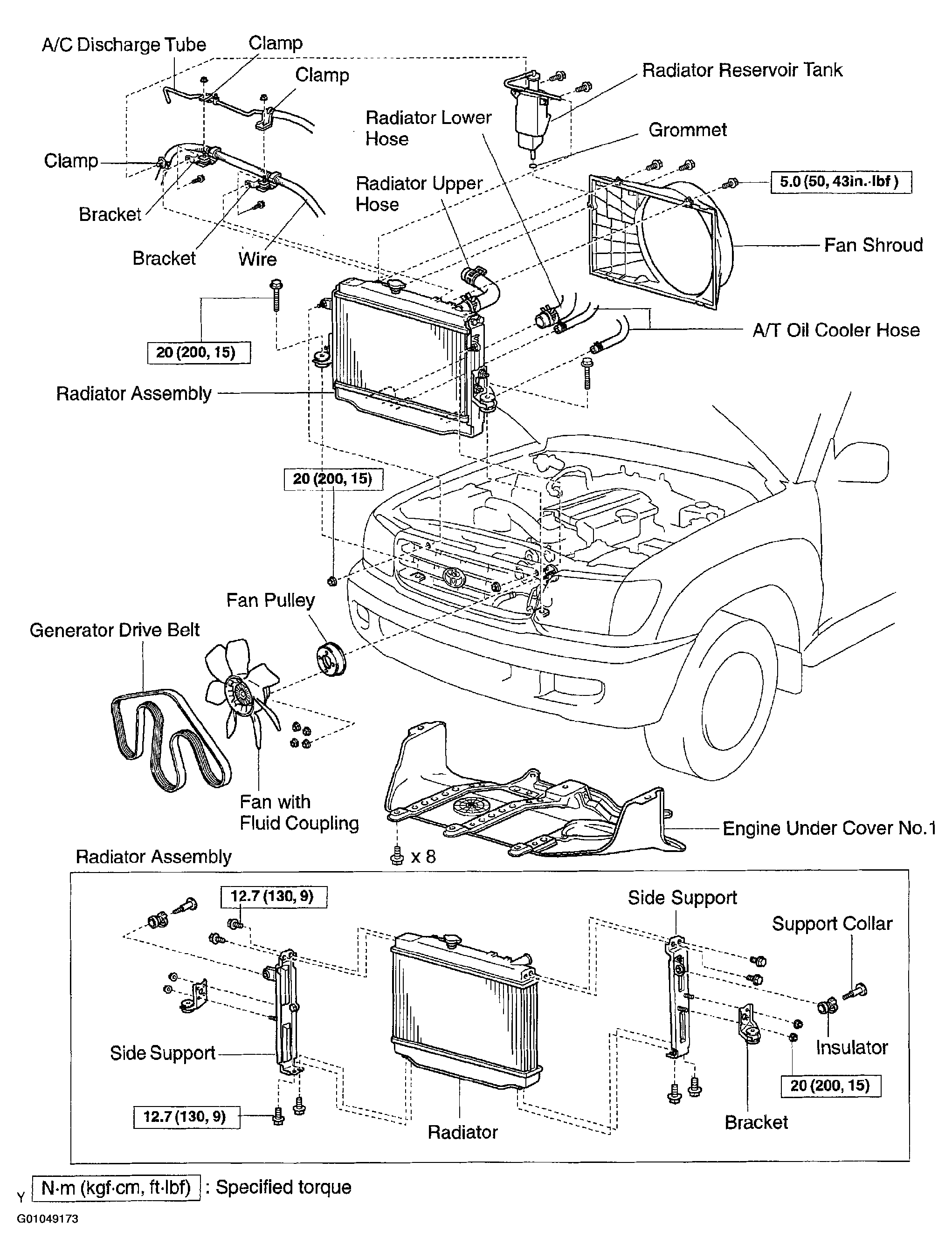

Fig 1: Identifying Components For Radiator Removal

G01049173

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
