Rear Speed Sensor: Components

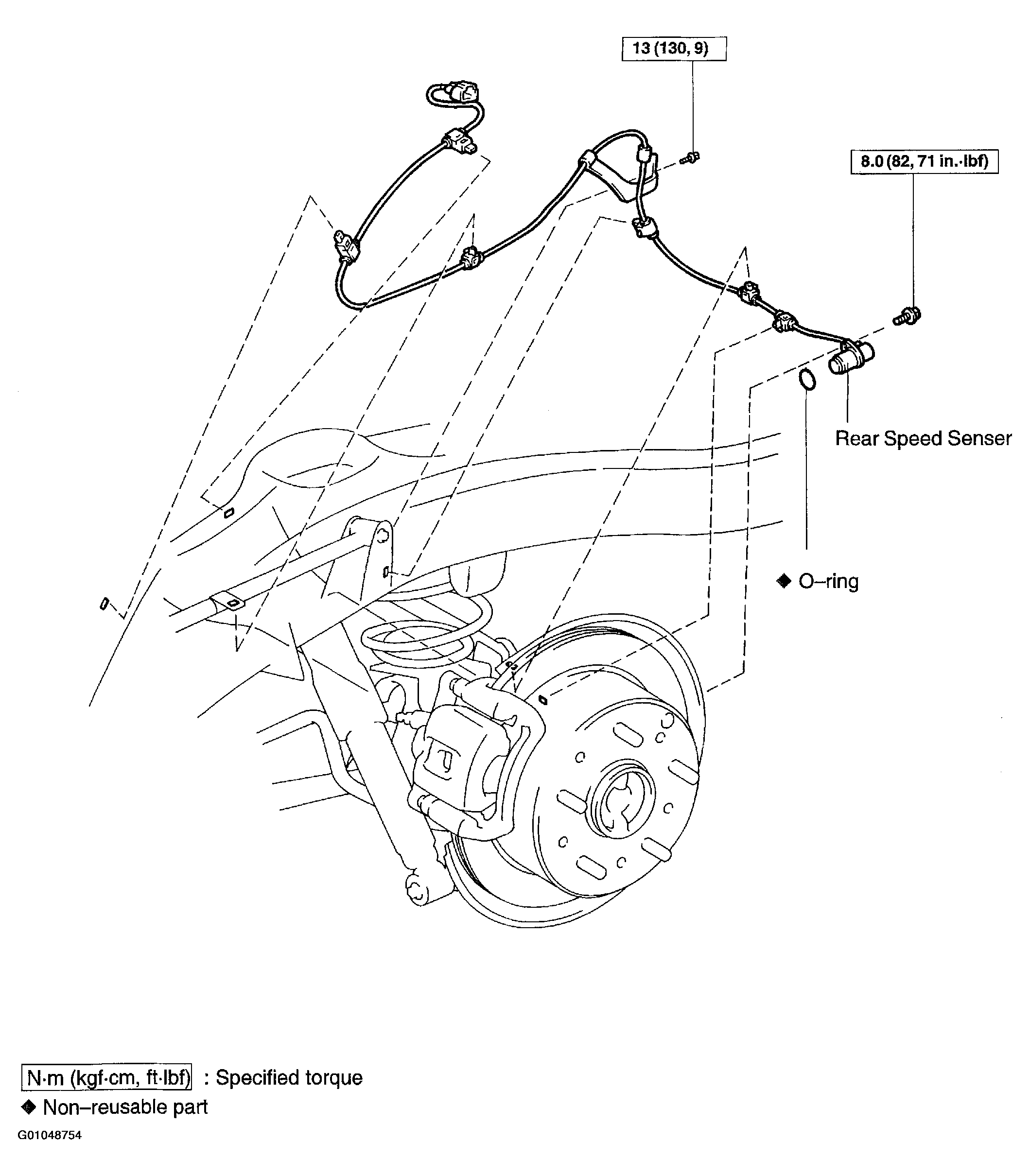

Fig 1: Identifying Rear Speed Sensor Components

G01048754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
