Speed Sensor Rear LH (4WD): Replacement

NOTE: Replace the RH side by the same procedure with LH side.

Remove rear wheel .
Remove rear door scuff plate outside LH .
Remove rear floor finish plate .
Remove deck trim side panel assy LH .
Remove speed sensor rear LH .
1. Disconnect the speed sensor connector, and pull out the sensor wire harness with grommet.

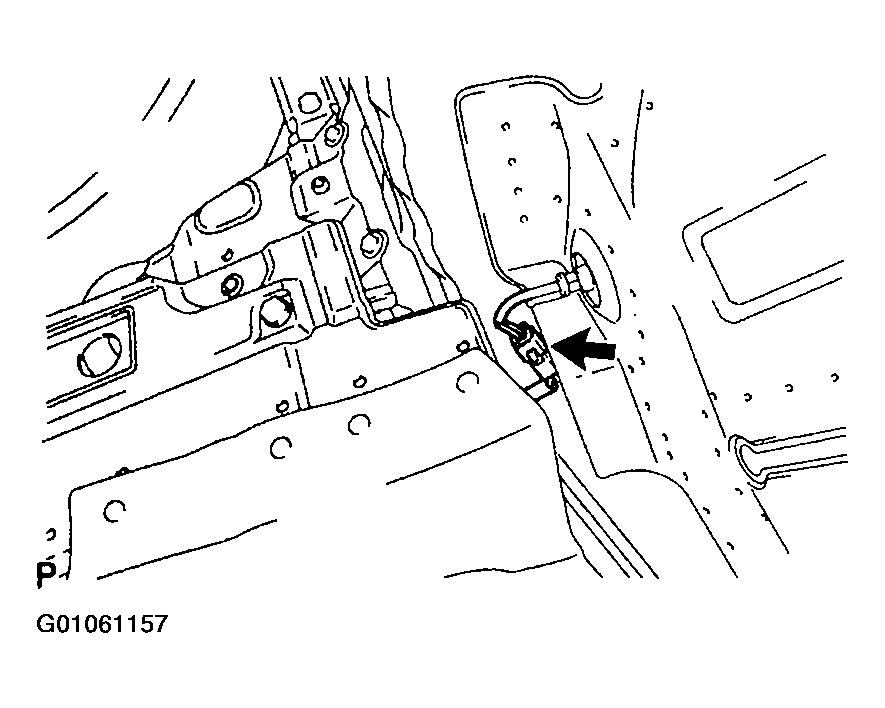

  Fig 1: Locating Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 clamp bolts holding the sensor harness from the body and shock absorber.

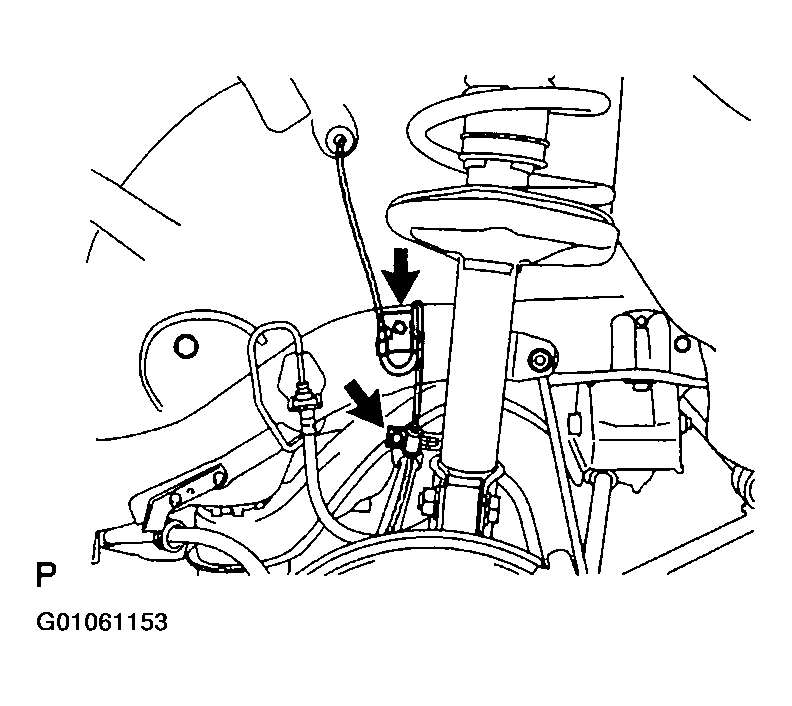

  Fig 2: Removing Clamps Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the bolt and speed sensor rear LH.

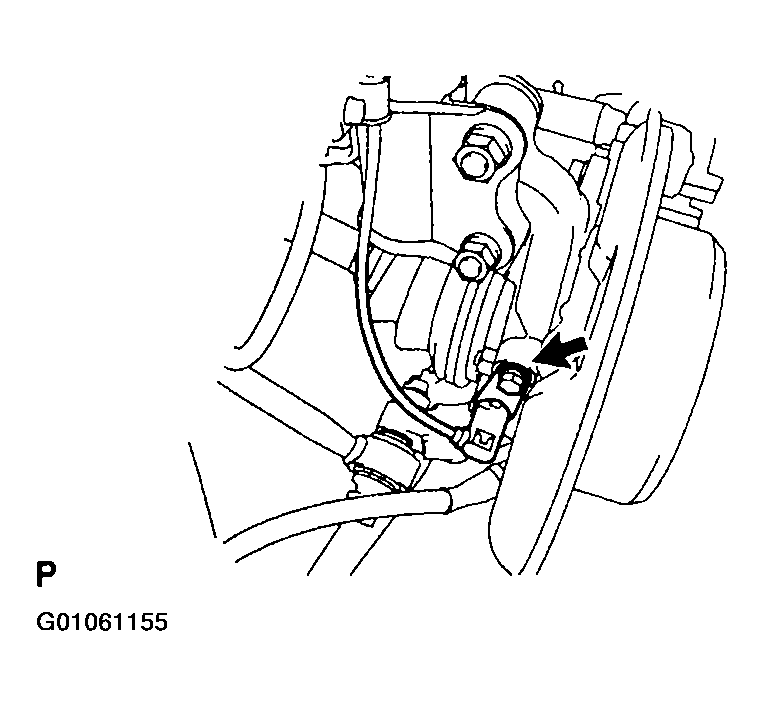

  Fig 3: Removing Bolts & Speed Sensor Rear LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Do not stick and foreign matter on the sensor tip.
Install speed sensor rear LH .
1. Install the speed sensor rear LH with the bolt.

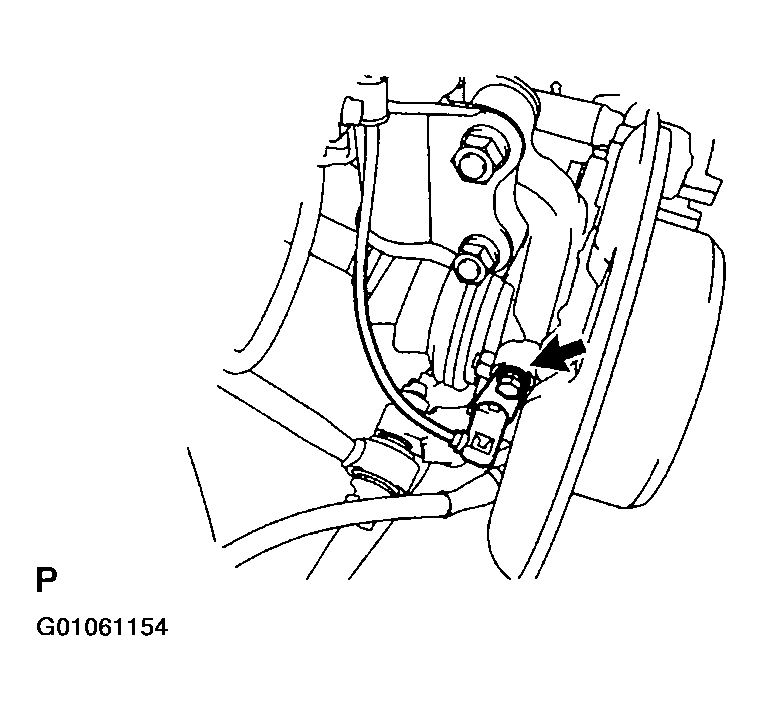

  Fig 4: Installing Speed Sensor Rear LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 20 N.m (205 kgf.cm, 15 ft.lbf)

  NOTE: Do not stick and foreign matter on the sensor tip.
2. Install the sensor harness clamps with the 2 bolts to the body and shock absorber.

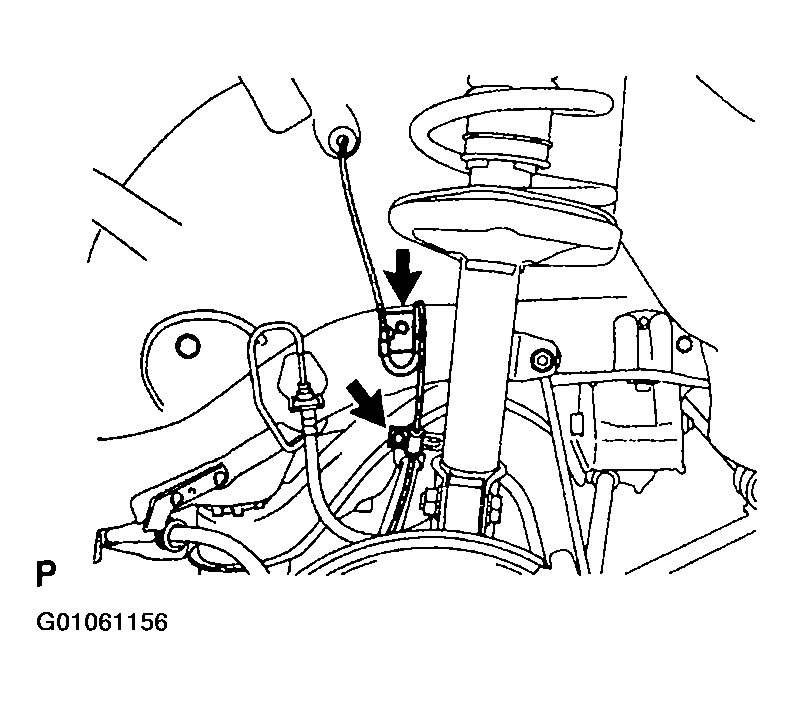

  Fig 5: Installing Sensor Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
3. Push in the sensor wire harness with grommet and connect the speed sensor connector.

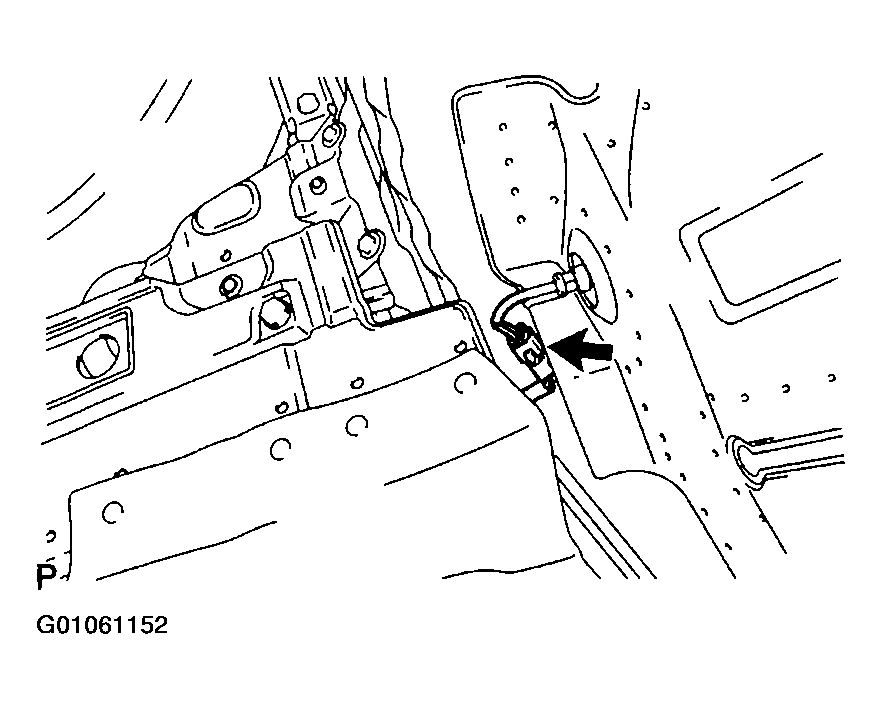

  Fig 6: Connecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install deck trim side panel assy LH .
Install rear floor finish plate .
Install rear door scuff plate outside LH .
Install rear wheel .
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
Check ABS speed sensor signal (see PRE-CHECK ) .
