Passive Mode Programming Procedure (EL003-02)
WARNING: This page is about the Highlander Base, 2.4 D, AWD, which is a different variant/trim than selected.
Publication date: 2002-03-15Reference number: EL003-02

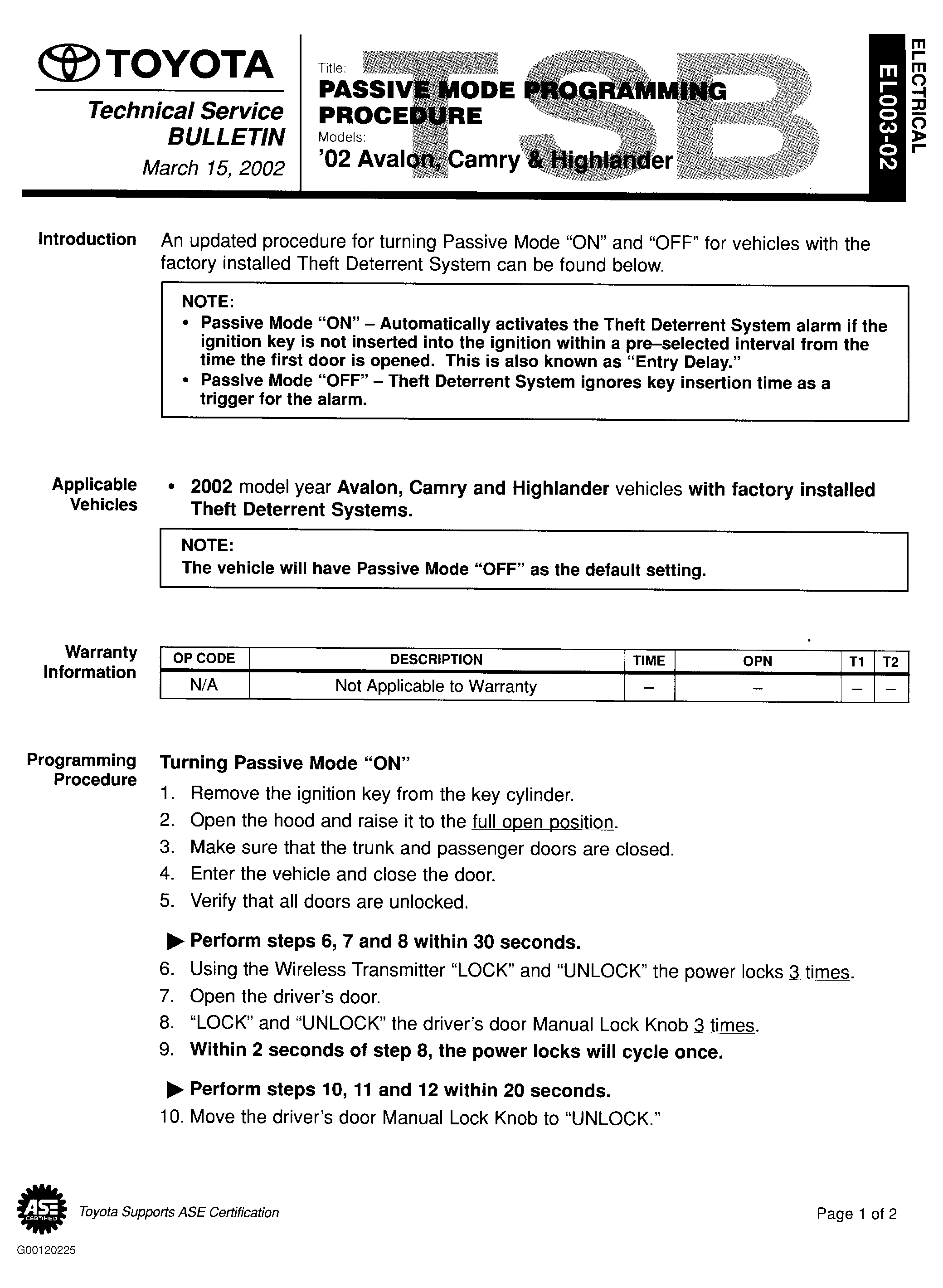

PASSIVE MODE PROGRAMMING PROCEDURE
TECHNICAL SERVICE BULLETIN
Reference Number(s): EL003-02, Date of Issue:
March 15, 2002
| TOYOTA: | 2002 Avalon, Camry, Highlander |
| GROUP: | Electrical |
| COPYRIGHT: | © 2018 Toyota, USA License Agreement TMS1002 |
DESCRIPTION

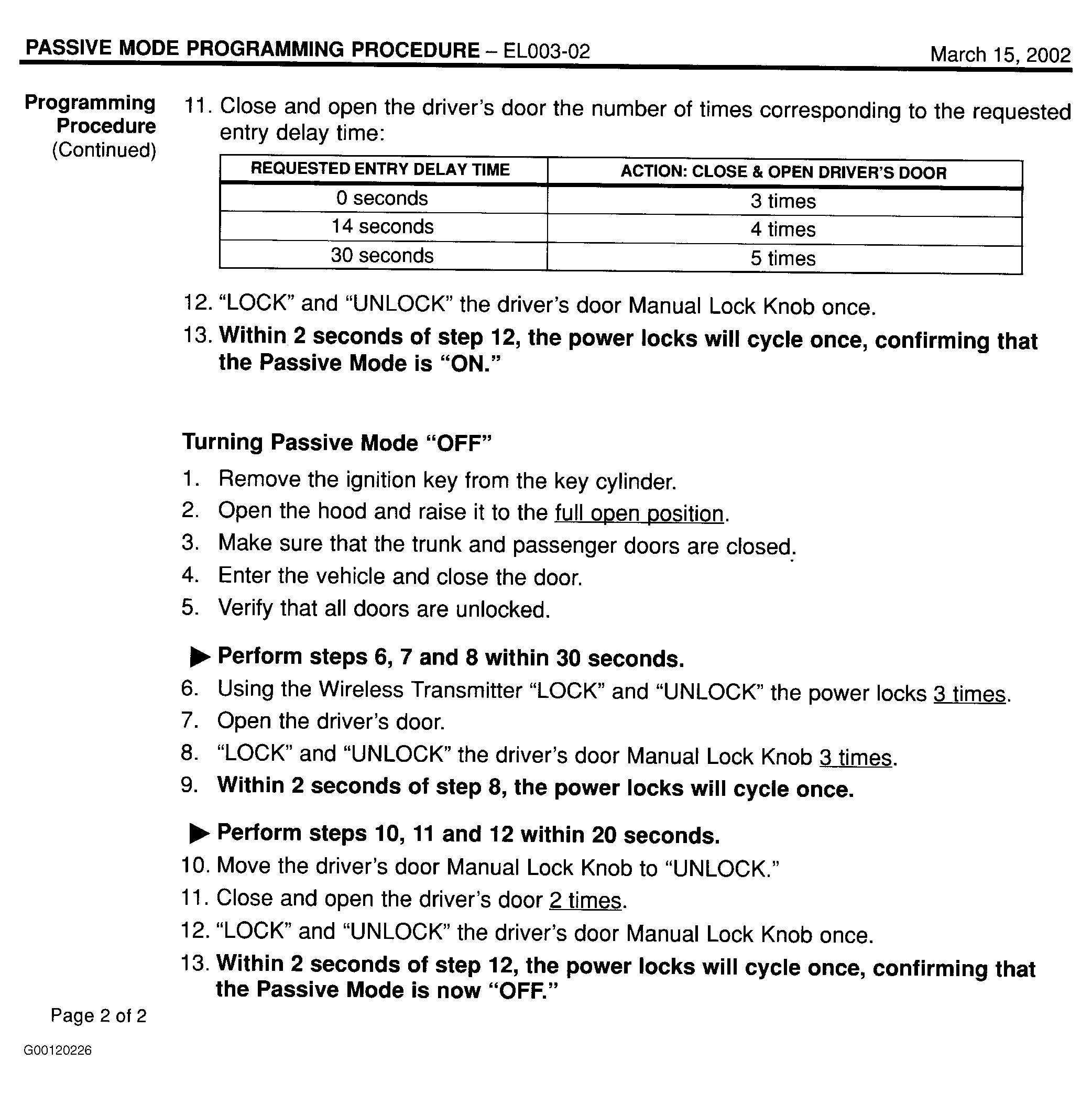

PASSIVE MODE PROGRAMMING PROCEDURE
An updated procedure for turning Passive Mode "ON" and "OFF" for vehicles with the factory installed Theft Deterrent System can be found below.
