Terminals Of Ecu

  1. Power Window Master Switch (Door ECU)

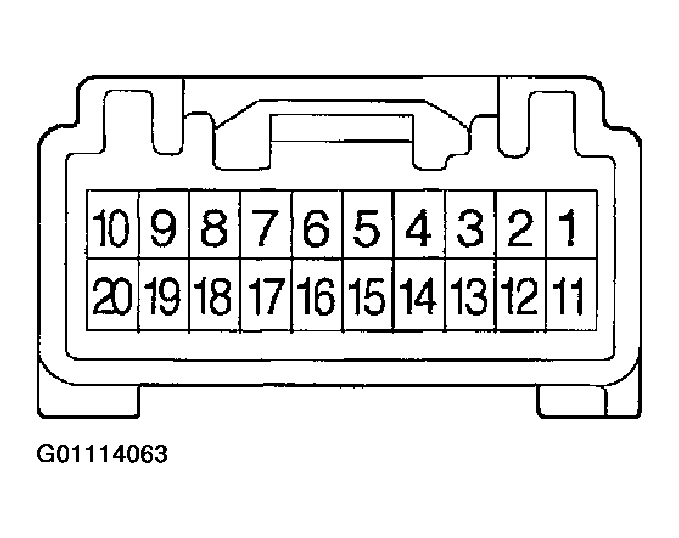

    Fig 1: Identifying Power Window Master Switch Connector Terminals
    G01114063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the master switch connector.

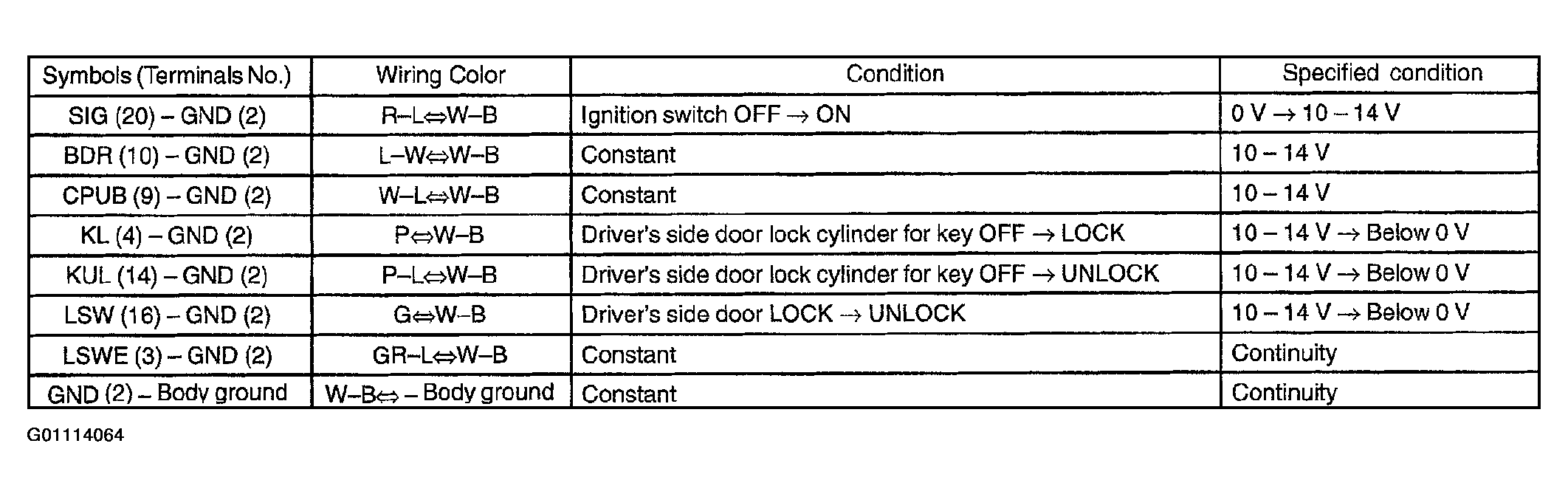

    Fig 2: Identifying Power Window Master Switch Terminal Specifications
    G01114064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Body ECU

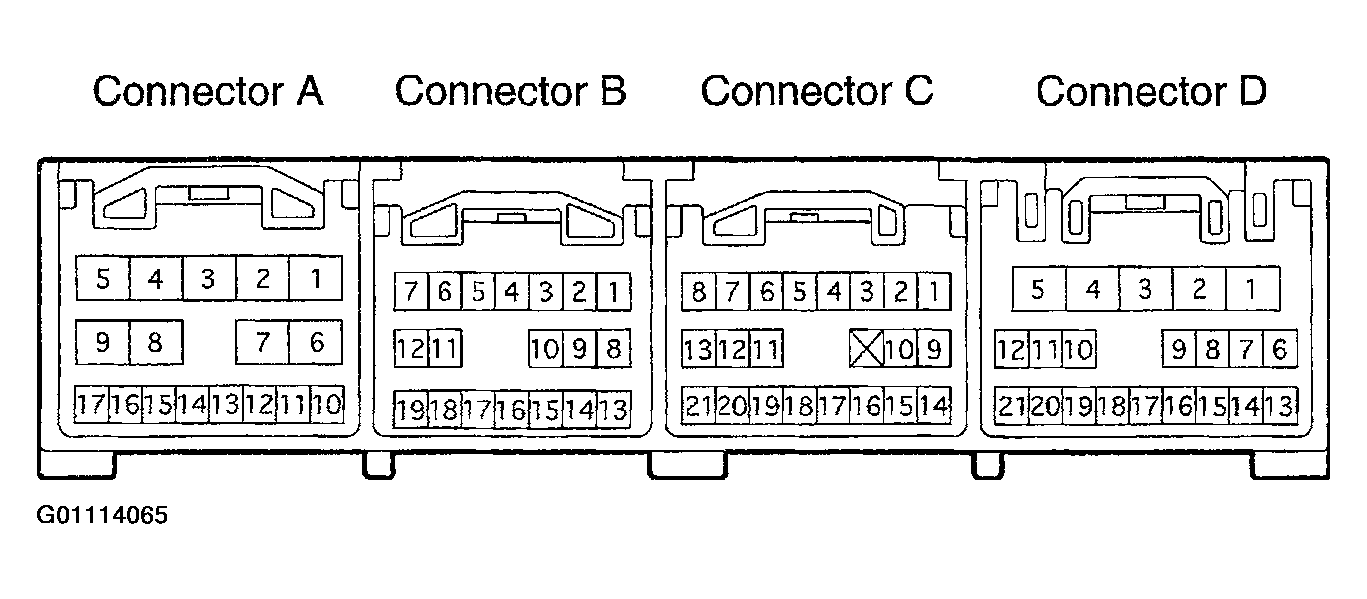

    Fig 3: Identifying Body ECU Connector Terminals
    G01114065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the body ECU connectors A, C and D.

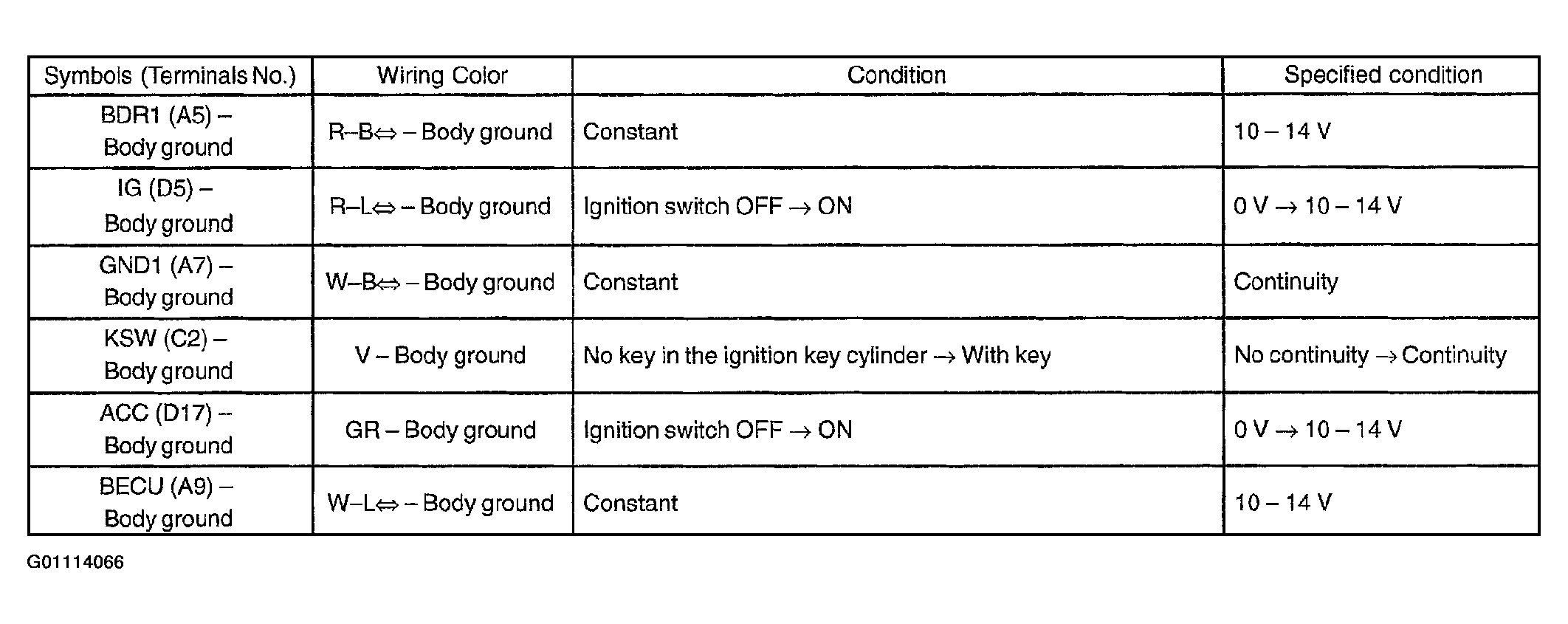

      Fig 4: Identifying Body ECU Terminal Specifications (1 Of 2)
      G01114066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the body ECU connectors A, C and D.

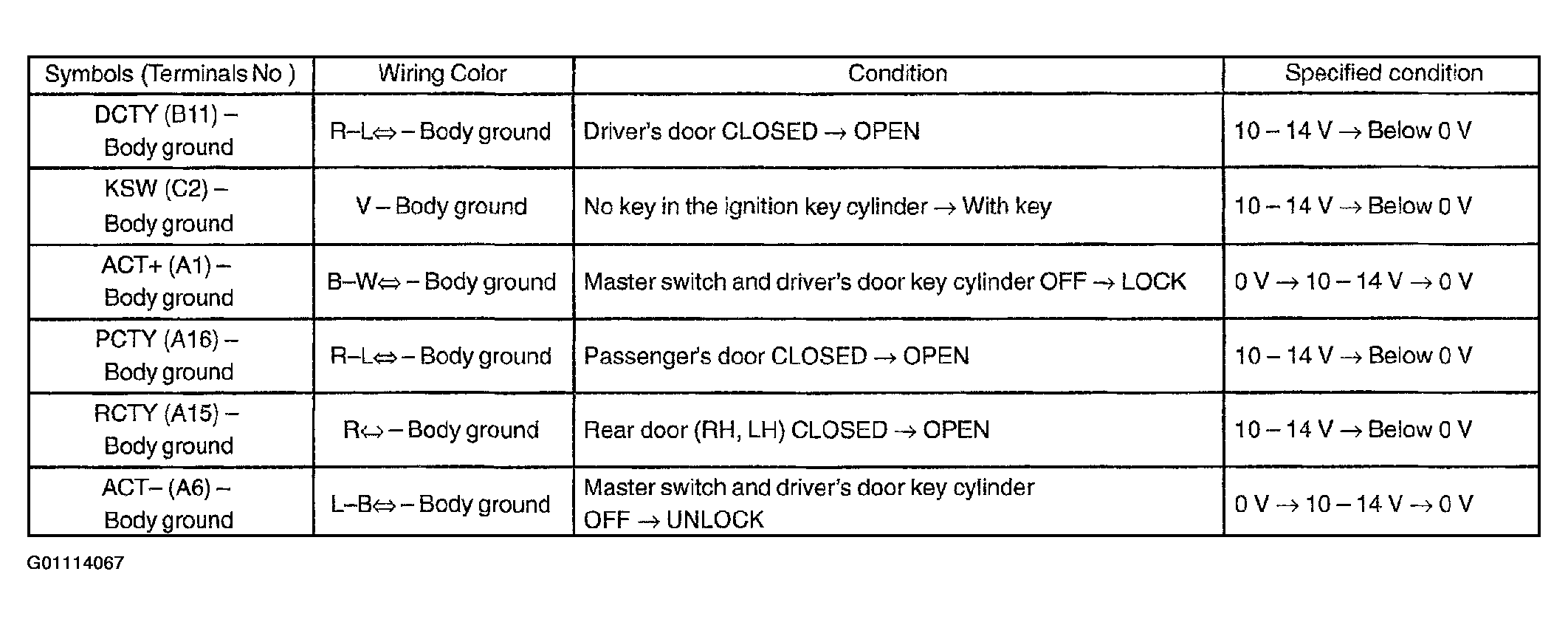

      Fig 5: Identifying Body ECU Terminal Specifications (2 Of 2)
      G01114067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
