Power Door Lock Control System - Diagnostics: Location

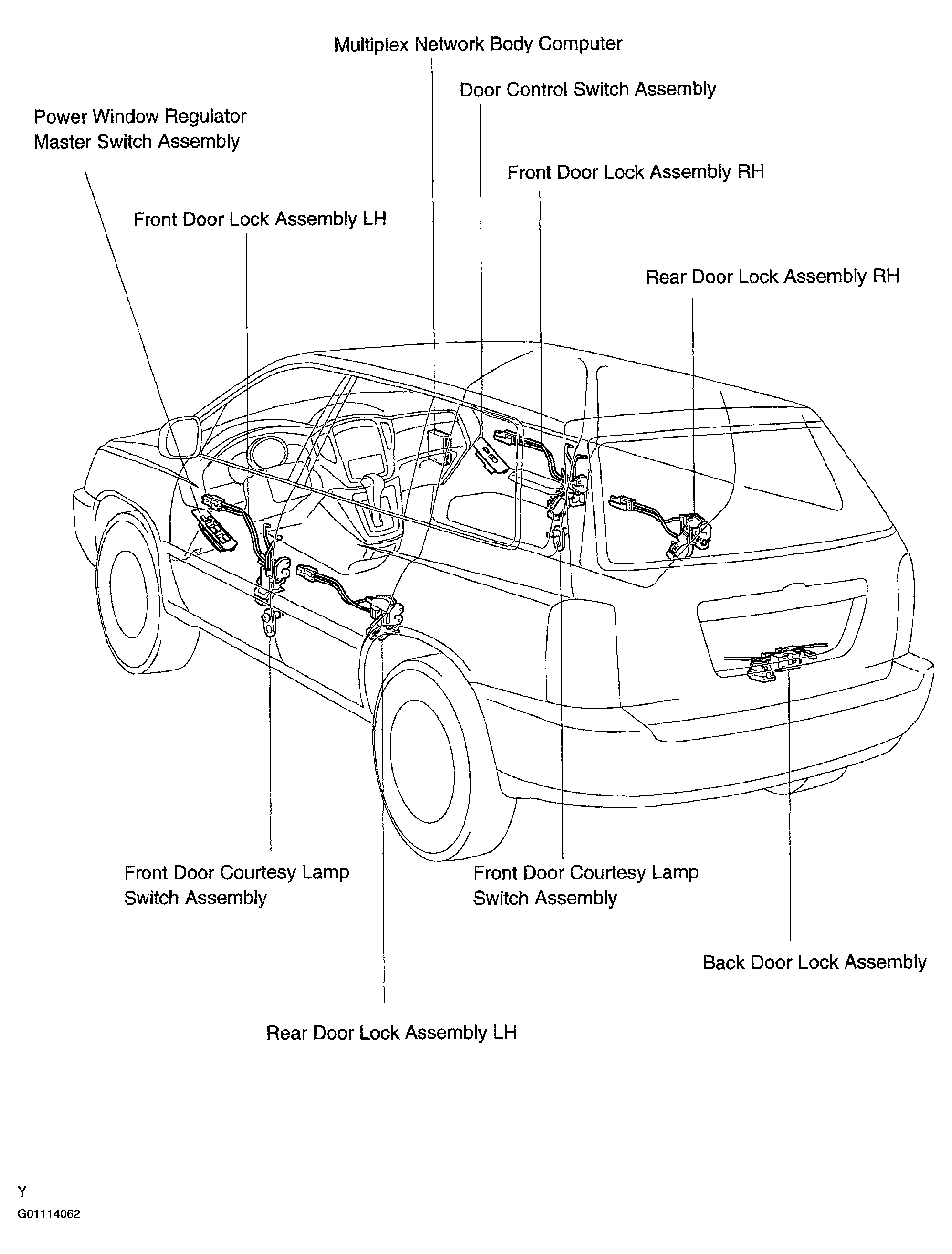

Fig 1: Locating Power Door Lock Control System Components

G01114062

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
