Diagnostic Trouble Code Chart

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the table below.

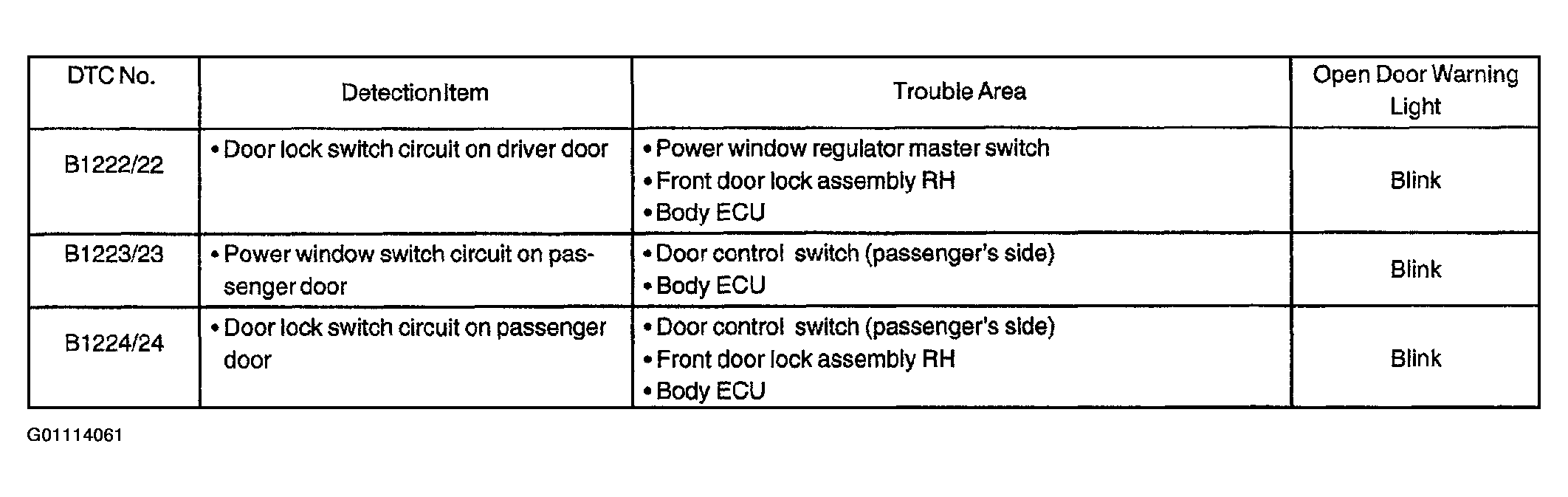

Fig 1: Identifying Power Door Lock Control System DTCs & Trouble Areas
