Cruise Control Switch Circuit

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For cruise control switch circuit testing procedure, see Fig 1-Fig 3 .

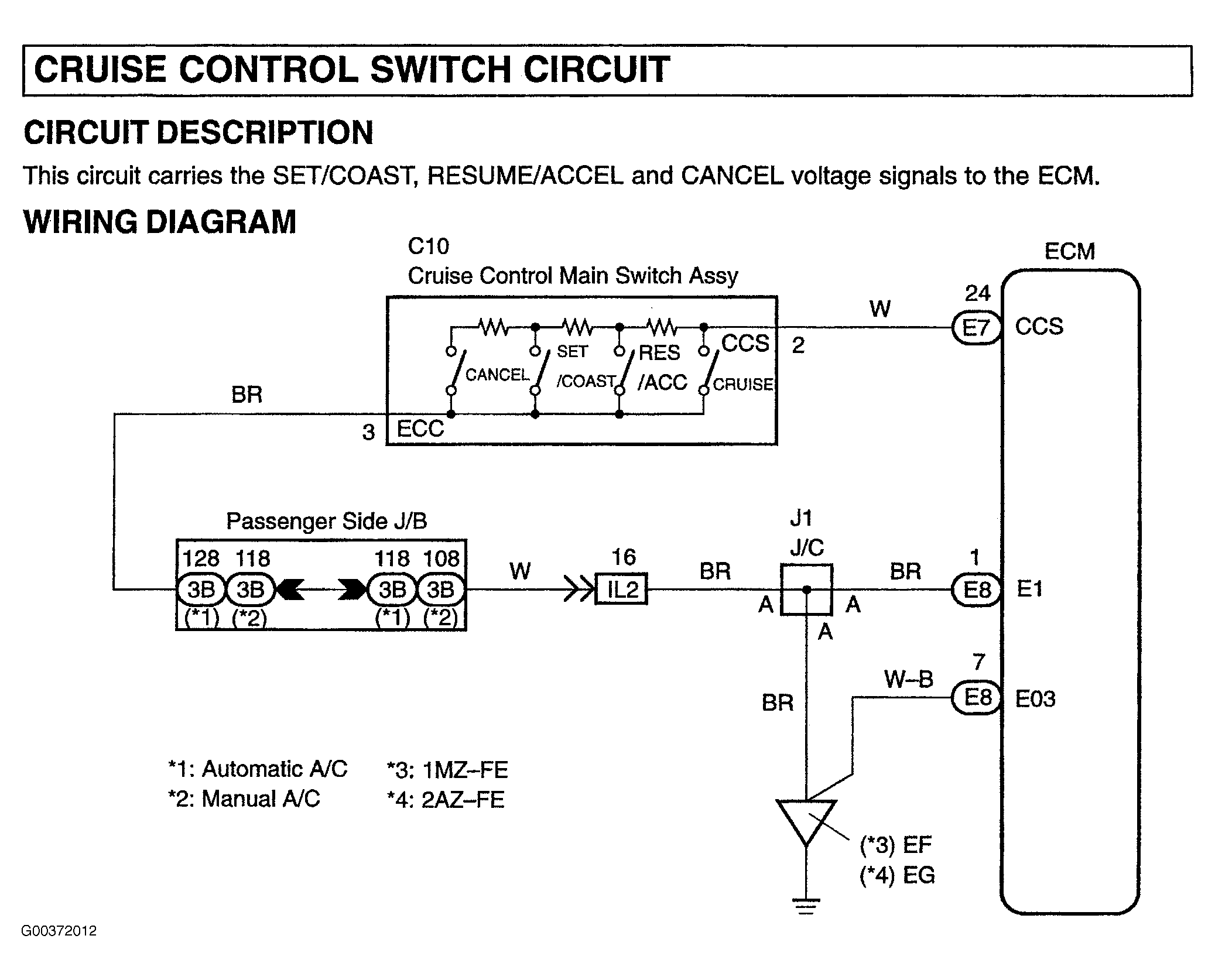

Fig 1: Testing Cruise Control Switch Circuit (1 Of 3)
G00372012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

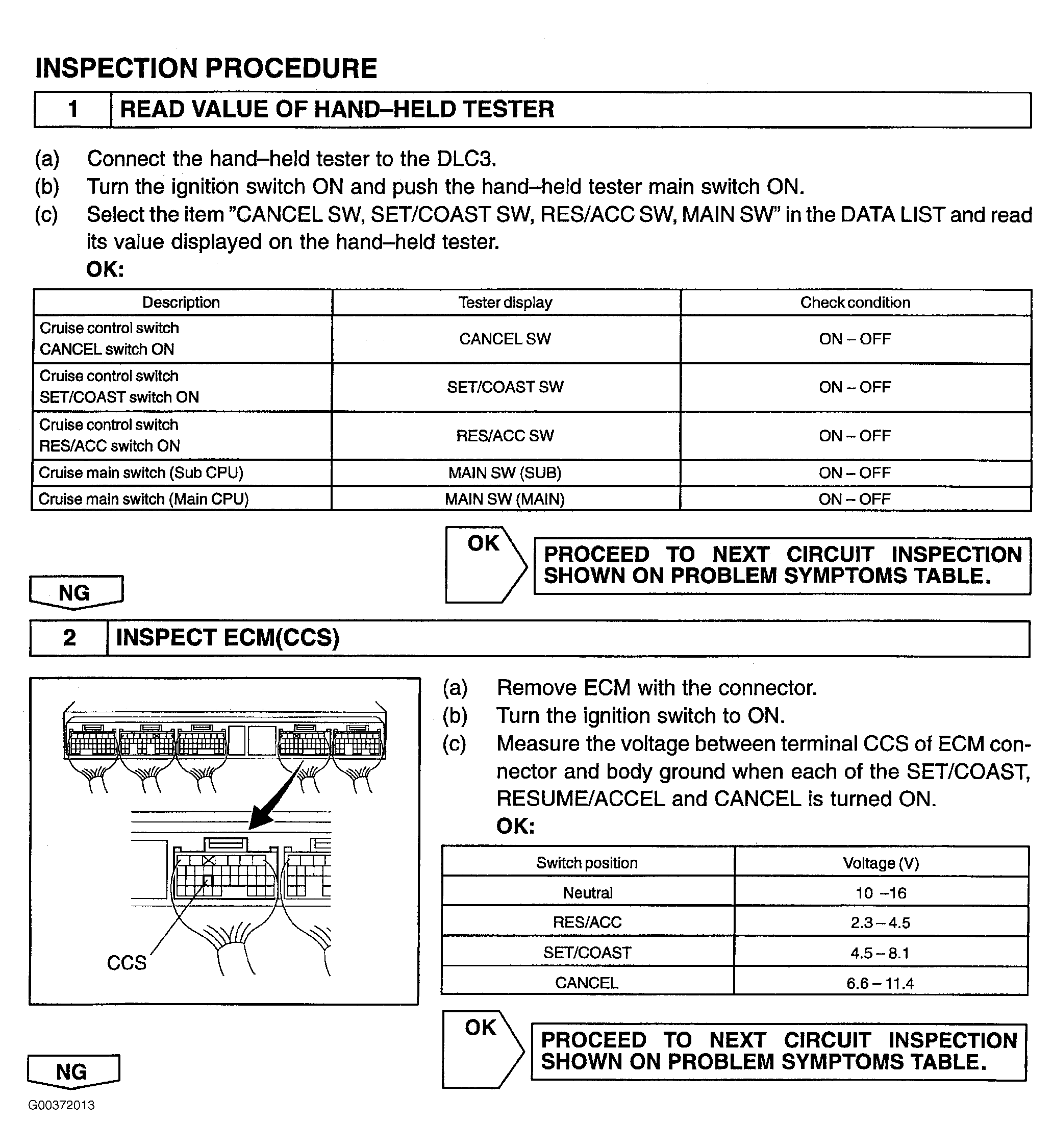

Fig 2: Testing Cruise Control Switch Circuit (2 Of 3)
G00372013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

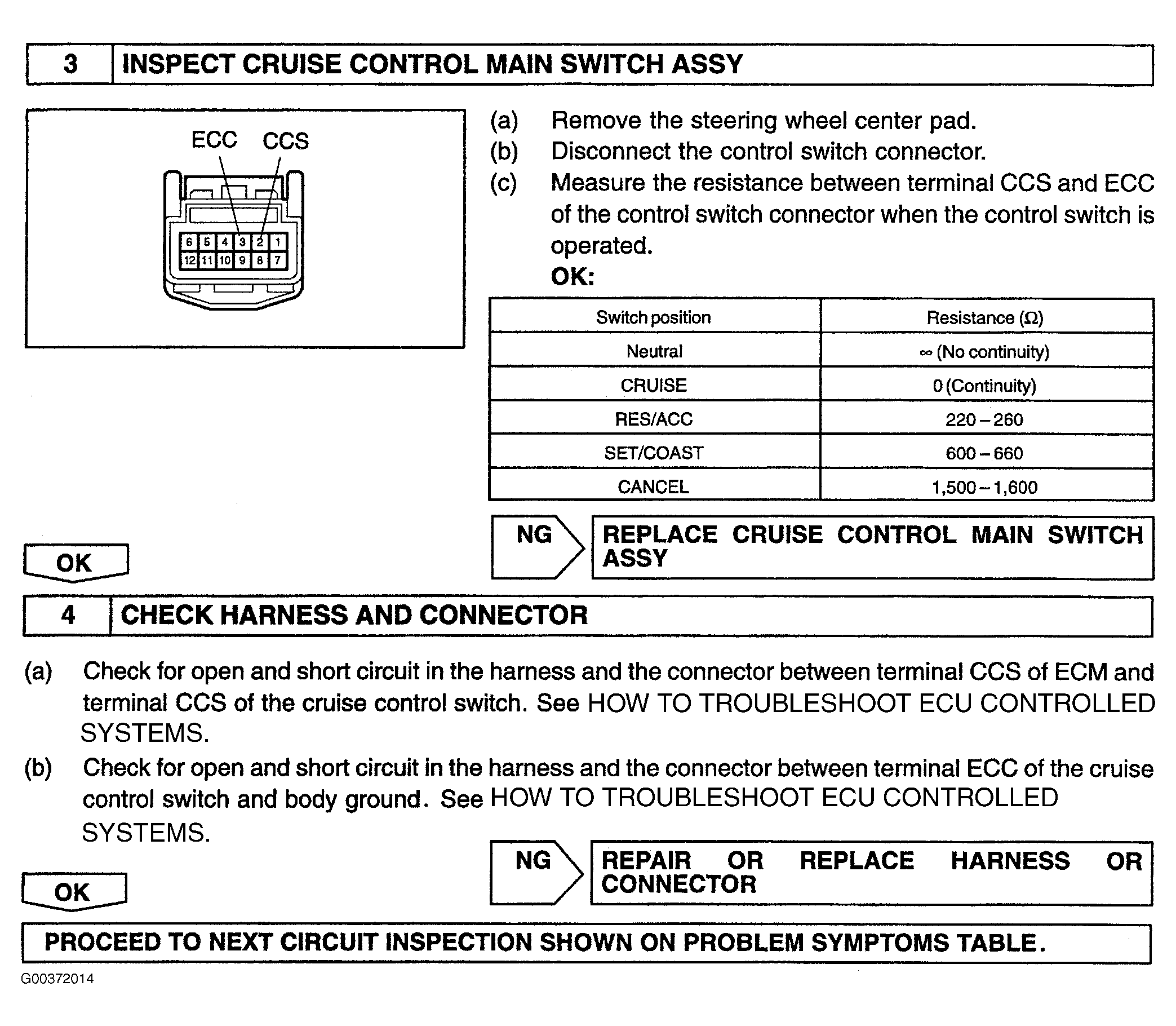

Fig 3: Testing Cruise Control Switch Circuit (3 Of 3)
G00372014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
