DTC P0607/54: Control Module Performance

WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

For DTC P0607/54 diagnosis, see Fig 1.

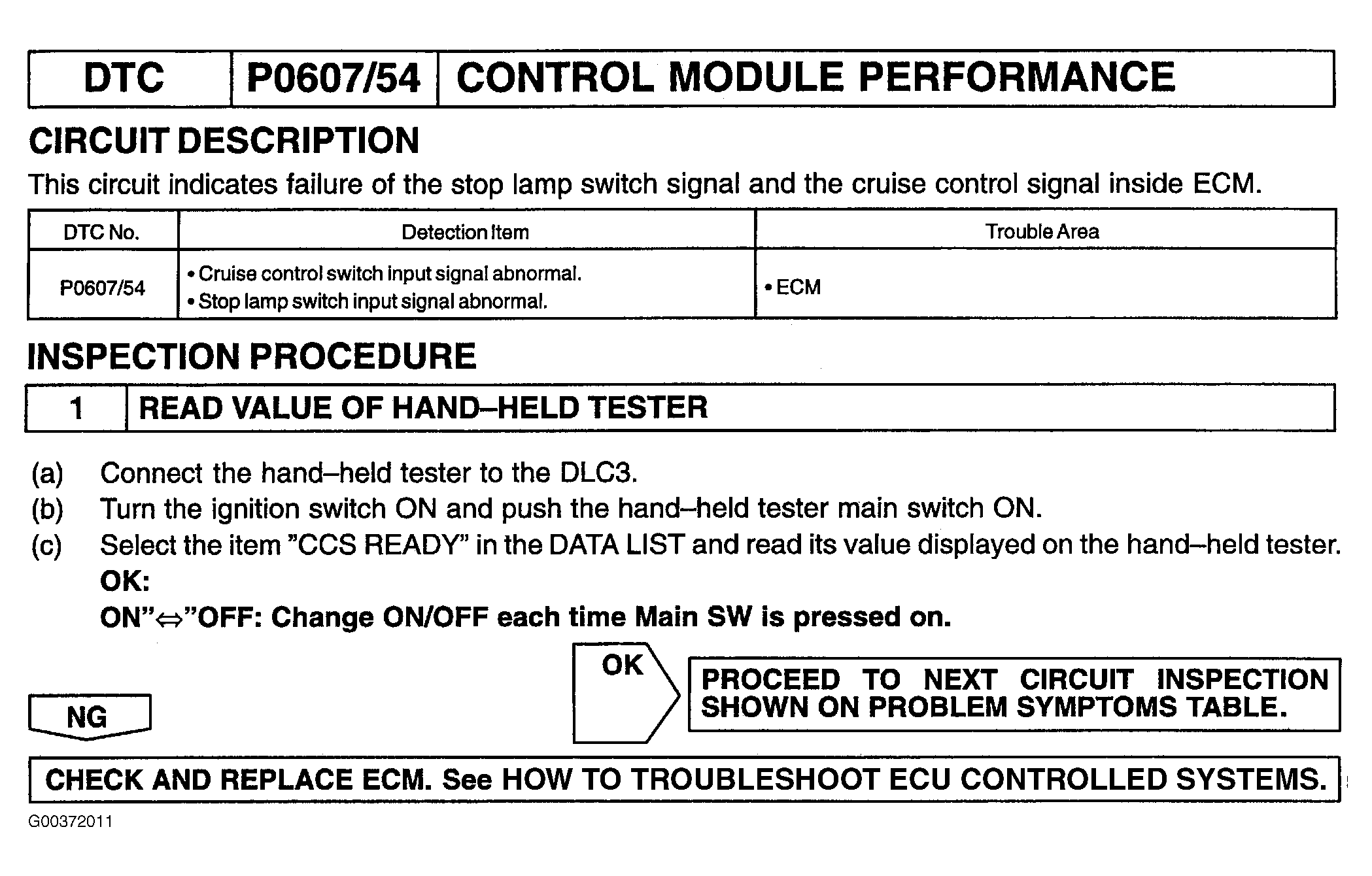

Fig 1: Diagnosing DTC P0607/54
G00372011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
